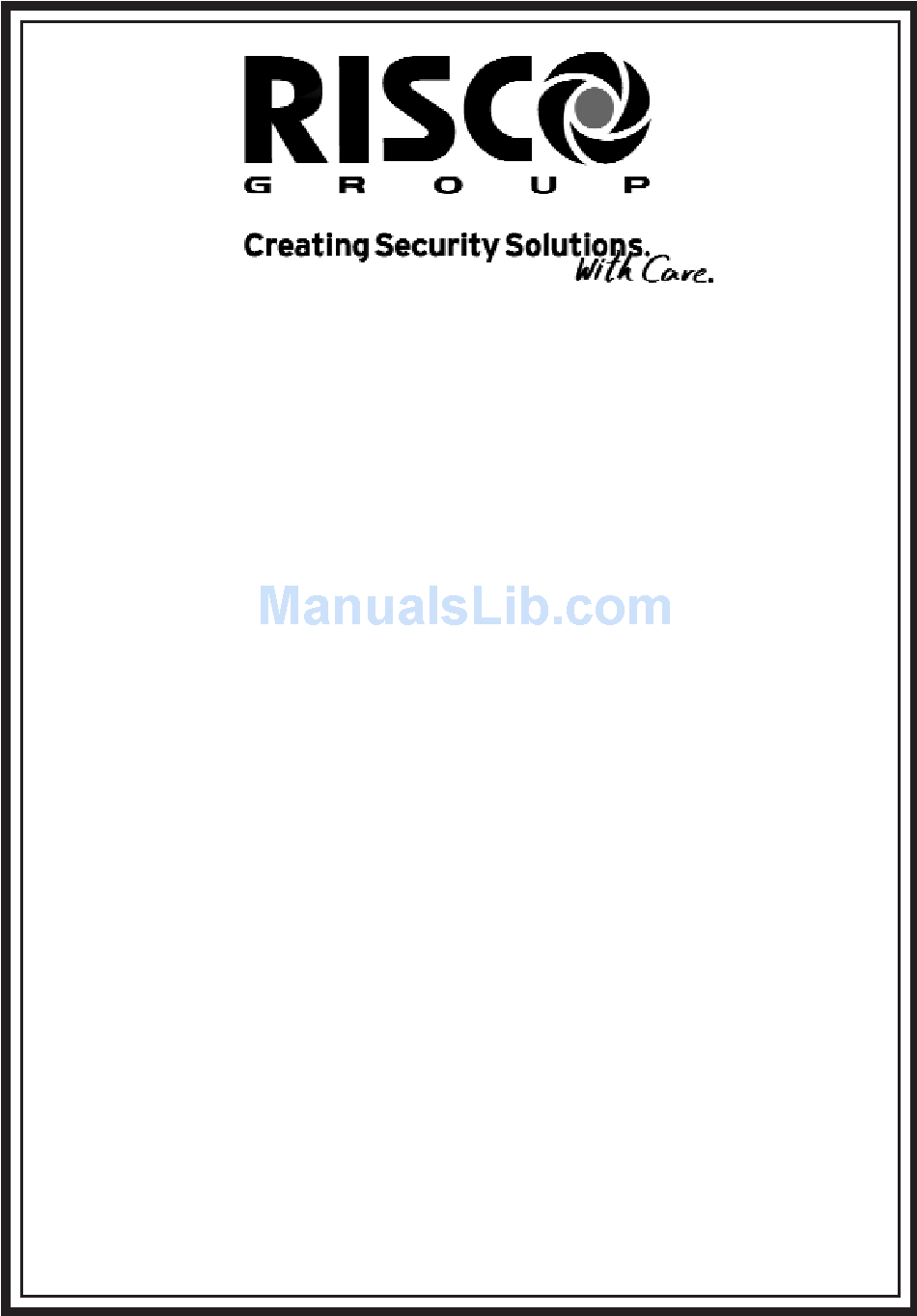

  • Page 1 User Instructions...

  • Page 2: Table Of Contents

    Contents Introduction ....... . . 1 Display Status Blanking ......2 IMPORTANT USER INFORMATION .

  • Page 3: Introduction

    Introduction Welcome to the GT480 control panel. Your installation company will have programmed your system to protect your premises to the highest possible standards. Several user programmable options are available that will be covered later in this manual. Throughout this manual reference will be made to the Master User Code.

  • Page 4: Display Status Blanking

    Display Status Blanking Depending on Control Panel installed, it may be a requirement that the Status (Set or Unset display) of the security system is not displayed. Set or Unset Status will only be displayed for ten seconds when the system is Set or Unset. The bottom line of the display will then be blanked off.

  • Page 5: Full Setting The System

    Full Setting the System. After checking the premises are secure: Enter a valid User Code followed by Yes ( The exit tone will now sound. Exit the premises via an authorised exit route. Once the premises are secure, listen (from outside the protected area) for the exit tone to finish.

  • Page 6: Pre Exit Check

    Pre Exit Check. At the start of the setting procedure, a fault Exit Now ! . . . tone will sound if any non exit routes are Zone 3 open. The display will show, for example:- If the fault clears within 20 seconds then the exit tone will begin, if not, the fault tone will continue until a valid User code is entered.

  • Page 7: Part Setting The System (Using Part 2 Or 3)

    Part Setting the System (using Part 2 or 3). Two other Part Sets may be available for your system. Part 2 is a second set of zones that may be omitted and Part 3 will combine Part 1 and Part 2. To use Part 2 or 3. Enter a valid User Code followed by 2 or 3.

  • Page 8: Unsetting The System

    Unsetting the System. Enter the premises via an authorised Entry Point. The entry tone will sound. Proceed to the keypad and enter a valid User Code. Display After an Alarm. If an alarm occurs when the system is Set, the cause of the alarm will be displayed for 10 seconds after you unset the system.

  • Page 9: Resetting After An Alarm

    Resetting After an Alarm After an alarm the system needs to be reset. Your installation company will have programmed the reset modes for your system so that it complies with your insurance company and to legislation requirements. Your installation company will have informed you as to the type of reset that your system is set for.
  • Page 10 If a Master Code Reset has been programmed by the engineer, a higher level of code will be required. If Alarm Reset has been programmed for Master, then the display will show, for example, each time the User attempts to set ! ! ! ALARM 4 ! ! ! Zone 4 the system.

  • Page 11: Tamper Reset

    If Anti has been programmed for Alarm Reset, contact the Central Station or Engineer, (as instructed by the Installation Company) and quote the number given by the display. The central station or engineer will give a return Anti-Code, (this may contain the YES ( ) &...

  • Page 12: Setting The System With Mains Fail

    Tamper Resetting With the display showing:- ! ! ! ! CHECK ! ! ! ! ! Enter a valid User code. Then press Yes ( The exit tone will sound and Exit Now ! . . . the display will show:- Ok ! Enter your User code again to abort the setting.
  • Page 13 Enter a your User Code again followed by Yes ( The exit tone will now sound. Exit the premises via an authorised exit route . Note: To abort the exit, enter a valid User Code. If Part Setting ! ! ! ! CHECK ! ! ! ! ! With the display showing:- Enter your User code.

  • Page 14: Programming User Codes

    Programming User Codes Up to nine user codes may be programmed on predetermined levels. These are. User Numbers 1 to 3 Master Level. Allows Set, Part Set, Unset and User Programming Mode. User Numbers 4 to 7 User Level. Allows Set, Part Set and Unset. User Numbers 8 to 9 Set Only Level.
  • Page 15 Press No ( ). Do You Want to. . The display will show:- Program Codes ? Select 1 . . 9 Press Yes ( The display will show:- Press a single digit corresponding to the user number (1 to 9) that you wish to program.
  • Page 16 Text is entered in a similar way that you would enter text on a mobile telephone. Select characters from the list below:- YZ blank 1234567890 Enter the required character followed by Yes ( Continue until you have entered eight charac- ters.

  • Page 17: Programmable User Options

    Programmable User Options Several user programmable options are available via user codes 1, 2 or 3. To use these options please follow instructions below. Delete Zone Option This option allows individual zones to be deleted (omitted) when the system is being set. Note: Zone delete is only effective for one Set and will need to be repeated for subsequent Sets.

  • Page 18: System Test

    Press 0 twice. Do You Want to. . The display will show for example:- Set User 1 ? Press Yes ( ) for Full Set Press 1 for Part 1 Set Press 2 for Part 2 Set Press 3 for Part 3 Set The system will now start the relevant Set, with the zones you deleted removed from the Set.

  • Page 19: Turning Chime On/Off

    Walk around the area being tested. As each device is operated, there will a tone from the internal sounders and the display will show the triggered circuit. To test the bells (external sounders) and strobe press 9. To stop the bell test press 9 again. To escape back to Unset press 0 three times.

  • Page 20: Setting Time & Date

    Setting Time & Date Enter a valid Master User Code followed by No ( ). Do You Want to. . Test ? The display will show:- Press No ( ). Do You Want to. . The display will show:- Delete Zone ? Press No ( ).
  • Page 21 Enter the time using the 24 Hour clock e.g 2300 for 11pm followed by Yes ( The display will show, 03 Jul 23: 00 for example:- Ok ? Press Yes ( ) to accept. Do You Want to. . The display will show:- Set Date / Time ? To return to the Unset Mode press 0 twice.

  • Page 22: Reading The Log

    Reading the Log Enter a valid Master User Code followed by No ( ). Do You Want to. . The display will show:- Test ? Press No ( ). The display will show:- Do You Want to. . Delete Zone ? Press No ( ).

  • Page 23: Keypad Alert

    To return to the Unset Mode press 0 three times. Note: EN control panel only .The the log may store up to 256 events with time and date stamp. Non EN control panel . Depending on the Log mode Note: programmed by your installation engineer the log may store 256 events with no time or date stamp.

  • Page 24: System Details

    System Details Installation By: Address: Tel: Fax: Zone No. Location Type Chime Installation Date Service Timer Serviced Next Due Serviced Next Due Notes...
  • Page 25 Notes:...
  • Page 26 Notes:...
  • Page 27 Notes:...
  • Page 28 Risco Group UK Ltd Internet: www.riscogroup.co.uk Risco Group UK Ltd reserve the right to amend the software and features without prior notice Installed By:- 5IN480UM B PR5831 Rev1.1...
