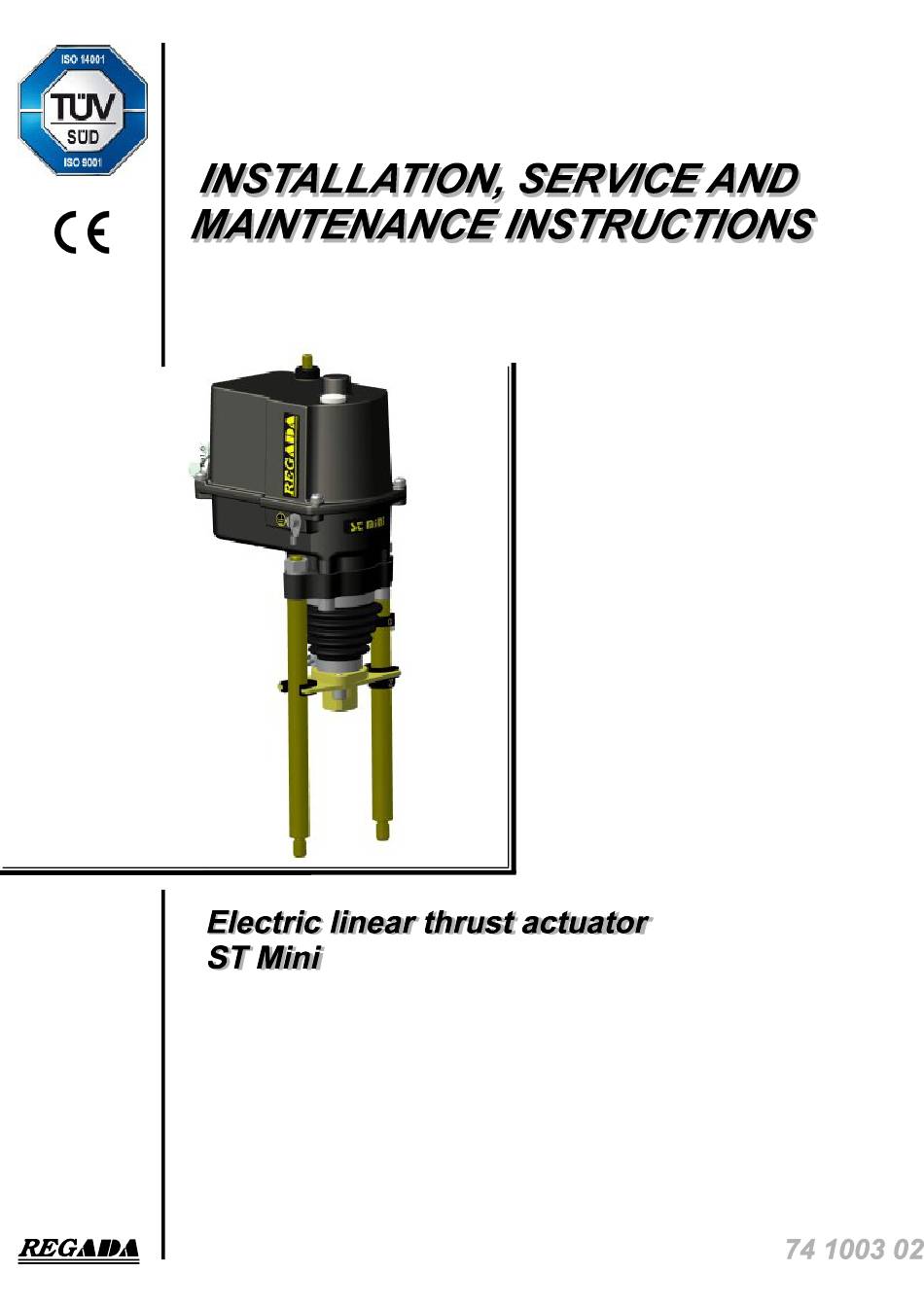

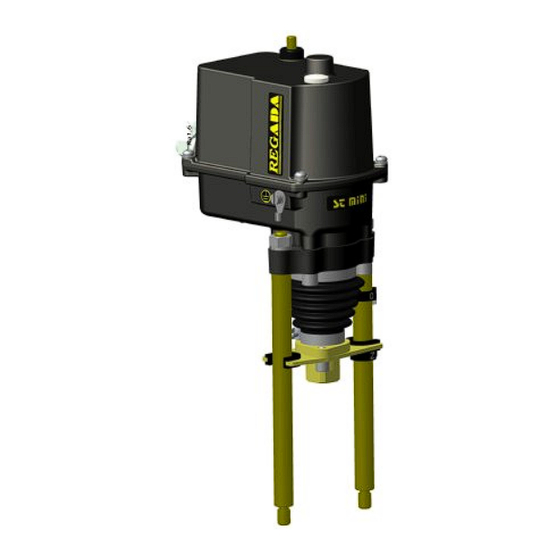

- Page 1 ® 74 1003 02...
- Page 2 TEST CERTIFICATE ELECTRIC LINEAR THRUST ACTUATOR ST Mini Type number 472........ Power supply ......V ..Hz Serial number ........Max. load thrust ..........N Production year ........Switching-off thrust ........N Wiring diagram ........Operating speed ........mm/min ............Stroke ............mm Warranty period .....
-
Page 3: Table Of Contents
Please read these instructions carefully before mounting and operating the actuator! Contents 1. General data ........................2 1.1 Purpose and applications ....................2 1.2 Safety instructions ......................2 1.3 Instructions for stuff training.................... 2 1.4 Warning for safety use....................2 1.5 Warranty conditions...................... -
Page 4: General Data
1.2 Safety instructions Characteristics of the Product Regarding Its Exposure Rate EA of ST MINI types are reserved technical devices with higher rate of danger, with possibility of installation in areas specially danger regarding casualties caused by electric current. -
Page 5: Warranty Conditions
Product protection EA ST MINI does not have own short-circuit protection, therefore there must be included suitable protective device into the supply power ( circuit breaker, or fuse), which serves at the same time as main switch. -
Page 6: Operation Conditions
ST MINI 1.7 Operation conditions 1.7.1 Product location and operation position • The assembly and operation of electric actuators in standard make can be on covered places of industrial objects without the regulation of temperature, humidity and with protection against direct exposure of climate influence (e.g. -
Page 7: Description
S4-25%, 90 up to 1200 cycles per hour Note: EA ST MINI is possible to connect with an external controller and use it as regulated EA. The max. load thrust is 0,8 times the max. load thrust of ST MINI with remote control. - Page 8 ST MINI Fig.1...
-
Page 9: Basic Specifications
ST MINI 1.9 Basic specifications 1.9.1 Basic EA specifications: Max. load thrust [N], switch-off thrust [N], operating speed [mm/min], operating stroke [mm] and electric motor parameters are given in Table 1. Table 1: Basic Specifications Operating stroke Electric motor ± 5mm Switch-off Max. - Page 10 ST MINI drop resistance: ....300 drops with acceleration 5 m.s seismic resistance: ....amplitude of the shock off 6 on Richter scale Self-locking: ..............guaranteed within 0% till 100% load thrust Position transmitters Resistive – potentiometer Resistance single (B1): ....................100 Ω, 2000 Ω...
-
Page 11: Packing, Transport, Storing And Unpacking
ST MINI Setting of thrust switches Power thrust switches have not been set. 1.9.2 Mechanical connection: • flange • pillars Basic and connecting dimensions are given in dimensional drawings 1.9.3 Electric connection to terminal board (X): max. 10 terminals, connecting cable size max. 1.5 mm 2 cable bushings –... -
Page 12: Installation And Dismantling Of Actuator
ST MINI 2. Installation and dismantling of actuator Note: Check again if installation of EA is according to Chapter 1.5 Operation conditions. In case that installation and operation conditions are different from recommended the consultation with producer is needed. Before starting of mounting the EA onto the valve: •... - Page 13 ST MINI Mechanical connection for versions with flange (Fig. 4) Connection procedure: • Check the label whether valve and actuator strokes are the same. • The valve (B) is put to the position „closed“ and the actuator (A) to a mid-position.
-
Page 14: Dismantling
ST MINI cover. Electric connection is made through bushings (9) to the terminal board (10), fig.1, with max.10 terminals with connecting cable size max. 1.5 mm . The installed set of capacitors (8) allows starting of the actuator. Notes: 1. The EA are delivered with bushings, which in case of tight putting on the leads assure protection enclosure up to IP 68. -
Page 15: Adjusting Of Actuator
ST MINI 3. Adjusting of actuator Attention! See chapter 1.2. Safety instructions Disconnect the electrical electric actuator from electrical power network! Observe safety regulations! EA is by the producer adjusted to parameters according to the nameplate. The adjustment can be performed at a mechanically and electrically connected EA. This part describes adjustment of EA to specified parameters in case that any unit of EA is reset. -
Page 16: Adjustment Of Resistant Transmitter
ST MINI 3.3 Adjustment of resistant transmitter The resistant transmitter is in the EA ST used to function as a remote position indicator. Before the resistant transmitter adjustment the position switches have to be adjusted. The potentiometer is not needed to be adjusted, it is able to adjust itself with putting the actuator to the both limit positions in accordance with the stroke specified on the nameplate. - Page 17 ST MINI • Switch the converter′s power supply on. Turn the adjusting trimmer A (Fig. 7) to adjust the output current signal rate measured on the terminals 81-82. • Set the actuator to the position „open“. • Turn the adjusting trimmer B (Fig. 7) to adjust the output current signal rate measured on the terminals 81-82.
-
Page 18: Service, Maintenance And Troubleshooting
ST MINI 4. Service, maintenance and troubleshooting 4.1 Service 1. In general it is provided that service of the EA is performed by a qualified worker in accordance with requirement given in Chapter 1! 2. After putting the EA into operation it is needed to verify whether during manipulation any scratch on surface occurred, it is to be removed to prevent actuator against corrosion! The EA requires just negligible service. -
Page 19: Maintenance - Extent And Periodicity
ST MINI 4.2 Maintenance - extent and periodicity All screws and nuts affecting tightness and protection (IP) must be tighten during the inspection and maintenance. Similarly, once a year should be checked and if necessary tighten mounting screws of the terminal wires and assuring of the slip-on joints with wires. -
Page 20: Enclosures
ST MINI 6. Enclosures 6.1 Wiring diagrams Legend: Z20 ..electric motor connection: “A” - with 1 thrust switch and 1 position switch; “B” – with 2 position switches Z21, Z307b ..additional position switches connection Z22 ..single resistant transmitter connection Z23 .. -
Page 21: Dimensional Drawings
ST MINI 6.2 Dimensional drawings... - Page 22 ST MINI...
- Page 23 ST MINI...
- Page 24 ST MINI...
-
Page 25: Record On Warranty Service Intervention
ST MINI Record on warranty service intervention Service center: Intervention date: Warranty repair No.: Electric actuator user: Complaint submitted by: EA type No.: EA serial number: Complaint object: Detected fault: Applied spare parts: Notes: Made on: Signature:... -
Page 26: Record On After-Warranty Service Intervention
ST MINI 6.3 Record on after-warranty service intervention Service center: Intervention date: Warranty repair No.: Electric actuator user: Complaint submitted by: EA type No.: EA serial number: Complaint object: Detected fault: Applied spare parts: Notes: Made on: Signature:... -
Page 27: Commercial Agency And Contractual Service Centers
ST MINI 6.4 Commercial agency and contractual service centers Slovak Republic: Regada, s.r.o., Strojnícka 7 080 01 Prešov Tel.: +421 (0)51 7480 460 Fax: +421 (0)51 7732 096 E-mail: regada@regada.sk Czech Republic: Regada Česká, s.r.o. Kopaninská 109 252 25 Ořech PRAHA –...
