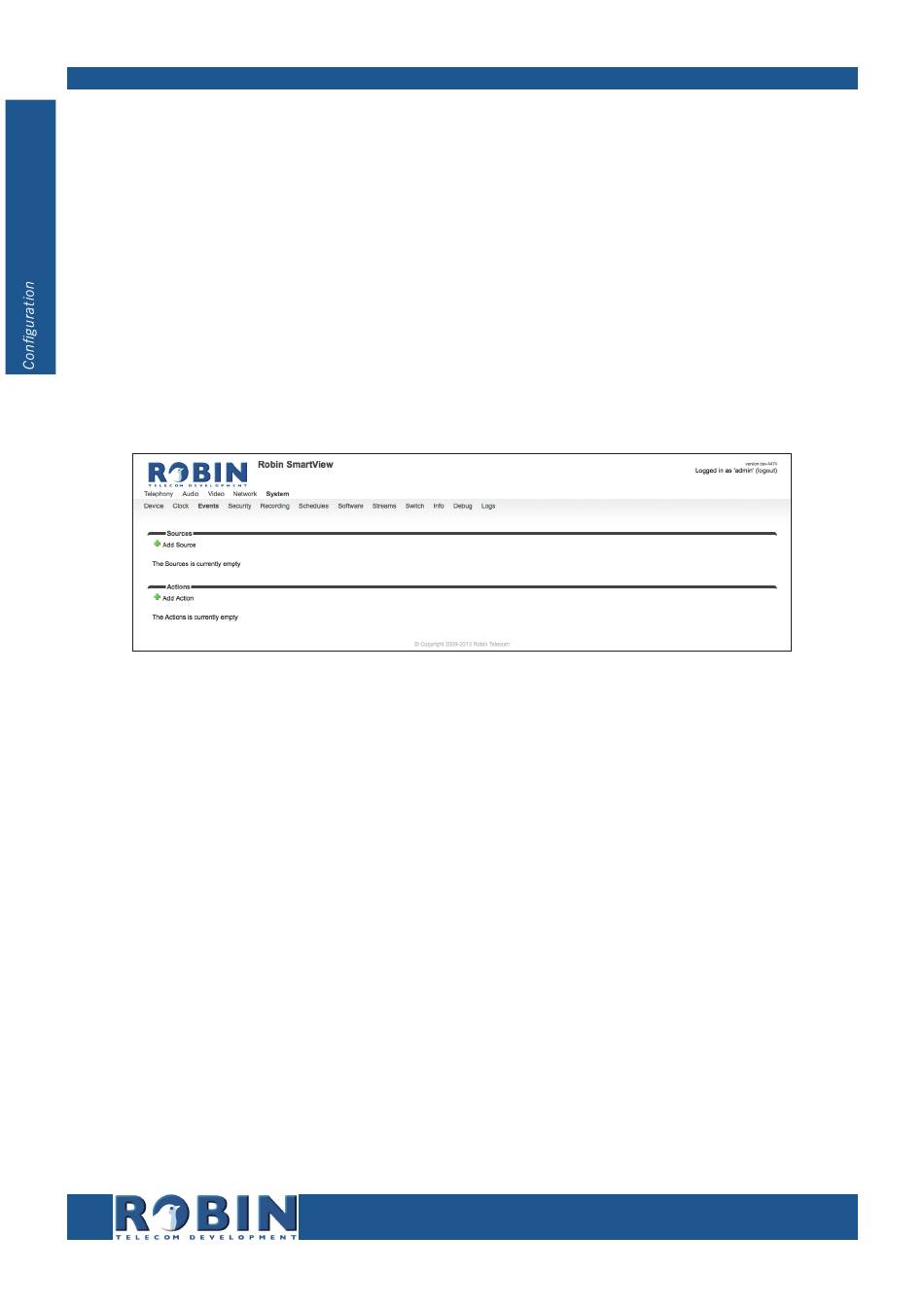

5.2.5.3 System / Events

The Robin is equipped with various automation options. For example, starting an outgoing
telephone call to a predefined number, the sending of an e-mail containing a photo of the person
using the intercom, the playback of an audio message etc.
All actions are triggered by an Event (source). An event source can be movement in front of the
camera, a loud noise that exceeds a predefined volume, a push on the button of the intercom or
other sources. You can select the various events sources here and set the response action that take
place when an event occurs.
Event actions can be set to be time bound using the 'Schedule' mechanism of the Robin.
That way an action can only start within a time slot, eg. lunch or after work hours. Definition of the
schedules can be done in the menu -System-Schedules-.
Sources
Define the events:
 Audio - Triggers if audio is detected (VOX detection) - See menu -Audio-Detection-
 Button - Triggers when a button is pushed or a preset is chosen on the Keypad - (Choice:
button 1, 2, 3, 4, 5, 6 or Keypad)
 Call - Triggers when a call is set up - (Choice: incoming or outgoing)
 Dtmf - Triggers when a combination of two keys are pressed during a phone call, starting
with a '*' followed by another key (Eg. *1, *7 etc.) - (Choice: 0-9, or #)
 Http - Triggers if a http call is detected (default http://<IP-ADDRESS-ROBIN> /evmgr/emit).
The 'emit' part in the URL is variable and can be changed in every other word. Change this
in the field: 'HTTP path'
 Kadex - Triggers when a signal is detected coming from a Kadex home automation server.
The Kadex event on which it needs to trigger can be set in the field: 'Event name'. As soon
as this Event is set, the sub-menu 'Kadex' will be visible. Use this to fill-in the Kadex server
details.
 Motion - Triggers when motion is detected by the camera - See menu -Video-Motion-
 Pin - Triggers when a correct PIN code is detected (Robin with Keypad) - See menu
-Telephony-Phonebook-, Presets
 Ring - Triggers when a 'ring' is detected (incoming or outgoing)
