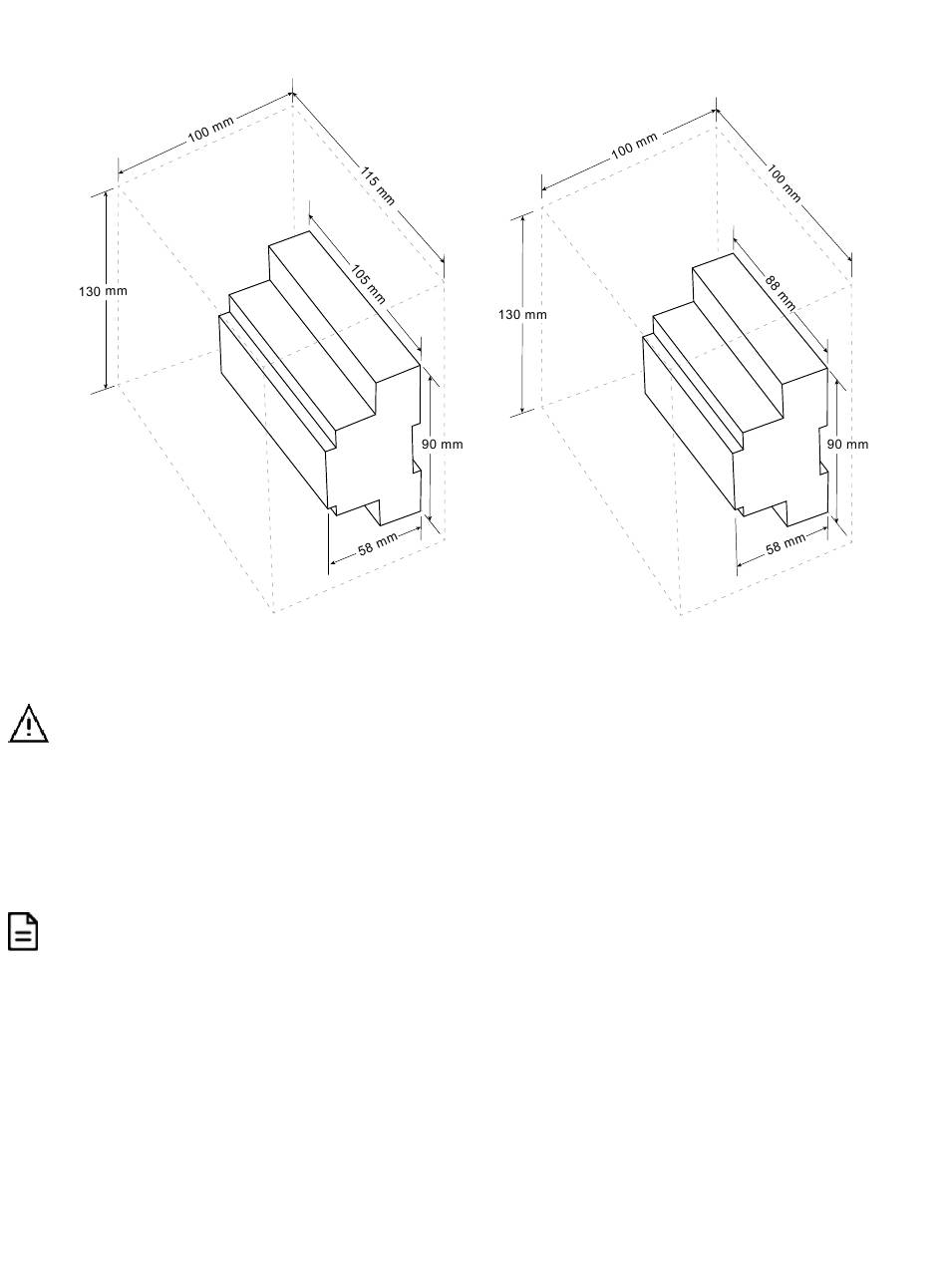

Dimensions
SCY-1DALI-24V
Mounting Instructions
£
Mount this gateway over a DIN rail, preferably inside a grounded metallic industrial cabinet.
£
Ensure the gateway has sufficient clearances for all connections when mounted. See the dimensions in the image
above.
£
Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, wa-
ter, high relative humidity, or dust.
DIN Rail Mounting
1. Fit the gateway's top-side clips in the upper edge of the DIN rail.
2. Press the low side of the gateway gently to lock it in the DIN rail.
3. Make sure the gateway is firmly fixed.
For some DIN rails, to complete step 2, you may need a small screwdriver or similar to pull the bottom clip down.
SCY-2DALI-24V
3 / 12
