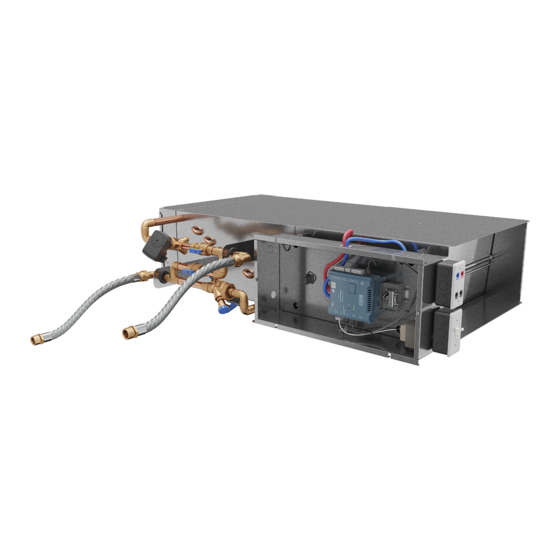

Smart Air Control Valve
Product Description
The Distech Controls' Smart Air Control Valve is a highly accurate, fully dynamic, pre-assembled air control valve solution. It has a superior turndown
ratio and measures airflows as low as a few CFM. With this low airflow design, the same Smart Air Control Valve model can be used to control the
airflow required for various applications and at a much wider range of space occupancy levels. It offers a breakthrough air flow measurement technology
that results in energy efficiency and low EUI (Energy Use Intensity), superior IEQ (Indoor Environmental Quality) and IAQ (Indoor Air Quality).
The Smart Air Control Valve is designed for low-pressure and low-velocity operation under 2"WC of inlet static pressure. Appropriate
measures should be taken to reduce the operating static pressure when this is above 2"WC.
Related Documentation
For more information on the Smart Air Control Valve or graphical programming tools, refer to the following:
£
Smart Air Control Valve Spec Sheet
£
Smart Air Control Valve User Guide
£
Builder User Guide
Related documentation is available for download on the Distech Controls Documentation and Resources portal.
General Installation Requirements
For proper installation and subsequent operation of each controller, pay special attention to the following recommendations:
£
Upon unpacking the product, inspect the contents of the carton for shipping damages. Do not install damaged modules.
£
Ensure that all equipment is installed according to local, regional, and national regulations.
Any type of modification to any Distech Controls product will void the product's warranty.
Operating, handling, or servicing this product should be ensured by a qualified operator. Turn off the power
before any kind of servicing.
Take reasonable precautions to prevent electrostatic discharges to the controller when installing, servicing or
operating the controller. Discharge accumulated static electricity by touching one's hand to a well-grounded
object before working with the controller.

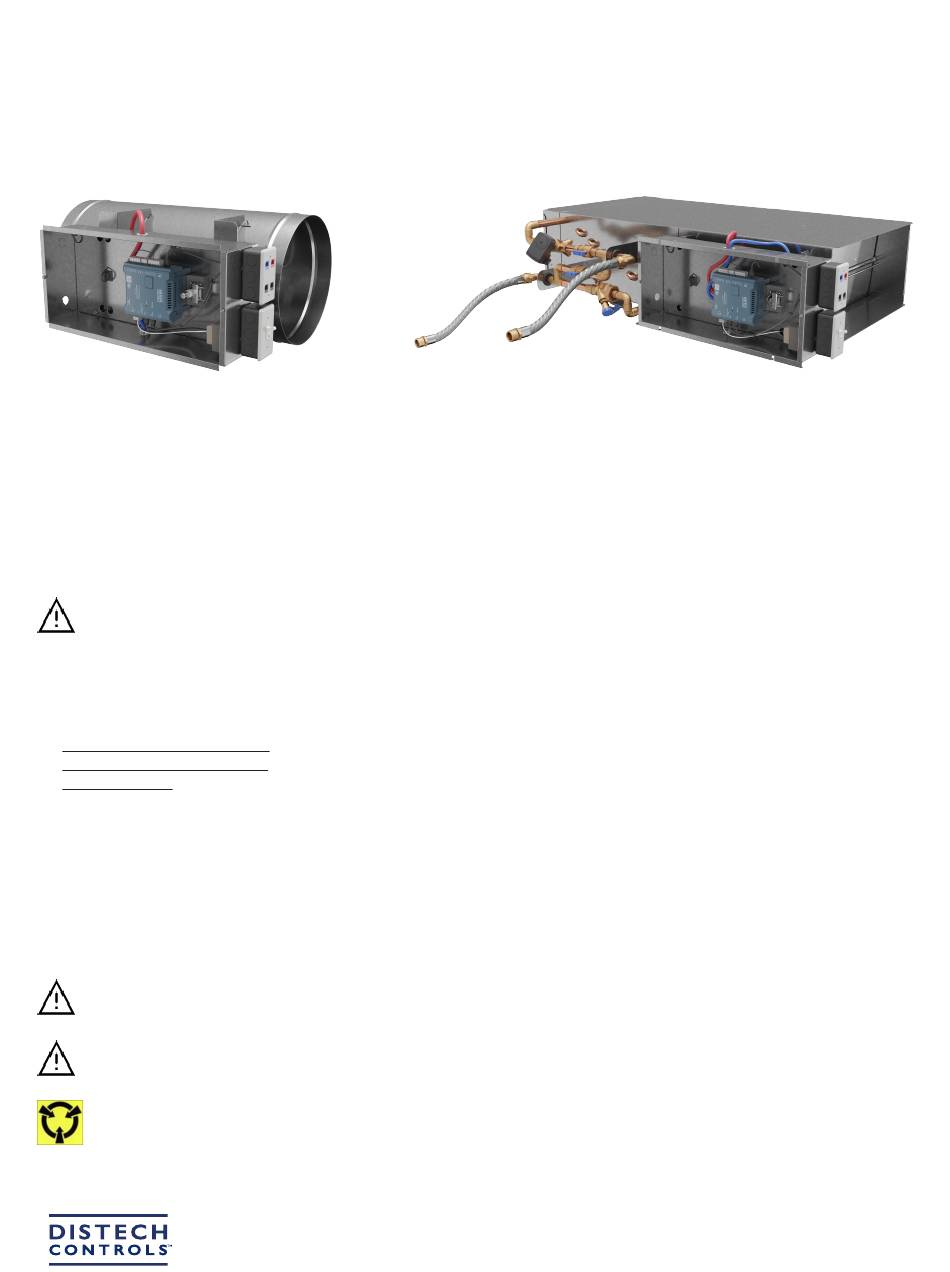

Figure 1:
Smart Air Control Valve Round and Rectangular Commercial Models
I n s t a l l a t i o n G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Air Control Valve and is the answer not in the manual?

Questions and answers

Related Manuals for Distech Controls Smart Air Control Valve

Summary of Contents for Distech Controls Smart Air Control Valve

  • Page 1 The Distech Controls’ Smart Air Control Valve is a highly accurate, fully dynamic, pre-assembled air control valve solution. It has a superior turndown ratio and measures airflows as low as a few CFM. With this low airflow design, the same Smart Air Control Valve model can be used to control the airflow required for various applications and at a much wider range of space occupancy levels.

  • Page 2: Pre-Installation Instructions

    Pre-Installation Instructions Receiving and Handling Smart Air Control Valve (SACV) units are shipped completely assembled. Upon receiving the equipment, complete the following: £ Locate the product identification label on the underside of the controller cabinet, and refer to the model and sales order number to check that the correct units have been delivered.

  • Page 3: Unit Installation

    6” Top Clearance 36” Side Clearance 36” Side Clearance 6” Bottom Clearance Figure 3: Clearances required for Smart Air Control Valve £ The minimum clearance for controls and heater controls should be 36” for all models. 3 / 11...

  • Page 4: Duct Connections

    3-duct diameters of straight duct from the discharge of the units prior to any take-offs or transitions. The Smart Air Control Valve is designed for low-pressure and low-velocity operation under 2"WC of inlet static pressure. Appropriate measures should be taken to reduce the operating static pressure when this is above 2"WC.

  • Page 5: Power Wiring

    Power Wiring Wire the transformer as per the power wiring given in Figure 4. Figure 5: Power wiring for junction box Make the power connections inside the electrical junction box, which is also equipped with a shut-off switch (120V, 15A). Use copper conductors only and ensure to connect the unit to ground.

  • Page 6: Field Installation

    Discharge Air Temperature (DAT) Sensor A discharge air temperature (DAT) sensor is supplied with the Smart Air Control Valve and can be connected to the controller using the UI2 and COM ports. Please follow installation recommendations with care when connecting the DAT sensor to avoid any damage to the SACV.

  • Page 7: Communications Wiring

    IP addressing, radio path planning (when the ECLYPSE Wi-Fi Adapter is connected to the controller), etc. It can be downloaded from our website. For optimal performance, use Distech Controls category 5e network cable or refer to the ECLYPSE User Guide for cable specifications.

  • Page 8: Configuring The Controller

    Configuring the Controller Any of the following methods can be used to connect to the controller’s interface in order to configure it: £ Using the Xpress Network Utility £ Using the controller’s factory-default Hostname in the Web browser £ Using the controller’s IP address in the Web browser Using the Xpress Network Utility The Xpress Network Utility is a software application that runs on a PC that allows you to discover all ECY Series controllers and the SACV units con- nected to an IP network’s subnetwork or Wi-Fi network and to perform a range of operations on many controllers at once: you can set each controller’s...

  • Page 9: Field Adjustment

    Field Adjustment The SACV Graphical Web Interface, similar to the figure below, opens when accessing an SACV. For more information on accessing this page, see the Smart Air Control Valve User Guide. Figure 9: SACV Graphical Web Interface (Graphic Page view)
  • Page 10 Directive applies to standalone products, for example, products that can function entirely on their own and are not a part of another system or piece of equipment. For this reason Distech Controls products are exempt from the WEEE Directive. Nevertheless, Distech Controls products are marked with the WEEE symbol , indicating devices are not to be thrown away in municipal waste.

  • Page 11: North American Emissions Compliance

    Cet appareil numérique de la Classe (B) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Specifications subject to change without notice. ECLYPSE, Distech Controls, the Distech Controls logo, EC-Net, Allure, and Allure UNITOUCH are trademarks of Distech Controls Inc. BACnet is a registered trademark of ASHRAE; BTL is a registered ®...
