SOLSTYCE Series Communication Modules

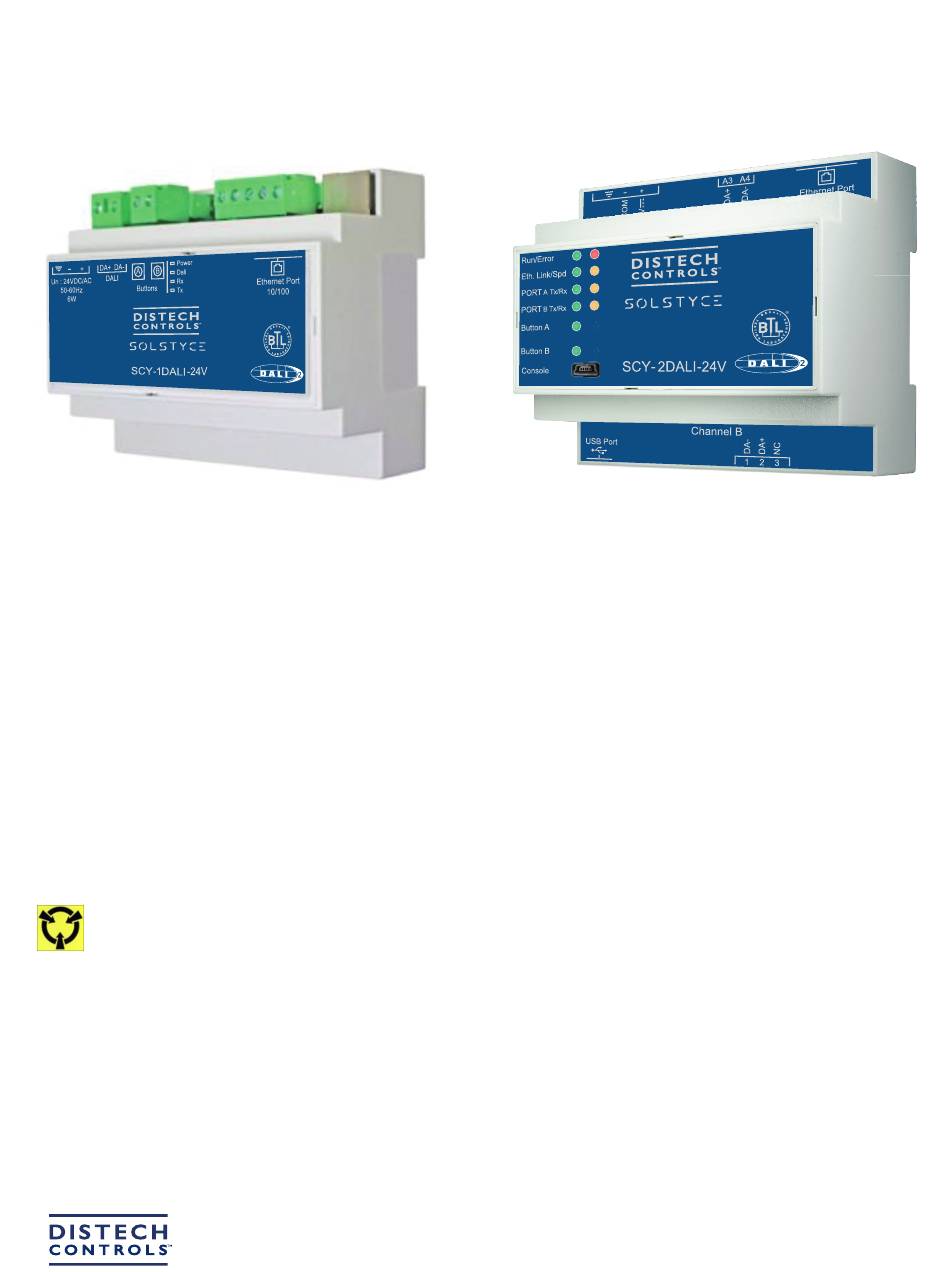

Figure 1:
SCY-1DALI-24V (left) and SCY-2DALI-24V (right)
Product Description
The SOLSTYCE Series lighting communications modules provide gateway functionality between a DALI installation and BACnet/IP systems. The gate-
way enables the control and monitoring of DALI ballasts and drivers from BACnet/IP systems.
SOLSTYCE modules also allow the integration and configuration of the specific parameters for DALI occupancy and light sensors as well as for DALI
push buttons.
General Installation Requirements
For proper installation and subsequent operation of the device, pay special attention to the following recommendations:
£
Ensure proper ventilation of the device and avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.
£
Allow for proper clearance around the device's enclosure and wiring terminals to provide easy access for hardware configuration and maintenance.
£
Upon unpacking, inspect the contents of the carton for shipping damages. Do not install a damaged device.
£
In case of wall mount, firmly fix the device on a non-vibrating surface following the mounting instructions.
£
Mount the module, preferably, on a DIN rail inside a grounded metallic cabinet following the instructions below.
£
This device cannot be installed outdoors or exposed to direct solar radiation, water, high relative humidity or dust.
£
The device must only be installed in a restricted access location.
Take reasonable precautions to prevent electrostatic discharge to the device when installing, servicing or during operation. Discharge
accumulated static electricity by touching one's hand to a well-grounded object before working with the device.
I n s t a l l a t i o n G u i d e
Advertisement
Related Manuals for Distech Controls SOLSTYCE Series
Summary of Contents for Distech Controls SOLSTYCE Series
- Page 1 SCY-1DALI-24V (left) and SCY-2DALI-24V (right) Product Description The SOLSTYCE Series lighting communications modules provide gateway functionality between a DALI installation and BACnet/IP systems. The gate- way enables the control and monitoring of DALI ballasts and drivers from BACnet/IP systems. SOLSTYCE modules also allow the integration and configuration of the specific parameters for DALI occupancy and light sensors as well as for DALI push buttons.
-
Page 2: Device Markings
Device Markings Certain markings (symbols) can be found on the side of the product and are defined as follows: Symbol Description CE marking: the device conforms to the requirements of applicable EC directives. UKCA marking: the device conforms to the requirements of applicable Great Britain regulations. UL marking: conforms to the requirements of the UL certification. -
Page 3: Mounting Instructions
Dimensions SCY-1DALI-24V SCY-2DALI-24V Mounting Instructions £ Mount this gateway over a DIN rail, preferably inside a grounded metallic industrial cabinet. £ Ensure the gateway has sufficient clearances for all connections when mounted. See the dimensions in the image above. £ Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, wa- ter, high relative humidity, or dust. -
Page 4: Wall Mount
Figure 2: Fixing the device on a DIN rail Wall Mount 1. Slide out the fixing clips on the back of the device by firmly pushing them to the outside until they click into place which indicates that the clip is secure (see the figure below). -
Page 5: Connections And Components
Connections and Components SCY-1DALI-24V Figure 3: SCY-1DALI-24V connections Connection Description Power Supply £ Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply. £ Respect polarity applied of terminals (+) and (-). £ Be sure the voltage applied is within the range admitted. £... - Page 6 SCY-2DALI-24V Ethernet Power Supply BACnet IP DALI #1 A3 A4 Ethernet Port Channel A 10/100 Run/Error Eth. Link/Spd PORT A Tx/Rx PORT B Tx/Rx Button A Button B Console Console Port Channel B USB Port DALI #2 Figure 4: SCY-2DALI-24V module connectors For all connectors, use solid or stranded wires (twisted or with ferrule).
- Page 7 SCY-1DALI Ethernet Power BACnet IP Supply DALI Binary Inputs (NOT USED) Power Dali Un : 100-240V DALI Ethernet Port 50-60Hz Buttons 10/100 Figure 5: SCY-1DALI connections Component Description Power Supply Make sure that the voltage applied is of the value admitted (100-240 VAC). DALI* Connect the DALI bus to connectors DA+, DA- of gateway’s DALI port.
- Page 8 SCY-2DALI Ethernet Power Supply BACnet IP DALI #1 A3 A4 Ethernet Port Channel A 10/100 Run/Error Eth. Link/Spd PORT A Tx/Rx PORT B Tx/Rx Button A Button B Console Console Port Channel B USB Port DALI #2 Figure 6: SCY-2DALI connections Connection Description £...
- Page 9 Powering the DALI Bus Connect + and – terminals of the DALI bus of your DALI channel to SOLSTYCE DALI port. Bus has polarity, but most DALI ballasts are polarity insensi- tive, except the power supplies. NOTE: The gateway comes with the DALI power supply disabled out of the box in case you are using one on the Bus.
-
Page 10: Led Indicators
Modules Capacity There are different models of SOLSTYCE modules with different capacity. The table below shows the capacity for the SCY-2DALI models. Element Max. Notes Number of DALI channels Number of independent DALI channels Number DALI ECGs 64 DALI ECGs addresses are supported per line addresses per line Number DALI... -
Page 11: Factory Reset
Color Description After 30 secs of not pushing the button, the LED turns OFF and next time the button is pushed it will begin with RECALL_MAX_LEVEL Button B Off/Yellow Not used For SCY-2DALI Models The following LEDs indicate the different status of the gateway: Color Description No power... - Page 12 Products must be disposed of at the end of their useful life according to local regulations and the WEEE Directive. Specifications subject to change without notice. ECLYPSE, Distech Controls, the Distech Controls logo, EC-Net, Allure, and Allure UNITOUCH are trademarks of Distech Controls Inc. BACnet is a registered trademark of ASHRAE; BTL is a registered ®...
