Dual RS485 UUKL Option Module

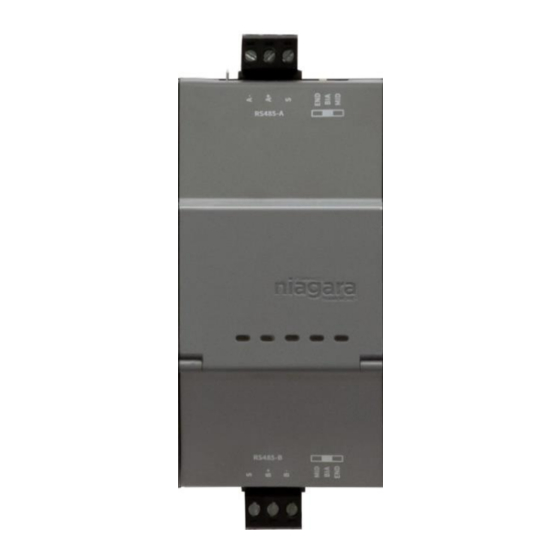

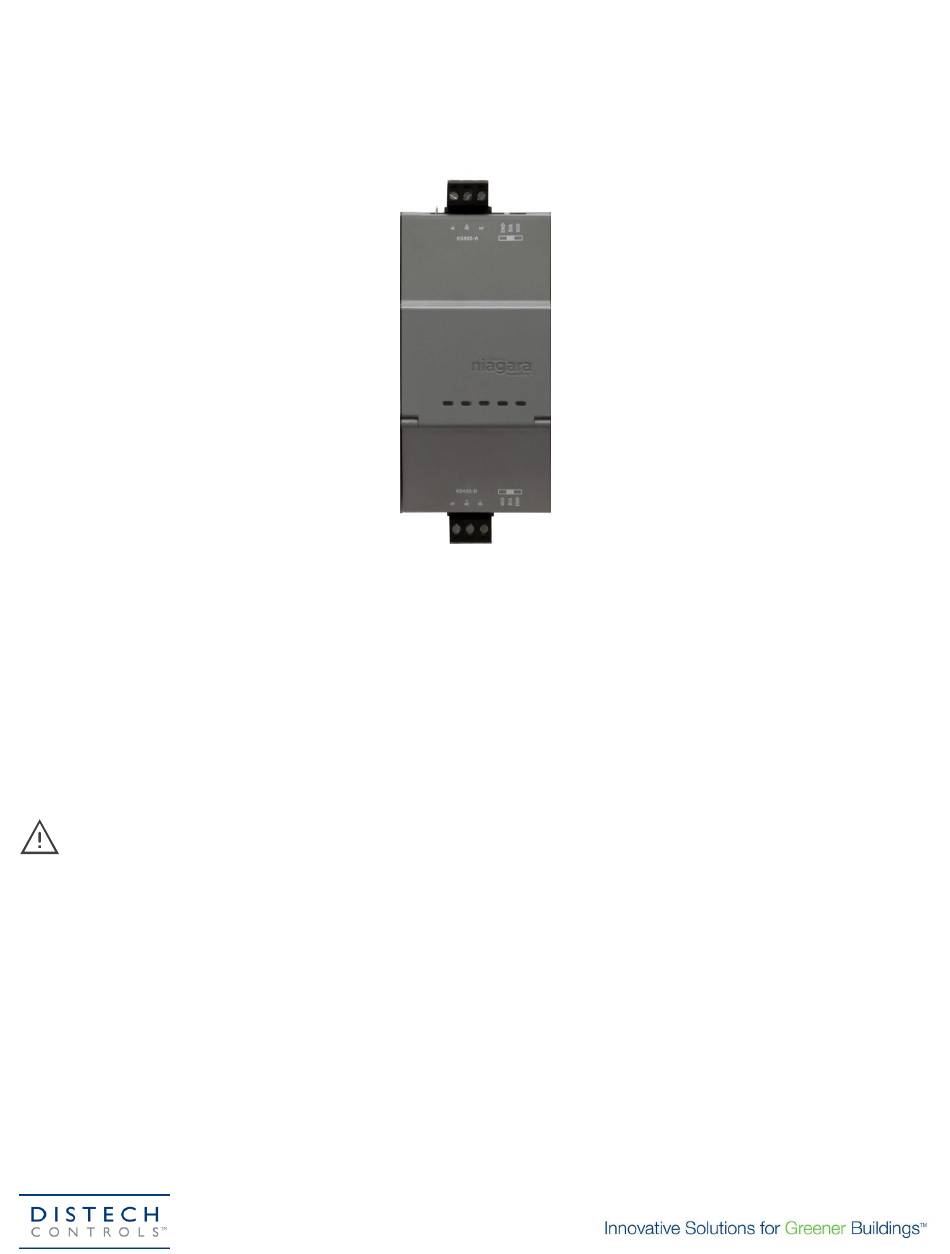

Figure 1: Dual RS485 UUKL Option module
Product Description
The RS485 UUKL is a dual port, electrically isolated adapter, with two 3-
position, removable screw-terminal connector plugs. Each port has an
RS485 bias switch to set or remove biasing. LEDs verify power and
termination from the EC-BOS-8 UUKL and indicate RS485 trunk
message traffic.
The Dual RS485 UUKL Option Module is to be used with the
EC-BOS-8 UUKL in the Distech Controls' UUKL smoke
control system.
For detailed requirements, specifications, and procedures for
installing and operating UL 864 Listed equipment, you must
refer to the Distech Controls UUKL Smoke Control System
Design Guide (UUKL Design Guide_UG_10_EN).
Failure to meet the requirements or follow the procedures in
the Distech Controls UUKL Smoke Control System Design
Guide can void the UL 864 Listing for smoke control
equipment.
Module Combinations
The EC-BOS-8 UUKL supports a maximum total of two Dual RS485
UUKL modules.
I n s t a l l a t i o n G u i d e
COM Port Assignments
The EC-BOS-8 UUKL has two onboard RS485 ports that always operate
as COM1 and COM2. Installed serial option modules continue COM port
numbering based on proximity to the EC-BOS-8 UUKL, where the option
module closest to the EC-BOS-8 UUKL base operates as the next
available serial COM port(s). For example, if attached directly to the EC-
BOS-8 UUKL, this dual RS-485 option module operates as COM3 (upper
port) and COM4 (lower port).
"COM Port
For related details, see
Related topics such as the mounting and wiring of the EC-BOS-8 UUKL
or other option modules, installation of EC-Net™ 4 software, and usage
of the various RS-485-based drivers are in other documents. See
"Related Documentation," page 4.
Included in this Package
Included in this package you should find the following items:
•
One Dual RS485 UUKL option module, with two 3-position terminal
plugs for wiring to an RS485 trunk, and a grounding wire with quick-
disconnect connector.
•
This Dual RS485 UUKL Option Module Install Sheet
Materials and Tools Required
Suitable tools and fasteners for mounting the unit, attaching it to an
already mounted EC-BOS-8 UUKL. DIN-rail mounting of the EC-BOS-8
UUKL and all its option modules is recommended.
A small flat-blade screwdriver is required to make wiring connections to
RS485 trunks.
