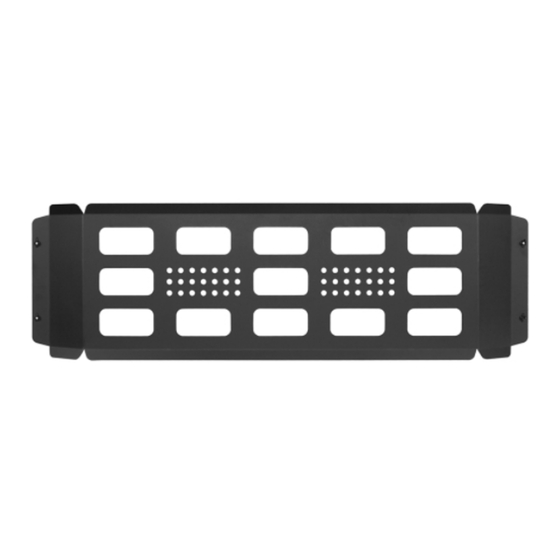

Rear Overhead Molle Panel
(1) Contents:
Qty
Part Name
1
Rear Overhead Molle Panel
H×4
Button Head Socket Cap Screw
I×4
Button Head Socket Cap Screw
J×4
Flange Hex Lock Nuts
(2) Tools required:
a. Drive Socket Ratchet Wrench；
b. 5mm & 6mm Hex Bit Socket;
Size(mm)
Qty
K×4
M8*80
L×4
M6*16
M×4
M8
N×4
MMR.30017
Part Name
Split Lock Washer
Split Lock Washer
Flat Washer
Flat Washer
Size(mm)
M8
M6
M6×20
M8×20
Advertisement
Related Manuals for HOOKE ROAD MMR.30017
Summary of Contents for HOOKE ROAD MMR.30017
- Page 1 Rear Overhead Molle Panel MMR.30017 (1) Contents: Part Name Size(mm) Part Name Size(mm) K×4 Rear Overhead Molle Panel Split Lock Washer H×4 Button Head Socket Cap Screw M8*80 L×4 Split Lock Washer I×4 Button Head Socket Cap Screw M6*16 M×4 Flat Washer M6×20...
- Page 2 (3) Installation time: About 40 minutes, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (TMK.30017), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: First things install the Part ’’B’’ into the vehicle frame with the Part ‘’H’’, ‘’J’’, ‘’K’’, ‘’N’’. Assemble the Part ‘’A’’ & the Part ‘’B’’ with the ‘’I’’, ‘’L’’ & ‘’M’’.
- Page 4 Step 2: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
