⑬ Battery cover
Remove this cover and insert the battery.
⑭ Battery storage compartment
Holds the battery.
⑮ Battery removal sheet
Used to remove the battery from the battery storage compartment.
⑯ Battery insulating tab
Remove this tab before using.

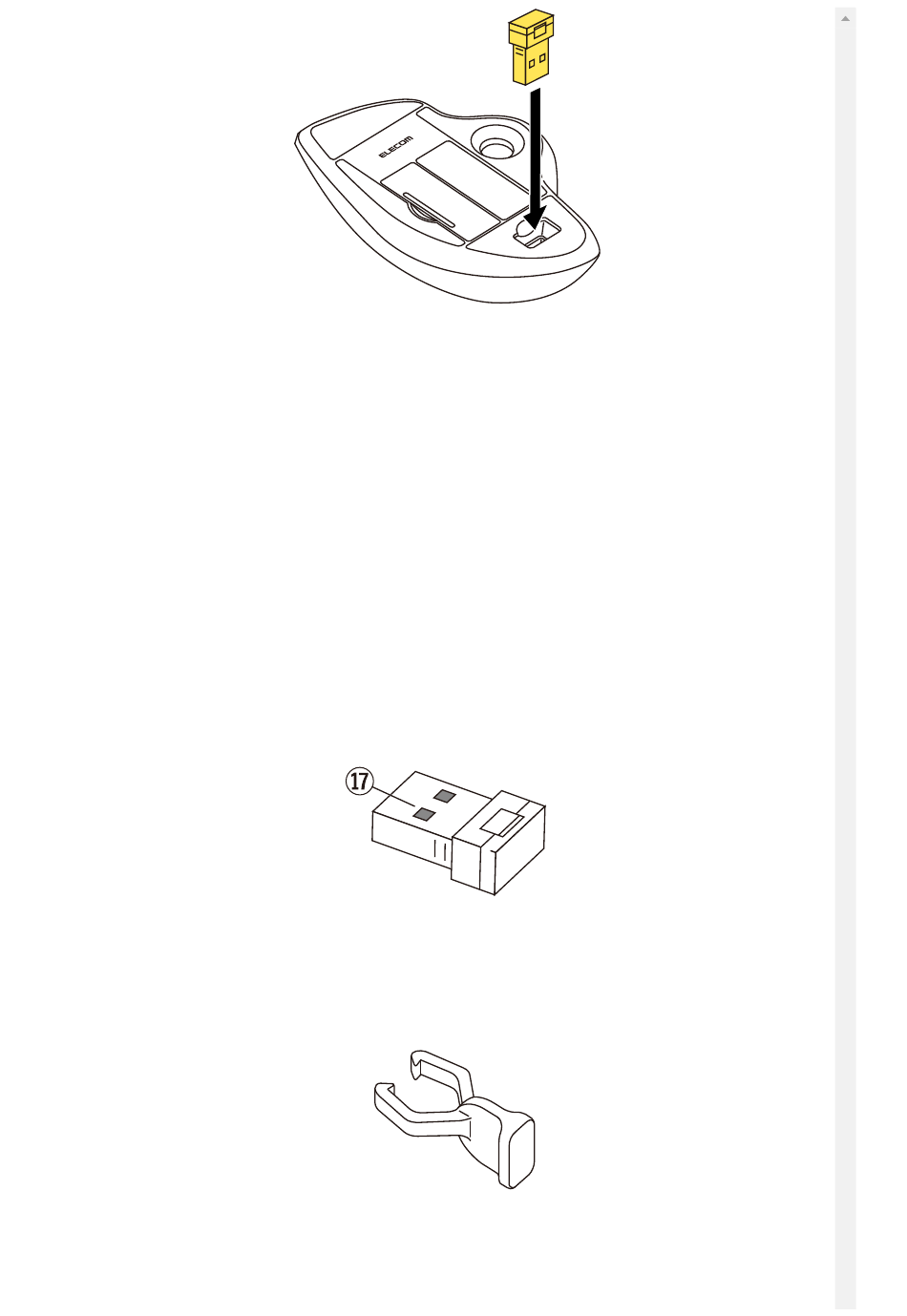

Receiver unit
⑰ USB connector (male)
Connects to the PC USB-A port
Removal tool
* See
"How to replace support parts"
for details.
