Precautions
This manual describes the important precautions you should take for safe operation of this product.
Observe these precautions carefully to avoid personal injury, damage, fire, and other problems.
Meaning of symbols
WARNING
Failure to observe precautions carries the possibility of serious personal injury or death due to
fire, electric shock, or other causes.
CAUTION
https://www.elecom.co.jp/support/manual_web/products/type_01-multi/enus/m-sh20db/
User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd

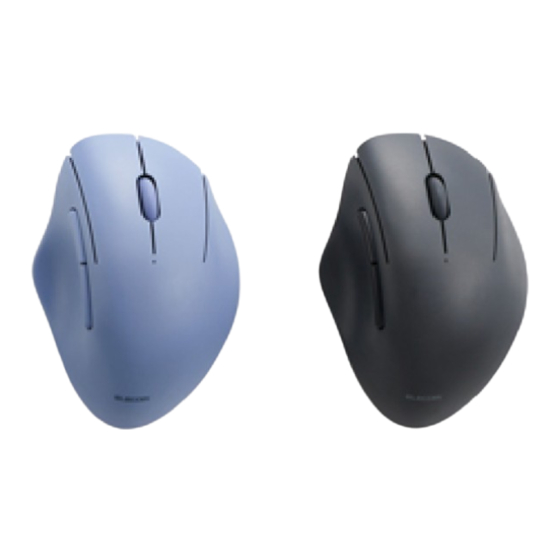

Wireless Mouse
M-SH20DB series
User Manual
Compliant model: M-SH20DBS/ELECOM01B
1/43

Advertisement

loading

Related Manuals for Elecom M-SH20DB Series

Summary of Contents for Elecom M-SH20DB Series

  • Page 1 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Wireless Mouse M-SH20DB series User Manual Compliant model: M-SH20DBS/ELECOM01B Precautions This manual describes the important precautions you should take for safe operation of this product.
  • Page 2 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Failure to observe precautions may result in personal injury due to electric shock or other causes, and may damage other equipment. Prohibited action Mandatory action...
  • Page 3 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd CAUTION Do not place this product in any of the following environments: In a car exposed to sunlight or a place exposed to direct sunlight.
  • Page 4 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Using a volatile liquid such as paint thinner, benzene or alcohol may affect the material quality and/or discolor this product. Please note the following for disinfection.

  • Page 5: How To Use

    Civil Aeronautics Act. Turn off the power of the wireless mouse before boarding and do not use after boarding. * ELECOM is not liable for any accidents or any indirect or consequential damage incurred due to the failure of this product.
  • Page 6 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Receiver unit x 1 At the time of shipment, it is stored in the mouse. Please remove before use. AA alkaline battery for confirming operability × 1 It is pre-inserted in the mouse body.
  • Page 7 User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Perform the “Forward” function on the Web browser. You will need to install the “ELECOM Mouse Assistant for Mac” from our website to use the “Back” and “Forward” button on Mac. Please refer to “Install ELECOM Mouse...
  • Page 8 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd ⑫ Battery insulating tab Remove this tab before using. Receiver unit ⑬ USB connector (male) Connects to the PC USB-A port Connecting and setting up the mouse Windows®...
  • Page 9 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 2) Remove the battery insulating tab. 3) Remove the receiver unit. 4) Put the battery cover back on. 5) Slide the power switch on the underside of the product to the ON position.
  • Page 10 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd The LED will light up white for a period of time. * When the battery level is running low, the LED will blink white for a period of time.
  • Page 11 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on. Connect to a PC 1) Start up your PC.
  • Page 12 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Page 13 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 3) Adjust the “Mouse pointer speed” slider bar to adjust the mouse pointer movement speed. ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
  • Page 14 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 3) Adjust the “Select a pointer speed” slider bar to adjust the mouse pointer movement speed. Change the number of lines scrolled in one wheel turn ■...
  • Page 15 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 3) Adjust the “Lines to scroll at a time” slider bar to adjust the number of lines per scroll. ■ For Windows 10 1) Open “Mouse” properties.
  • Page 16 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 3) Change the value of “The following number of lines at a time” under “Roll the wheel one notch to scroll” Turn the power ON 1) Remove the battery cover.
  • Page 17 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 3) Remove the receiver unit. 4) Put the battery cover back on. 5) Slide the power switch on the underside of the product to the ON position.
  • Page 18 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd The mouse returns from power-saving mode when it is moved. * Mouse operation may be unstable for 2-3 seconds after returning from the power-saving mode.
  • Page 19 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Connect to a PC 1) Start up your PC. Please wait until your PC has started up and can be operated. 2) Insert the receiver unit into the PC's USB-A port.
  • Page 20 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Do not touch the terminal portion of the USB connector. When removing the receiver unit This product supports hot plugging. The receiver unit can be removed while the PC is on.
  • Page 21 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer. Unchecking “Natural scrolling” will cause the scroll direction to be reversed.
  • Page 22 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 3) Remove the receiver unit. 4) Put the battery cover back on. 5) Slide the power switch on the underside of the product to the ON position.
  • Page 23 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly.
  • Page 24 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Connect to a PC 1) Start up your PC. Please wait until your PC has started up and can be operated. 2) Insert the receiver unit into the PC's USB-A port.
  • Page 25 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd You can now use the mouse. Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.
  • Page 26 ELECOM Mouse Assistant must be installed. “ELECOM Mouse Assistant” is a software that allows you to use the mouse more effectively. Using ELECOM Mouse Assistant, users can set the functions they want to the unique buttons and use them to perform the operations they want.

  • Page 27: Specifications

    8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Please visit our homepage below and download the latest version of the application. here > The download page is Specifications Compatible models USB port-equipped Windows OS, macOS, and ChromeOS devices...

  • Page 28: Troubleshooting

    8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd * May vary depending on the usage conditions. Power source Any 1 of AA alkaline battery, AA manganese battery or AA nickel- metal hydride rechargeable battery Rated voltage 1.5 V...
  • Page 29 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Never apply hot water. Doing so can cause electric malfunctions. Do not use organic solvents or ultraviolet lights. Usage can result in deterioration of the housing components or paints, which can cause damage to the exterior.
  • Page 30 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd The mouse operation will become unstable when the battery is low. Refer to “Replacing the battery...” and replace with a new battery as soon as possible.
  • Page 31 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd Connect the mouse receiver unit to a USB 2.0 USB hub or extension cable. ⑦ Check the energy saver settings on the connected device. (When using Windows®...
  • Page 32 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 2) Click “All apps”. 3) Click “Windows Tools”. The ”Windows Tools” screen will appear. https://www.elecom.co.jp/support/manual_web/products/type_01-multi/enus/m-sh20db/ 32/43...
  • Page 33 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 4) Double-click “Control Panel”. 5) Click “System and Security”. https://www.elecom.co.jp/support/manual_web/products/type_01-multi/enus/m-sh20db/ 33/43...
  • Page 34 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 6) Click “Power Options”. 7) Click “Change plan settings” to the right of the item selected in “Power Plan”. https://www.elecom.co.jp/support/manual_web/products/type_01-multi/enus/m-sh20db/ 34/43...
  • Page 35 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 8) On the “Edit Plan Settings” screen, click “Change advanced power settings”. 9) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+”...
  • Page 36 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 11) Click “OK” to confirm the settings. 12) Click the “X” (close) in the upper right corner to close “Edit Plan Settings”. For Windows 10 1) Right-click the Start button at the bottom left of the screen, click “Power Options”, and then...
  • Page 37 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 4) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB selective suspend setting”.
  • Page 38 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd 6) Click “OK” to confirm the settings. 7) Click the “X” (close) in the upper right corner to close “Edit Plan Settings”. Compliance status Model/모델명/设备型号: M-SH20DBS, ELECOM01B...

  • Page 39: Intellectual Property Rights

    Specifications and external appearance of this product may be changed without prior notice for the purpose of product improvement. ELECOM is not responsible for any damages to, or failure of other devices caused by using this product. The images are for illustration purposes only and may differ from your actual product.
  • Page 40 Las especificaciones y la apariencia externa de este producto pueden modificarse sin previo aviso con el fin de mejorar el producto. ELECOM no se hace responsable de los daños o fallos de otros dispositivos causados por el uso de este producto.
  • Page 41 As especificações e aparência externa deste produto podem ser alteradas sem aviso prévio para fins de melhoria do produto. A ELECOM não é responsável por quaisquer danos ou falhas de outros dispositivos causados pelo uso deste produto. As imagens são apenas para fins ilustrativos e podem diferir do produto real.
  • Page 42 8/30/23, 12:16 PM User Manual - Wireless 5 Button Mouse M-SH20DB Series | ELECOM Co., Ltd japonês. As trocas serão feitas sob estipulação da garantia ELECOM, mas não estão disponíveis fora do Japão. 如果您对本手册内容有任何反馈或疑问，请与购买本产品的零售商联系。 本产品的规格及外观如有变更以对产品进行改进，恕不另行通知。 因使用本产品而造成其他设备故障或问题时，ELECOM概不负责，敬请知悉。 图片仅供参考，您所收到的实际产品可能有所差异。 出口本产品至海外时，请检查原产国的出口法规。 在日本境外购买产品的客户应与当地的的零售商联系进行咨询。ELECOM株式会社（日本）有限公司不 对日本之外的其他国家的客户提供有关购买或使用的咨询服务。另外，公司不提供日语之外的其他外语服...
  • Page 43 일본 외 다른 국가에서 구입하는 고객은 문의 사항이 있는 경우 제품 구입 국가의 대리점에 연락하십시 오. ‘ELECOM CO., LTD.(일본)’는 일본 이외의 국가에서 구입 또는 사용 문의에 대한 고객 지원을 제공하 지 않습니다. 또한 일본어 이외의 외국어는 지원되지 않습니다. 제품 교체는 ELECOM 보증 규정에 따라...
