Thank you very much for purchasing this product.

* "M-SH20DBS" series is referred to as "this product" in this manual except in some cases.

Precautions

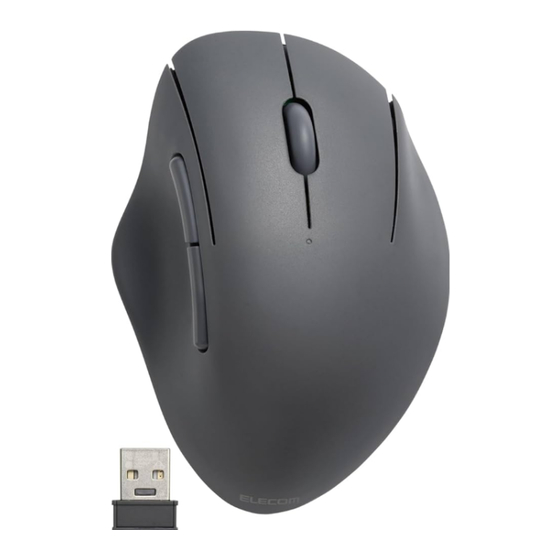

Wireless Mouse

M-SH20DBS

User Manual

Table of Contents

Summary of Contents for Elecom M-SH20DBS

Page 1 SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE SAMPLESAMPLESAMPLESAMPLESAMPLE Wireless Mouse M-SH20DBS User Manual Thank you very much for purchasing this product. * “M-SH20DBS” series is referred to as “this product” in this manual except in some cases. Precautions...
Page 2 This manual describes the important precautions you should take for safe operation of this product. Observe these precautions carefully to avoid personal injury, damage, fire, and other problems. Meaning of symbols WARNING Failure to observe precautions carries the possibility of serious personal injury or death due to fire, electric shock, or other causes.
Page 3 Malfunctions are not covered under warranty. Do not put this product in fire. Breakage may cause fire or injury. CAUTION Do not place this product in any of the following environments: In a car exposed to sunlight or a place exposed to direct sunlight. In a place that becomes hot, such as around a heater.
Page 4 Remove the battery when you are not using this product for long periods of time. Otherwise, this may cause leakage or malfunction. Cleaning the Product If the body of this product becomes dirty, wipe with a soft, dry cloth. Using a volatile liquid such as paint thinner, benzene or alcohol may affect the material quality and/or discolor this product.
Page 5: How To Use
Please turn off any connected devices. * Please turn off connected devices when in sleep or hibernation mode. * Please unplug the A C adapter and power cable from the power outlet. Cautions for Wireless Equipment This product is a wireless device that can use the entire 2.4 GHz band, and is able to avoid the mobile entity identification device range.
Page 6: Name And Function Of Each Part
any shortage or damage is discovered, please contact the retailer where the product was purchased. Mouse × 1 Receiver unit x 1 At the time of shipment, it is stored in the mouse. Please remove before use. AA alkaline battery for confirming operability × 1 It is pre-inserted in the mouse body.
Page 7 ''Back'' button Continue to next page. Return to previous page. You will need to install the “ELECOM Mouse Assistant Mac version” from our website to use the “Back” and “Forward” button on Mac. Please refer to “Install ELECOM Mouse Assistant”.
Page 8: Receiver Unit
⑫ Battery insulating tab Remove this tab before using. Receiver unit ⑬ USB connector (male) Connects to the PC USB-A port Connecting and setting up the mouse Windows® Turn the power ON 1) Remove the battery cover.
Page 9 2) Remove the battery insulating tab. 3) Remove the receiver unit. 4) Put the battery cover back on. 5) Slide the power switch on the underside of the product to the ON position. The LED will light up white for a period of time. * When the battery level is running low, the LED will blink white for a period of time.
Page 10 * Mouse operation may be unstable for 2-3 seconds after returning from the power-saving mode. Replacing the battery... 1) Remove the battery cover. 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly.
Page 11 3) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install...
Page 12 * The screenshots will be replaced with the English version when it's ready. Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow. ■ For Windows 11 1) Click on “Start”...
Page 13 * The screenshots will be replaced with the English version when it's ready. ■ For Windows 10/8.1 1) Open “Mouse” properties. For Windows 10 From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
Page 14 * The screenshots will be replaced with the English version when it's ready. 2) Click on “Bluetooth & devices” and then “Mouse”. 3) Adjust the “Lines to scroll at a time” slider bar to adjust the number of lines per scroll. ■...
Page 15 * The screenshots will be replaced with the English version when it's ready. 2) Select the “Wheel” tab. 3) Change the value of “The following number of lines at a time” under “Roll the wheel one notch to scroll” Turn the power ON 1) Remove the battery cover.
Page 16 3) Remove the receiver unit. 4) Put the battery cover back on. 5) Slide the power switch on the underside of the product to the ON position. The LED will light up white for a period of time. * When the battery level is running low, the LED will blink white for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Page 17 Replacing the battery... 1) Remove the battery cover. 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on.
Page 18 3) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install...
Page 19 * The screenshots will be replaced with the English version when it's ready. 2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer. Unchecking “Natural scrolling” will cause the scroll direction to be reversed. Chrome OS Turn the power ON 1) Remove the battery cover.
Page 20 2) Remove the battery insulating tab. 3) Remove the receiver unit. 4) Put the battery cover back on. 5) Slide the power switch on the underside of the product to the ON position.
Page 21 The LED will light up white for a period of time. * When the battery level is running low, the LED will blink white for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Page 22 4) Put the battery cover back on. Connect to a PC 1) Start up your PC. Please wait until your PC has started up and can be operated. 2) Insert the receiver unit into the PC's USB-A port. USB-A port You may use any USB-A port.
Page 23 * The screenshots will be replaced with the English version when it's ready. This product supports hot plugging. The receiver unit can be removed while the PC is on. 3) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse.
Page 24 ELECOM Mouse Assistant must be installed. “ELECOM Mouse Assistant” is a software that allows you to use the mouse more effectively. Using ELECOM Mouse Assistant, users can set the functions they want to the unique buttons and use them to perform the operations they want.
Page 25: Product Specifications
Radio wave range When used on magnetic surfaces such as metal desks: 3 m, When used on non-magnetic surfaces such as wooden desks: 10 m * These values were obtained in ELECOM's test environment and are not guaranteed. Sensor type...
Page 26 Temperature -10 °C to 60 °C / 14 °F～ 140 °F, Storage environment humidity: 90 % RH (without condensation) conditions Accessories AA alkaline battery for confirming operability × 1 Compliance status Model: M-SH20DBS, ELECOM01B China / 中国 RoHS Compliance (产品中有毒有害物质或元素的名称及含量) Model: M-SH20DBS...
Page 27 WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE. Korea / 대한민국 모델명: M-SH20DBS 인증번호: R-R-ELJ-M-SH20DBS 모델명: ELECOM01B 인증번호: R-R-ELJ-ELECOM01B...
Page 28 Taiwan / 台灣型式: M-SH20DBS BSMI RoHS statement (限⽤物質含有情況標⽰聲明書) 型號 M-SH20DBS: XXXXXXXXXXXXXX 型號 ELECOM01B: CCAH20LP8510T5 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使⽤者均不得擅⾃變更頻率、加⼤功率或變更原設計之特性及功能。低功率射頻器材之使⽤不得影響⾶航安全及⼲擾合法通信；經發現有⼲擾現象時，應立即停⽤，並改善⾄無⼲擾時⽅得繼續使⽤。前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或⼯業、科學及醫療⽤電波輻射性電機設備之⼲擾。 UK Declaration of Conformity RoHS Compliance Importer UK Contact (For UKCA matters only) Around the World Trading, Ltd.
Page 29 WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE. M-SH20DBS FCC ID: YWO-M-SH20DBS ELECOM01B FCC ID: YWO-ELECOM01B This device complies with Part 15 of the FCC Rules.
Page 30 The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Responsible party ELECOM USA, Inc. 18575 Jamboree Road Suite 600, Irvine CA 92612 USA elecomus.com...
