⑦ Optical sensor
The LED will light up blue when the battery is inserted into the mouse.
This sensor will detect mouse movements when you move the mouse.
* Please note that looking directly into the sensor light may hurt your eyes.
⑧ Power switch
Turn the mouse power on (ON) and off (OFF).
⑨ Battery insulating tab
Remove this tab before using.
⑩ Battery cover
Remove this cover and insert the battery.
⑪ Battery storage compartment
Holds the battery.

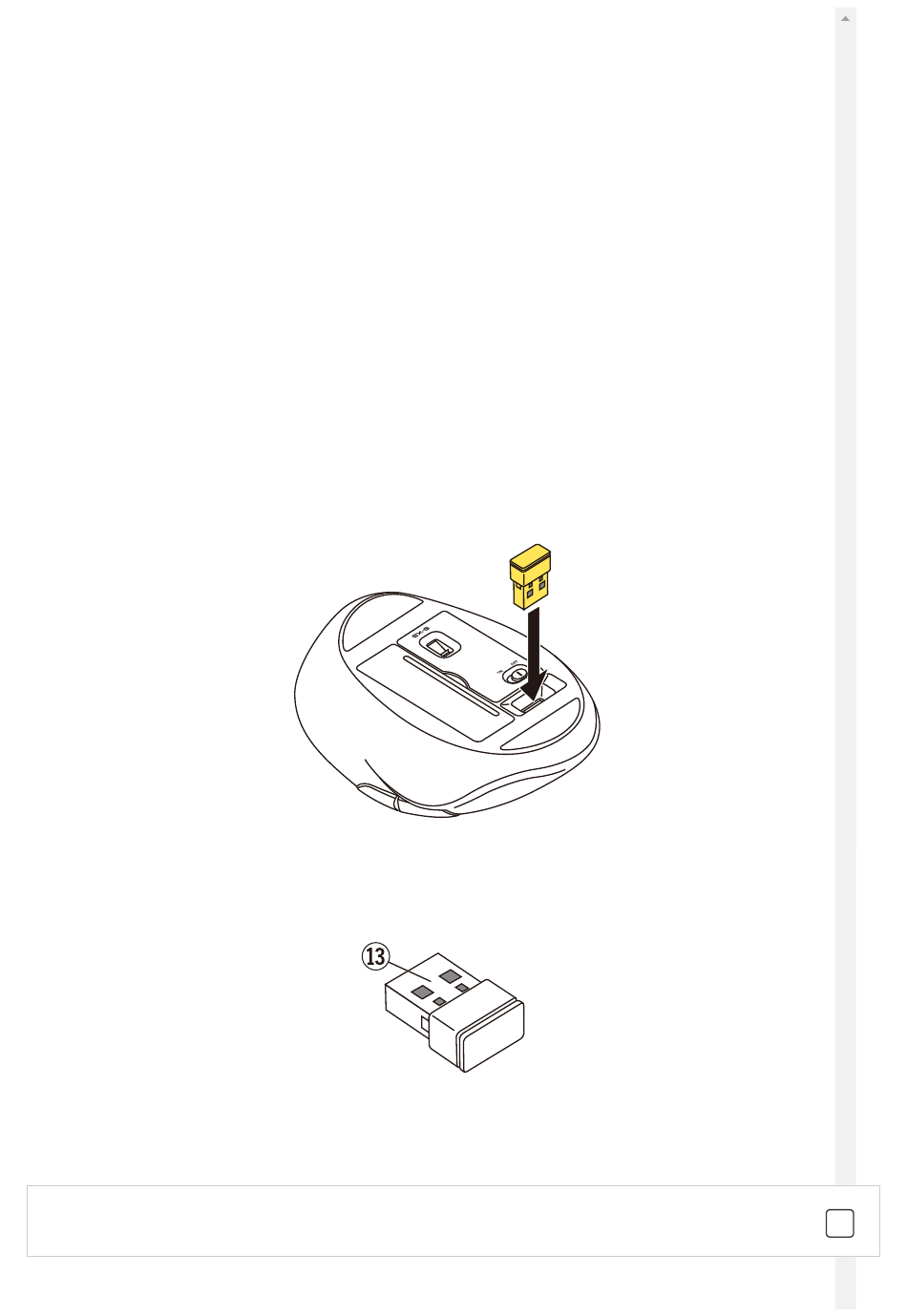

⑫ Receiver unit storage compartment
The receiver unit can be stored here when the mouse is not in use.

Receiver unit

⑬ USB connector (male)
Connects to the PC USB-A port
