Elecom M-XGS50MBSK Series User Manual

Ergonomic mouse, multi-device bluetooth or wireless usb, silent click 8 button, 1000/2000 dpi, rechargeable, high-speed scroll tilt, for windows, macos, laptop, pc, tablet

Hide thumbs

page of 78

/ 78
Troubleshooting
Bookmarks

Quick Links

Download this manual

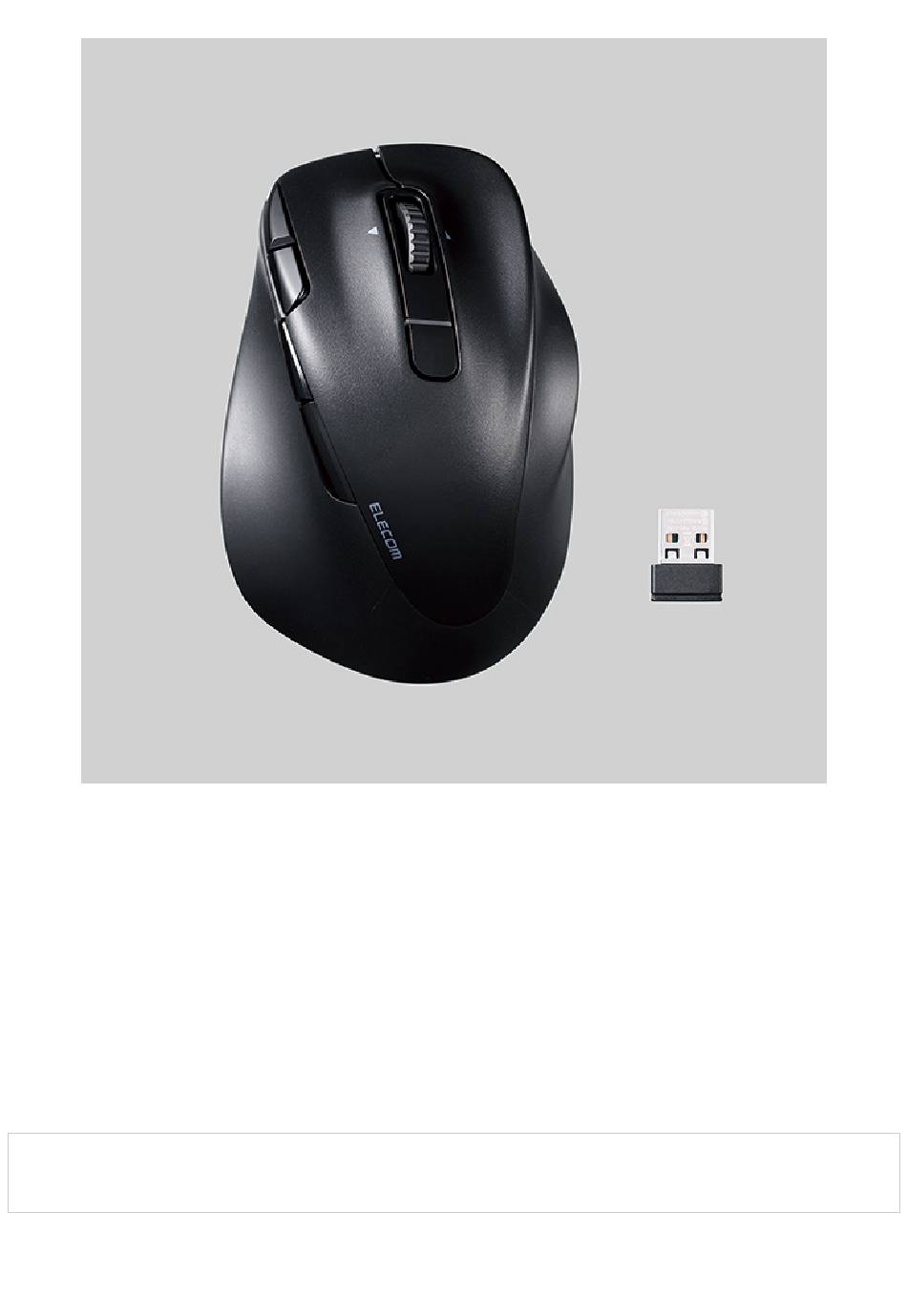

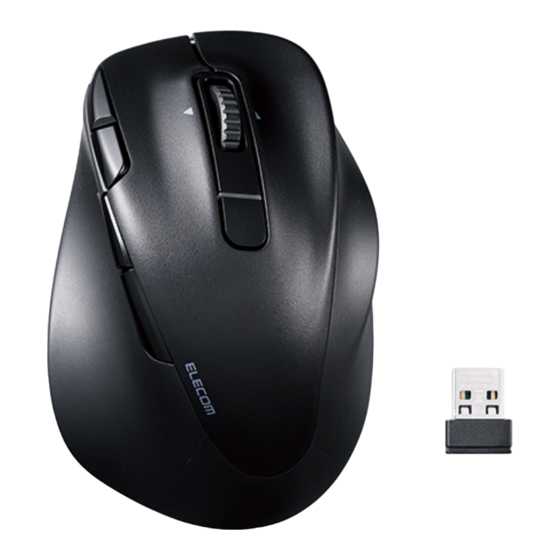

Wireless Mouse

M-XGS50MBSK series (S size)

M-XGM50MBSK series (M size)

M-XGL50MBSK series (L size)

M-XGXL50MBSK series (XL size)

User Manual

Compliant model: M-XGXL50MBS, E01A

Precautions

This manual describes the important precautions you should take for safe operation of this

product.

Table of Contents

Need help?

Do you have a question about the M-XGS50MBSK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elecom M-XGS50MBSK Series

Page 1 Wireless Mouse M-XGS50MBSK series (S size) M-XGM50MBSK series (M size) M-XGL50MBSK series (L size) M-XGXL50MBSK series (XL size) User Manual Compliant model: M-XGXL50MBS, E01A Precautions This manual describes the important precautions you should take for safe operation of this product.
Page 2: Meaning Of Symbols
Observe these precautions carefully to avoid personal injury, damage, ﬁre, and other problems. Meaning of symbols DANGER Failure to adhere to the precautions listed here carries the high risk of severe injury or death due to ﬁre, electric shock, or other causes. WARNING Failure to observe precautions carries the possibility of serious personal injury or death due to ﬁre, electric shock, or other causes.
Page 3 If you or your clothes come into contact with any liquid from this product, wash with clean water. If liquid from the built-in rechargeable battery comes into contact with the skin, it can lead to skin damage. Liquid from the built-in rechargeable battery can cause blindness if it enters the eye. If the liquid enters the eye, do not rub it.
Page 4: Cleaning The Product
In a car exposed to sunlight or a place exposed to direct sunlight. In a place that becomes hot, such as around a heater. In a moist place or a place where condensation may occur. In an uneven place or a place exposed to vibration. In a place where a magnetic field is generated (such as near a magnet.) In a dusty place.
Page 5 Do not use organic solvents or ultraviolet lights. Usage can result in deterioration of the housing components or paints, which can cause damage to the exterior. We recommend the usage of disposable gloves. When using any alcohol-based products, please check that it is appropriate for the speciﬁc purpose and that it is used properly.
Page 6: How To Use
Civil Aeronautics Act. Turn off the power of the wireless mouse before boarding and do not use after boarding. * ELECOM is not liable for any accidents or any indirect or consequential damage incurred due to the failure of this product.
Page 7 You can scroll horizontally by tilting the wheel to the left or right. You will need to install the “ELECOM Mouse Assistant Windows version” from our website to use the left and right scroll function on Windows. Please refer to “Install ELECOM Mouse...
Page 8 You will need to install the “ELECOM Mouse Assistant Mac version” from our website to use the “Back” and “Forward” button on Mac. Refer to “Install ELECOM Mouse Assistant”. ⑥ Multi-function button 1 ⑦ Multi-function button 2 ⑧ Multi-function button 3 Functions can be assigned to this button.
Page 9: Receiver Unit
Connect the included USB charger cable to charge the mouse. ⑫ Optical sensor The LED light will light up blue when the power is on. This sensor will detect mouse movements when you move the mouse. * Please note that looking directly into the sensor light may hurt your eyes. ⑬...
Page 10: Charge The Battery
⑰ USB connector (male) Connects to the PC USB-A port Switch connected device This product can be used to switch between a Bluetooth device and a wirelessly connected device. Switch between connected devices in the following way. 1) Press the CONNECT button to switch between connected devices. When the connected device is , the LED light is blue.
Page 11 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector.
Page 12: Turn The Power On
It will take approximately 5 hours until full charge. If the LED light does not stop blinking even after the prescribed charging time, remove the charging USB cable and stop charging for the moment. Otherwise, this can cause overheating, rupturing or ﬁres. Turn the power ON 1) Slide the power switch on the underside of the product to the ON position.
Page 13 Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them. This section covers Windows standard Bluetooth functions. Depending on your device or Bluetooth adaptor, unique Bluetooth functions may be used. Please read the respective manuals for each function.
Page 14 3) Click on “Add device”. 4) Using the CONNECT button, select the device ( ) you want to connect to. The LED light and the status light will light up blue for 3 seconds. Please refer to “Switch connected device” to switch between connected devices.
Page 15 6) When the add device screen is displayed, hold down the CONNECT button on the underside for 3 seconds and then release. Pairing mode will be activated and the status light will blink blue. 7) Click on “ELECOM OpticalMouse”. Pairing begins.
Page 16 8) When the message changes to “Your device is ready to go!”, click “Done”. 9) Pairing is complete when this product is added to “Bluetooth & devices” and the status is “Connected”.
Page 17 You can now use the mouse. By downloading and installing the “ELECOM Mouse Assistant” from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse Assistant”. Using wireless connection...
Page 18 Connecting to a PC Connecting to a portable USB charger Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury. Do not touch the terminal portion of the USB connector.
Page 19 Turn the power ON 1) Slide the power switch on the underside of the product to the ON position. The LED light will light up for a period of time. * When the battery level is running low, the LED light will blink for a period of time. Power-saving mode When the mouse is left untouched for a ﬁxed period of time while the power is ON, it automatically shifts to power-saving mode.
Page 20 4) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. By downloading and installing the “ELECOM Mouse Assistant” from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse...
Page 21 2) Click on “Bluetooth & devices” and then “Mouse”. 3) Adjust the “Mouse pointer speed” slider bar to adjust the mouse pointer movement speed. ■ For Windows 10 1) Open “Mouse” properties. From the start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
Page 22 Change the number of lines scrolled in one wheel turn ■ For Windows 11 1) Right click on “Start” on the bottom of the screen and click on “Settings”. The “Settings” page will appear. 2) Click on “Bluetooth & devices” and then “Mouse”. 3) Adjust the “Lines to scroll at a time”...
Page 23 ■ For Windows 10 1) Open “Mouse” properties. From the start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options” under “Related Settings”. 2) Select the “Wheel” tab. 3) Change the value of “The following number of lines at a time” under “Roll the wheel one notch to scroll”...
Page 24 Using Bluetooth connection Charge the battery 1) Connect the rechargeable USB Type-C connector of the included charging cable to the USB Type-C port of this product. 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger...
Page 25 Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury. Do not touch the terminal portion of the USB connector.
Page 26 When the mouse is left untouched for a ﬁxed period of time while the power is ON, it automatically shifts to power-saving mode. The mouse returns from power-saving mode when it is moved. * Mouse operation may be unstable for 2-3 seconds after returning from the power-saving mode.
Page 27 4) During the device search, hold down the CONNECT button on the underside for 3 seconds and then release. Pairing mode will be activated and the status light will blink blue. 5) When “ELECOM OpticalMouse” is detected under “Nearby Devices”, click “Connect”. Pairing begins.
Page 28 6) Pairing is complete when the status of “ELECOM OpticalMouse” changes to “Connected”. You can now use the mouse. By downloading and installing the “ELECOM Mouse Assistant” from our company website, functions such as button assignment function and presentation mode can be used.
Page 29 Using wireless connection Charge the battery 1) Connect the rechargeable USB Type-C connector of the included charging cable to the USB Type-C port of this product. 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger...
Page 30 Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury. Do not touch the terminal portion of the USB connector.
Page 31 The LED light will light up for a period of time. * When the battery level is running low, the LED light will blink for a period of time. Power-saving mode When the mouse is left untouched for a ﬁxed period of time while the power is ON, it automatically shifts to power-saving mode.
Page 32 4) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. By downloading and installing the “ELECOM Mouse Assistant” from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse...
Page 33: Iphone, Ipad
2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer. Unchecking “Natural scrolling” will cause the scroll direction to be reversed. iPhone, iPad Charge the battery 1) Connect the rechargeable USB Type-C connector of the included charging cable to the USB Type-C port of this product.
Page 34 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector.
Page 35 It will take approximately 5 hours until full charge. If the LED light does not stop blinking even after the prescribed charging time, remove the charging USB cable and stop charging for the moment. Otherwise, this can cause overheating, rupturing or ﬁres. Turn the power ON 1) Slide the power switch on the underside of the product to the ON position.
Page 36 Pairing involves registering Bluetooth devices (in this case, this product and an iPad or an iPhone) with each other, and authorizing a connection between them. Tap to operate the iPad or iPhone device until pairing is complete. The following instructions are for iPadOS Ver.16.5. 1) Tap on “Settings”...
Page 37 3 seconds and then release. Pairing mode will be activated and the status light will blink blue. 5) Tap on “ELECOM OpticalMouse” when it is detected under “DEVICES”. Pairing begins. 6) When the “Bluetooth Pairing Request” page loads, tap on “Pair”.
Page 38 7) You can use the mouse when the status shows “Connected” You can now use the mouse. Register custom actions to the buttons. Only the 2 buttons and the wheel can be used under the initial settings. Button 1: Single-Tap Button 2: Secondary Click Follow the steps below to assign all other button functions.
Page 39 1) Tap on “Accessibility” under “Settings”. 2) Tap on “Touch”. 3) Tap on “AssistiveTouch”. 4) Tap on “AssistiveTouch” to turn ON.
Page 40 Assign custom actions to the buttons. 1) Tap on “Devices” under “POINTER DEVICES”. 2) Tap on “ELECOM OpticalMouse”.
Page 41 3) Tap on “Customize Additional Buttons...”. 4) When the “Customize Button” page loads, click on the button on the mouse to be added.
Page 42 * When adding “Button 3”. 5) A list of all assignable functions will load. Tap on the desired function to assign. * When assigning “Screenshot” to “Button 3”.
Page 43 6) A function is assigned to the button. To assign other buttons, repeat the steps above. When AssistiveTouch is OFF, the Custom Action function is disabled and only the initial right click, left click and wheel scroll functions may be used. Android Charge the battery 1) Connect the rechargeable USB Type-C connector of the included charging...
Page 44 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector.
Page 45: Pairing With An Android Device
It will take approximately 5 hours until full charge. If the LED light does not stop blinking even after the prescribed charging time, remove the charging USB cable and stop charging for the moment. Otherwise, this can cause overheating, rupturing or ﬁres. Turn the power ON 1) Slide the power switch on the underside of the product to the ON position.
Page 46 Pairing involves registering Bluetooth devices (in this case, this product and an Android device) with each other, and authorizing a connection between them. Tap to operate the Android device until pairing is complete. Instructions for the Pixel Tablet (Android 13) are as follows. There may be differences depending on the OS version or device.
Page 47 5) Hold down the CONNECT button on the underside for 3 seconds and then release. Pairing mode will be activated and the status light will blink blue. 6) Tap on “ELECOM OpticalMouse” when it is detected under “Available devices”. 7) Tap on “Pair”.
Page 48 Pairing begins. 8) Pairing is complete when this product is added to “Other devices”. You can now use the mouse. Chrome OS Using Bluetooth connection Charge the battery 1) Connect the rechargeable USB Type-C connector of the included charging cable to the USB Type-C port of this product.
Page 49 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector.
Page 50 3) Turn on the power of the PC, if it has not been already switched on. The LED light will ﬂash slowly when charging begins. It turns oﬀ when charging is complete. It will take approximately 5 hours until full charge. If the LED light does not stop blinking even after the prescribed charging time, remove the charging USB cable and stop charging for the moment.
Page 51 Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them. This section covers Chrome OS standard Bluetooth functions. Depending on your device, unique Bluetooth functions may be used. Please read the respective manuals for each function. Use your current mouse or the touchpad on your device to operate your device until pairing is complete.
Page 52 5) During the device search, hold down the CONNECT button on the underside for 3 seconds and then release. Pairing mode will be activated and the status light will blink blue.
Page 53 6) Click on “ELECOM OpticalMouse”. Pairing begins. 7) “ELECOM OpticalMouse connected” will be displayed at the bottom of the screen.
Page 54 Click “Bluetooth” like in step 2. Pairing is complete when “ELECOM OpticalMouse” appears under “Currently connected”. You can now use the mouse. Using wireless connection Charge the battery 1) Connect the rechargeable USB Type-C connector of the included charging cable to the USB Type-C port of this product.
Page 55 2) Connect the USB-A connector on the included charging cable to the USB-A port on your PC or a portable USB charger. Connecting to a PC Connecting to a portable USB charger Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector.
Page 56 3) Turn on the power of the PC, if it has not been already switched on. The LED light will ﬂash slowly and charging begins. It turns oﬀ when charging is complete. It will take approximately 5 hours until full charge. If the LED light does not stop blinking even after the prescribed charging time, remove the charging USB cable and stop charging for the moment.
Page 57 Please wait until your PC has started up and can be operated. 2) Using the CONNECT button, select the device ( ) you want to connect The LED light and the status light will light up white for 3 seconds. Please refer to “Switch connected device”...
Page 58 4) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.
Page 59 Mouse Assistant must be installed. “ELECOM Mouse Assistant” is a software that allows you to use the mouse more eﬀectively. Using ELECOM Mouse Assistant, users can set the functions they want to the unique buttons and use them to perform the operations they want.
Page 60: Specifications
here > The download page is Speciﬁcations Connector type USB Type-A plug Connection method USB 2.4 GHz wireless / Bluetooth® wireless Bluetooth® standard Bluetooth 5.0 Class 2 Conformity standards HOGP (HID Over GATT Proﬁle) Supported OS (Windows) Windows 11,Windows 10 Supported OS (Android) Android 12 to 13 Supported OS (macOS)
Page 61 M-XGL50MBSK series: L size M-XGXL50MBSK series: XL size External dimensions (main M-XGS50MBSK series: approximately width 71 mm × length 108 unit) mm × height 52 mm / width 2.8 in. × length 4.3 in. × height 2.0 M-XGM50MBSK series: approximately width 75 mm × length 114 mm ×...
Page 62: Troubleshooting
Environmental EU RoHS compliant (10 substances), environmentally friendly Considerations package Troubleshooting When disinfecting the mouse IMPORTANT Do not spray any liquid onto the product directly. Doing so can cause electric malfunctions. Never apply hot water. Doing so can cause electric malfunctions. Do not use organic solvents or ultraviolet lights.
Page 63 Non-magnetic surface (such as wooden desks): approximately 10 m Magnetic surface (such as steel desks): approximately 3 m * These values were obtained in ELECOM's test environment and are not guaranteed. The 2.4 GHz band signal may be shorter depending on the environment you use it in.
Page 64 2) Click “Bluetooth”. 3) Check the manufacturer of the Bluetooth function installed on your PC.
Page 65 The following steps illustrate the procedure when the Bluetooth function is manufactured by Intel® Corporation. For other manufacturers or if you do not know the manufacturer, check the user manual of your PC or contact the manufacturer of your PC for instructions on how to update the Bluetooth driver.
Page 66 7) Click “Intel Driver & Support Assistant”. 8) The Intel support page will automatically open on your browser and a list of drivers and software updates that can be used on your PC will be displayed. 9) Download “Intel® Wireless Bluetooth” from the list if available. * The display on your browser may change depending on your PC environment and support page updates.
Page 67 ⑧ Please change the connection of the receiver unit. Depending on the speciﬁcations of the PC's USB port or USB hub, other USB 3.0 devices used simultaneously with the mouse may generate noise that can worsen the 2.4 GHz signal in the vicinity.
Page 68 On Windows, in order to reduce power consumption depending on the PC, the power of the USB-connected product is set to turn oﬀ automatically. You can change the settings in the following ways: For Windows 11 1) Click the “Start” button at the bottom of the screen. 2) Click “All apps”.
Page 69 4) Double-click “Control Panel”. 5) Click “System and Security”.
Page 70 6) Click “Power Options”. 7) Click “Change plan settings” to the right of the item selected in “Power Plan”. 8) On the “Edit Plan Settings” screen, click “Change advanced power settings”.
Page 71 9) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB selective suspend setting”. 10) In the drop box next to “Setting”, select “Disabled”. If you are using a laptop, there are two items instead of “Settings”: “On battery” and “Plugged in”.
Page 72 11) Click “OK” to conﬁrm the settings. 12) Click the “×” (close) in the upper right corner to close “Edit Plan Settings”. For Windows 10 1) Right-click the Start button at the bottom left of the screen, click “Power Options”, and then click “Additional power settings”...
Page 73 4) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB selective suspend setting”. 5) In the drop box next to “Setting”, select “Disabled”. If you are using a laptop, there are two items instead of “Setting”: “On battery” and “Plugged in”.
Page 74 6) Click “OK” to conﬁrm the settings. 7) Click the “×” (close) in the upper right corner to close “Edit Plan Settings”. Compliance status Model/모델명: M-XGXL50MBS, E01A www.elecom.co.jp/global/certiﬁcation/ China / 中国 Korea / 대한민국 Singapore Taiwan / 台灣 Vietnam / Việt Nam...
Page 75: Intellectual Property Rights
Speciﬁcations and external appearance of this product may be changed without prior notice for the purpose of product improvement. ELECOM is not responsible for any damages to, or failure of other devices caused by using this product. The images are for illustration purposes only and may diﬀer from your actual product.
Page 76 Las especiﬁcaciones y la apariencia externa de este producto pueden modiﬁcarse sin previo aviso con el ﬁn de mejorar el producto. ELECOM no se hace responsable de los daños o fallos de otros dispositivos causados por el uso de este producto.
Page 77 As especiﬁcações e aparência externa deste produto podem ser alteradas sem aviso prévio para ﬁns de melhoria do produto. A ELECOM não é responsável por quaisquer danos ou falhas de outros dispositivos causados pelo uso deste produto. As imagens são apenas para ﬁns ilustrativos e podem diferir do produto real.
Page 78 일본 외 다른 국가에서 구입하는 고객은 문의 사항이 있는 경우 제품 구입 국가의 대리점에 연락하 십시오. ‘ELECOM CO., LTD.(일본)’는 일본 이외의 국가에서 구입 또는 사용 문의에 대한 고객 지원을 제공하지 않습니다. 또한 일본어 이외의 외국어는 지원되지 않습니다. 제품의 교환은 ELECOM 보증...
