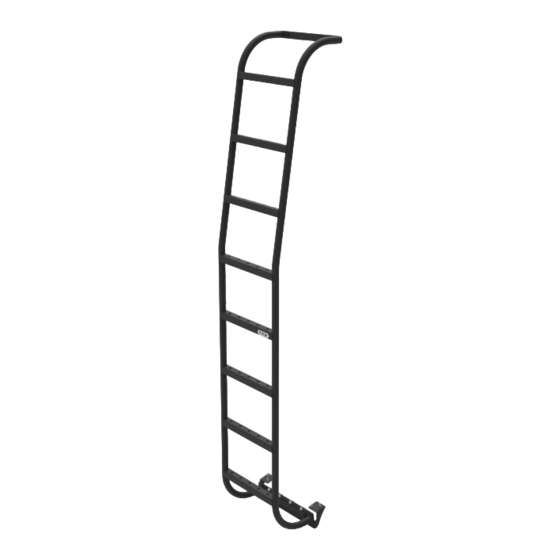

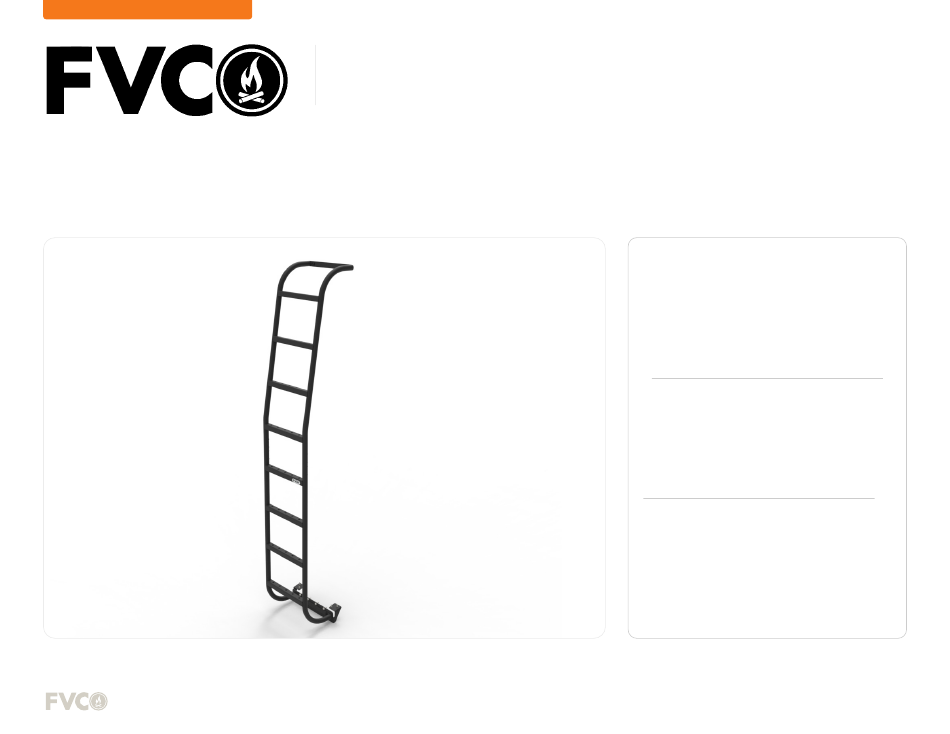

PROMASTER VAN S IDE L AD D E R
PM0 20 1B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
9/16" WRENCH OR SOCKET
+
7/16" WRENCH OR SOCKET
+
7/32" ALLEN WRENCH
+
5/32" ALLEN WRENCH
+
POWER DRILL
+
1/8" DRILL BIT
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FVC PM0201B
Summary of Contents for FVC PM0201B
- Page 1 INSTALLATION GUIDE PROMASTER VAN S IDE L AD D E R PM0 20 1B TOOLS REQUIRED (NOT INCLUDED) 9/16” WRENCH OR SOCKET 7/16” WRENCH OR SOCKET 7/32” ALLEN WRENCH 5/32” ALLEN WRENCH POWER DRILL 1/8” DRILL BIT INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS BAYONET COUPLER SUPPORT BRACKET LADDER UPPER HALF LADDER LOWER HALF QTY: 1 QTY: 1 QTY: 2 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4 X 1 HEX HEAD WITH 3/8-16 NYLON INSERT 3/8-16 X 1 BUTTON HEAD 3/8 SCREW FLAT SEALING WASHER DRILLING LOCKNUT HEX DRIVE SCREW WASHER SCREW QTY: 2 QTY: 4 QTY: 8 QTY: 8 1/4-20 X 0.75 FLANGED 3/8-16 X 1.25 BUTTON HEAD HEX 5ML THREADLOCKER BUTTON HEAD HEX DRIVE DRIVE SCREW...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: STEP | 01 LAYOUT AND INSTALL PREP 1.1 Identify Van Configuration: Our Promaster Side Ladder is designed to be mounted to our Low Pro Roof Rack (FIG 1). Identify the mounting location for your van type in FIG 2. F I G 1 PM0101B - 136”...
- Page 6 TOOLS REQUIRED FOR THIS STEP: 5/32” ALLEN WRENCH STEP | 02 SIDE LADDER ASSEMBLY 2.1 Install Bayonets to Top Ladder Half: Find the Top Half of the Side Ladder and insert Bayonets as shown in FIG 3. Secure using (2ea) 1/4-20 x 0.75 Flanged Button Head Hex Drive Screws and Loctite.
- Page 7 7/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 9/16” SOCKET OR WRENCH STEP | 02 SIDE LADDER ASSEMBLY 2.3 Attach Mounting Bracket: Take the Mount Plate and loosely attach to the bottom of the ladder using two (2) 3/8-16 X 1” Screws, 3/8 Flat Washers and 3/8-16 Nylock Nuts (FIG 7-9).
- Page 8 TOOLS REQUIRED FOR THIS STEP: STEP | 03 SIDE LADDER INSTALL ROOF RAIL 3.1 Position Side Ladder: Seat the Mount Plate up to the Pinch Seam of your van (FIG 11) and position the Side Ladder into its mounting location along the Roof Rail (FIG 12). PINCH SEAM F I G 10 DRILL HERE...
- Page 9 TOOLS REQUIRED FOR THIS STEP: 9/16” WRENCH OR SOCKET 7/32” ALLEN WRENCH STEP | 03 SIDE LADDER INSTALL 3.2 Install to Roof Rail: Next, loosely bolt the Side Ladder to the mount slots on the side of your Low Pro Roof Rack using two (2ea) 3/8-16 x 1.25 Button Head Screws, 3/8”...
- Page 10 TOOLS REQUIRED FOR THIS STEP: POWER DRILL 1/8” DRILL BIT 9/16” WRENCH OR SOCKET 7/32” ALLEN WRENCH 7/16” WRENCH OR SOCKET 5/32” ALLEN WRENCH STEP | 03 SIDE LADDER INSTALL 3.3 Positioning and Alignment: Slide the Mount Plate up as tight to the Pinch Seam as you can (FIG 15) and temporarily tighten the two bolts holding it to the Ladder while you check alignment.
- Page 11 TOOLS REQUIRED FOR THIS STEP: 9/16” WRENCH OR SOCKET 7/32” ALLEN WRENCH 7/16” WRENCH OR SOCKET 5/32” ALLEN WRENCH STEP | 03 SIDE LADDER INSTALL 3.5 Tighten Down All Fasteners: Go back and tighten down your fasteners along the Roof Rail and Mounting Bracket. F I G 18 F I G 19 F L AT L I N E VA N C O •...
- Page 12 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
