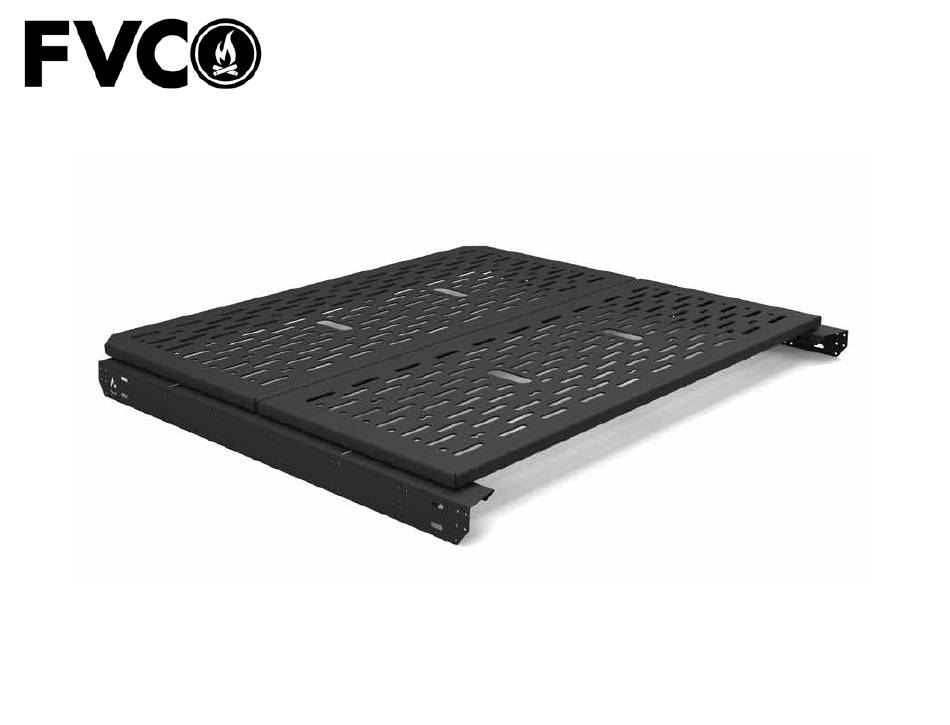

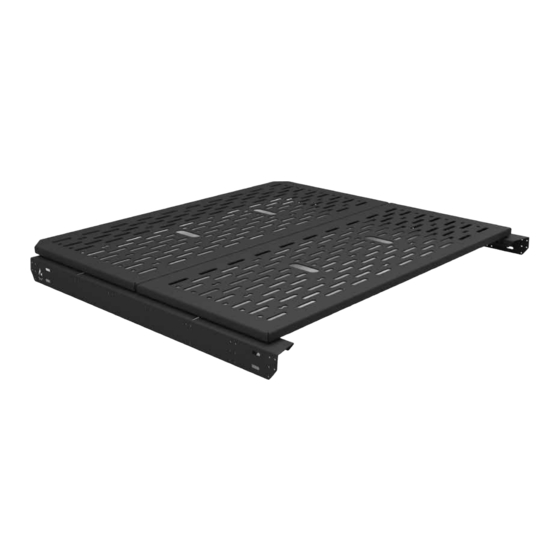

- Page 1 Installation Guide ProMaster Bed System PM0301B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW PROMASTER BED SYSTEM? HERE ARE A FEW TOOLS THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS BED PANEL REAR BED PANEL QTY - 1 QTY - 1 PASSENGER SIDE BED RAIL DRIVER SIDE BED RAIL QTY - 1 QTY - 1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... -
Page 5: Hardware Pack
HARDWARE PACK 3/8-16 X 1 SOCKET HEAD 3/8 SCREW CUSHION 3/8 SCREW FLAT WASHER HEX DRIVE SCREW WASHER QTY - 4 QTY - 4 QTY - 4 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... -
Page 6: Let's Get Started
LET’S GET STARTED! THE BED RAILS HAVE MULTIPLE MOUNTING HOLES AND STYLES TO COVER A RANGE USER DETERMINED MOUNTING STYLES. BELOW IS A DIAGRAM DETAILING THE BED RAIL. WE HAVE PROVIDED A LARGE AMOUNT OF 1/4” CLEARANCE HOLES (LABELED DIY MOUNT HOLES) FOR USERS CHOOSING TO MOUNT THE BED RAIL DIRECTLY TO THE VAN CHASSIS, AND THESE ARE SIZED FOR A 1/4-20, M6, OR #14 SELF DRILLING SCREW. - Page 7 DIY BRACKET MOUNTING PLEASE REFER TO THE DIY BED BRACKET KIT INSTALLATION MANUAL FIRST BEFORE ATTEMPTING TO INSTALL THE BED SYSTEM. WITH THE BED BRACKET INSTALLATION YOU WANT TO HOLD THE BED RAIL UP AT THE DESIRED HEIGHT (YOU CAN MARK WITH PAINTERS TAPE TO DOUBLE CHECK IF PREFERRED) AND THEN INSERT THE HARDWARE PROVIDED WITH THE DIY BED BRACKET KIT AS SHOW IN THE IMAGE TO THE RIGHT.
- Page 8 L-TRACK MOUNTING IF YOU’VE INSTALLED L-TRACK ONTO YOUR DIY BED BRACKET KIT (MORE INFO PROVIDED IN DIY BED BRACKET KIT INSTALL GUIDE) THEN YOU WILL FOLLOW THE SAME PROCEDURE AS MENTIONED IN PREVIOUS PAGE WITH THE EXCEPTION OF MOUNTING YOUR L-TRACK ANCHORS FIRST.
- Page 9 ONCE YOU HAVE YOUR BED RAILS UP AND FULLY MOUNTED, YOU CAN SIMPLY PLACE THE BED PANELS ON AND FASTEN THEM USING THE 3/8-16 SOCKET HEAD SCREWS, 3/8 FLAT WASHER, AND 3/8 CUSHIONING WASHER, IN THAT ORDER (SEE FIGURE 1) FIGURE 1 •...
- Page 10 THE DIAGRAM BELOW PROVIDES OVERALL DIMENSIONS OF THE BED PANELS. 68.5” - 74” 60” FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 11 GET OUT AND EXPLORE! LEAVE US A REVIEW Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave Review." Add a short review and upload a few photos to be showcased on the product page.
