4.33"
1.97"
Recommended Spread Width
5" - 8"
Approx. 24" long hose with 1/2" FIP ttings
Luxier
Roman Tub Faucet with Hand Shower
Model Number:
RTF17-TB
RTF17-TC
RTF17-TM
RTF17-TO
7.7"
6"
2.17"
Recommended Spread Width
6" - 8"
1.5"
1.5"
hole size
hole size
Features:
- Drip Free Ceramic Cartridge
(Brushed Nickel)
- Hand shower flow rate 1.8 gpm at 60 psi
(Chrome)
- Tub spout flow rate 7.0 gpm at 60 psi
(Matte Black)
(Oil Rubbed Bronze)
- Complies with:
1.97"
1.5"
hole size

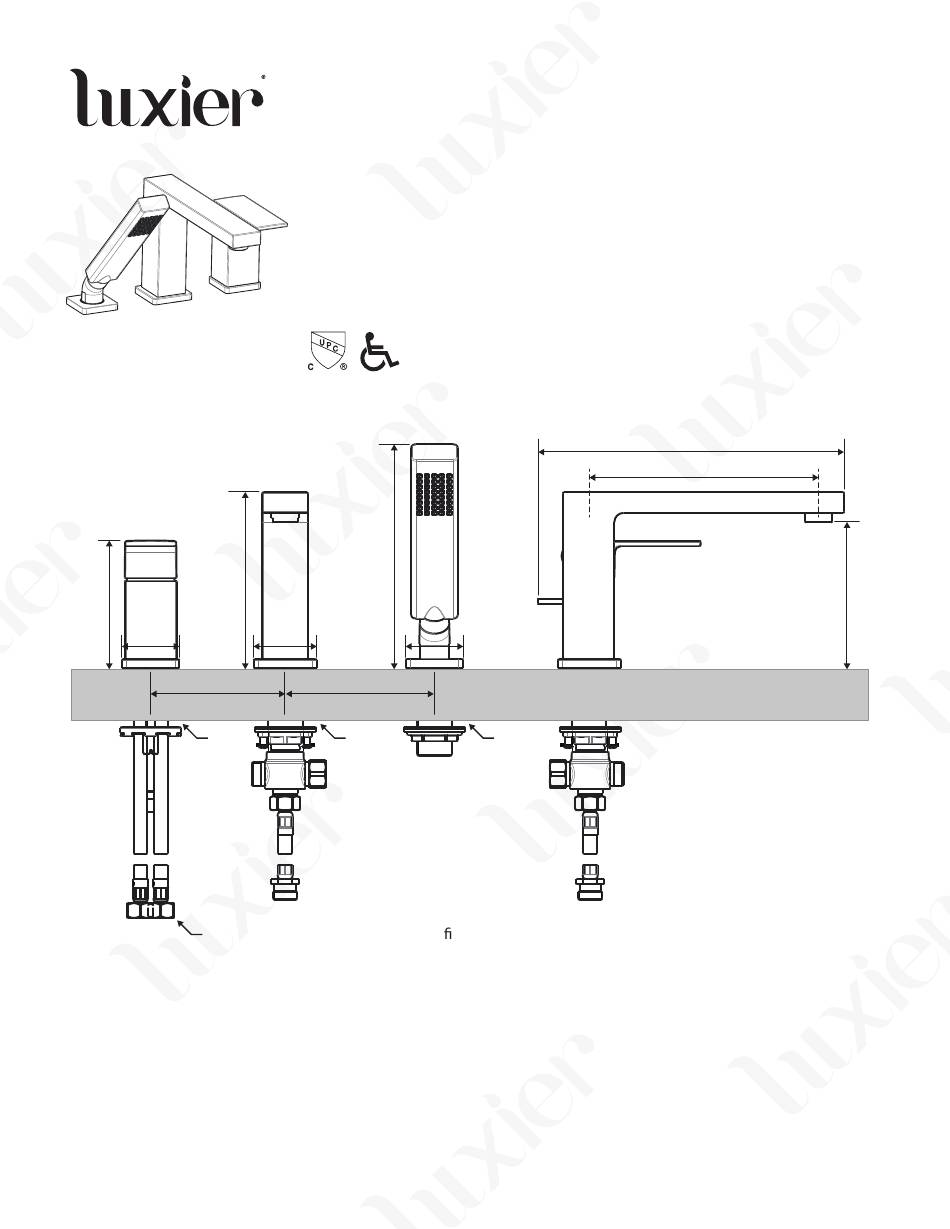

* Drawing not to scale. All measurements are approximate *
1
IAPMO / UPC / cUPC
ADA
10.5"
8"
Max. Deck Thickness 1.75"
5"
RTF17 Rev.2 01/2024
Advertisement
Related Manuals for Luxier RTF17-TB
Summary of Contents for Luxier RTF17-TB
- Page 1 Roman Tub Faucet with Hand Shower Model Number: Features: RTF17-TB - Drip Free Ceramic Cartridge (Brushed Nickel) - Hand shower flow rate 1.8 gpm at 60 psi RTF17-TC (Chrome) - Tub spout flow rate 7.0 gpm at 60 psi RTF17-TM...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
-
Page 3: Important Points
• When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier RTF17 Rev.2 01/2024... -
Page 4: Installation
C Shape Rubber Washer, C Shape Base. Insert the base through the other end of the hose into the Hand Metal Washer and Locking Nut. deck hole and secure it with the Shower Base. washer and the locking nut. Luxier RTF17 Rev.2 01/2024... - Page 5 Shower from its base and direct the jets into the tub. Move the Diverter Lever up to divert water to the Hand Shower. Return the Diverter Lever to its original position to divert the water back to the Tub Spout. Luxier RTF17 Rev.2 01/2024...
-
Page 6: Troubleshooting
10. C Shape Rubber Washer 23. Washer 34. Hand Shower Hose 11. C Shape Metal Washer 24. Cap 35. Rubber Washer 12. Locking Nut 36. Aerator 13. Hot and Cold Water Supply Hoses* 37. Aerator Cap Luxier RTF17 Rev.2 01/2024...
