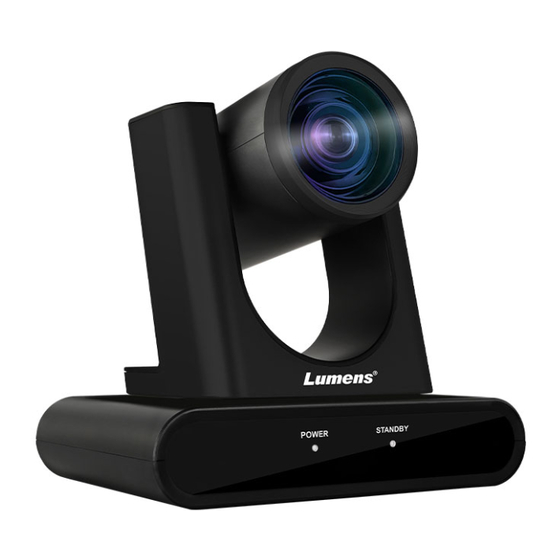

- Page 1 VC-R31 HD Camera (PTZ Video Camera) User Manual - English Version VUE100 [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Package Contents ....................2 Chapter 2 Product Overview and Interface ................. 3 2.1 I/O functions Introduction ................... 3 2.2 Description of LED indicator ................4 Chapter 3 Instruction for installation ..................5 3.1 Preparation before installation ................5 3.2 Instruction for installation .................. -
Page 3: Chapter 1 Package Contents
Chapter 1 Package Contents VC-R31 3-PIN to 2-PIN connector Remote Control (For Japan only) USB 3.0 Cable Power Cord Power Adapter (TypeA-B, 2m) Appearance may vary depending on country/ region English... -
Page 4: Chapter 2 Product Overview And Interface
Chapter 2 Product Overview and Interface I/O functions Introduction Front View Back View Item Function Descriptions Camera lens Camera lens Power/Standby LED Display the status of the camera indicator The USB port is for connecting to the USB port of the USB3.0 Port computer and providing USB signal images HDMI output... -
Page 5: Description Of Led Indicator
2.2 Description of LED indicator Status Power Standby Powered off (power not connected) No indicator No indicator Initialization Green Amber Power on completed (In use) Green No indicator In standby mode No indicator Amber Privacy Mode Amber No indicator Auto Framing mode Green (slow flickering) Green (slow flickering) English... -
Page 6: Chapter 3 Instruction For Installation
Chapter 3 Instruction for installation 3.1 Preparation before installation Installation and connection of HD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident. 3.1.1 Ensure the safety of the installation environment. - Page 7 Install on the ceiling Install on the wall 3.2.3 Camera Size Length x Width x Height: 190 x 137.4 x 185mm Weight: 1.5 Kg English...
-
Page 8: Connecting Devices
Connecting devices Network cable port, supporting PoE (IEEE802.3af) power supply. English... - Page 9 Connect to computer with a USB3.0 cable, and you can view images with video software, such as, Skype, Zoom and Microsoft Teams 3.3.2 RS-232 Connection With RS-232 in/out, at most 7 Lumens cameras can be connected. RS-232 pins definition instructions English...
-
Page 10: Chapter 4 Introduction Of Remote Control And Menu
Manual: Enable Manual Focus Focus Far/Near: Adjust the focal length in ➒ ⓮ Manual ➓ VC-R31 not support this function. Auto Tracking L/R Direction / Normal L/R Direction Set Rotate the image (OFF / Mirror / Flip / Mirror Rotate) -
Page 11: Menu
Menu Press [MENU] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Full Auto/ Shutter Mode Pri/ Iris Pri/ Manual/ Exposure mode setting White Board Spot Light On/ Off... - Page 12 1st Level 2nd Level 3rd Level Function Descriptions Image Mode Adjustable when the is set Brightness 0~C~15 Custom Image Mode Adjustable when the is set 0~C~15 Custom Image Mode Adjustable when the is set Saturation 0~C~15 Custom Image Mode Adjustable when the is set 0~C~3 Gamma...
- Page 13 1st Level 2nd Level 3rd Level Function Descriptions When the audio is not synchronized with Audio Delay On/ Off the video, enable this function to set the audio delay time Audio Delay Time(ms) -10~-500ms Set audio delay time 48 KHz(AAC) Encode Sample Rate Set the encode type and sample rate Prompt...
-
Page 14: Chapter 5 Network Function Settings Description
Chapter 5 Network Function Settings Description Web System Requirements Operating System Version Browser FireFox 7 (64 bits) and above Chrome Windows Edge 10 (64 bits) and above FireFox Chrome Safari 10.14 and above Chrome FireFox Connecting Camera to Network 5.2.1 Connecting to Internet Two common connection methods are shown below 1. - Page 15 (default IP address) Enter administrator’s account and password 5.3.9 System Settings - User For the first-time login, please refer to to change the default password Lumens Network Camera Account: admin Password: 9999 (Default) 5.2.3 Using RTSP Player to View the Images...
-
Page 16: Web Interface
5.3 Web Interface 5.3.1 Login Item Function Descriptions User Name Enter user login account (default: admin) Enter user password (default: 9999) Password 5.3.9 System Settings - For the first-time login, please refer to User to change the default password Save user name and password. When logging in next time, there is Remember Me no need to re-enter them. - Page 17 5.3.6 System Settings - Output Please refer to Preview window Display the live view of the camera Preset setting Select the number first and then select STORE or LOAD Pan/Tilt setting Adjust the Pan/ Tilt position of the camera screen Zoom Zoom In/ Zoom Out ratio AF/MF...
- Page 18 Shutter Speed: Adjust the shutter speed (adjustable only under the “Manual” or “Shutter Priority” Anti-Flicker: When capturing LED lights that appear to flicker, please enable this feature according to the frequency. White Balance Mode: Select the White Balance mode ...
- Page 19 D-Zoom Limit: Set the D-Zoom Limit 2D noise reduction: 2D noise reduction settings 3D noise reduction: 3D noise reduction settings Image Mode: The user may customize his/her desired image mode Brightness: Brightness adjustment of the image; Adjustable when ...
- Page 20 Audio Delay After checking the box, set the audio delay time (10 ~ -500 ms) Apply/Cancel Apply/ Cancel Audio Setting 5.3.5 Stream Item Function Descriptions Streaming 1/ Support 2 x streaming output Streaming 2 Streaming 5.3.5.1 Streaming Parameter Setting Please refer to for relevant parameter settings...
- Page 21 5.3.5.1 Streaming parameter setting Function Streaming 1 Streaming 2 Encode Format H.264 Resolution 1080p / 720p 720p Range 2,000~20,000 2,000~20,000 Bit rate Factory 7,000 3,000 Default Rate Control CBR / VBR Frame Rate Setting according to the supported resolution Group of Pictures Setting according to the supported resolution 5.3.6 System Settings –...
- Page 22 After the function is enabled, when the camera is turned off via the Privacy Mode remote control or software, the lens will automatically turn to the (UVC) bottom right to ensure the user’s privacy Apply/Cancel Apply/ Cancel Setting 5.3.7 System Settings – Network Item Function Descriptions Network setting of camera.
- Page 23 5.3.8 System Settings - Date & Time 功能說明 Display the current camera/PC date and time, and set the display format and synchronization way. When Manually Set is selected for [Time Settings], Date & Time can be customized 5.3.9 System Settings – User 功能說明...
- Page 24 5.3.10 System Settings – Control Item Function Descriptions Protocol Supporting VISCA protocol Baud Rate Choose the transmission speed of the control signal as 9600/38400 VISCA address The camera ID address 1~7 can be assigned. Apply/ Cancel Apply/Cancel Setting Protocol Supporting VISCA protocol 5.3.11 Maintenance Item Function Descriptions...
- Page 25 Configuration upload camera setup parameters If the camera operates abnormally, the event log can be exported and Event Log provided to Lumens for reference. 5.3.12 About 功能說明 Display the firmware version, serial number, and other related information of the camera For technical support, please scan the QR code at the bottom right.
-
Page 26: Chapter 6 Troubleshooting
Chapter 6 Troubleshooting This chapter describes problems you may encounter while using VC-R31. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributors or the service center. -
Page 27: Chapter 7 Safety Instructions
Safety Instructions Chapter 7 Always follow these safety instructions when setting up and using VC-R31 PTZ Video Camera: 1 Operation 1.1 Please use the product in the recommended operating environment, away from water or source of heat 1.2 Do not place the product on a tilted or unstable trolley, stand or table. -
Page 28: Supplier's Declaration Of Conformity
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer：Lumens Digital Optics Inc. Product Name：VC-R31 Model Number：PTZ Video Camera Responsible Party – U.S. Contact Information Supplier：Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail ：support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules. -
Page 29: Copyright Information
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
