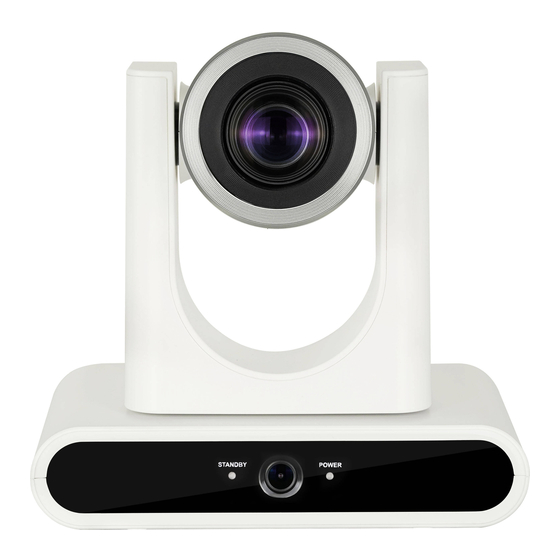

Lumens VC-TR40 User Manual

Auto tracking camera, ptz video camera
Hide thumbs Also See for VC-TR40:
Table of Contents

Advertisement

Quick Links

VC-TR40/ VC-TR40N
Auto Tracking Camera
(PTZ Video Camera)
User Manual - English
Version VXA101p
[Important]
To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
https://www.MyLumens.com/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC-TR40 and is the answer not in the manual?

Questions and answers

Related Manuals for Lumens VC-TR40

Summary of Contents for Lumens VC-TR40

  • Page 1 VC-TR40/ VC-TR40N Auto Tracking Camera (PTZ Video Camera) User Manual - English Version VXA101p [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Package Contents ...................2 Chapter 2 Product appearance ..................3 2.1 I/O functions Introduction ..................3 2.2 Description of LED indicator .................. 3 Chapter 3 Instruction for installation ................4 3.2 Preparation before installation................4 3.3 Instruction for installation ..................4 3.4 Connecting devices ....................

  • Page 3: Chapter 1 Package Contents

    Chapter 1 Package Contents RS-232/RS-422 Camera Remote Control Connection Instruction 3-PIN to 2-PIN Power Cord Power Adapter connector Appearance may vary (For Japan only) depending on country/ region USB 3.0 cable - 2 M HDMI cable - 1.5 M (Type B to Type A) English...

  • Page 4: Chapter 2 Product Appearance

    Chapter 2 Product appearance I/O functions Introduction Front View Back View ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Item Function Descriptions Main camera lens HD camera lens Panoramic lens Panoramic camera lens USB3.0 Port The USB port is for connecting to the USB port of the computer...

  • Page 5: Chapter 3 Instruction For Installation

    Scenario 3.1.1 3.1.2 Applicable distance range of VC-TR40: 2 - 12 m, best tracking target distance recommended: 8 3.1.3 Mounting height: 2 - 3 m, best height recommended: 2.4 m <Note> For maintaining the best tracking results, please avoid images of people on posters, screens,...
  • Page 6 3.3.2 I would like to install the camera on the ceiling/wall/TV stand Lumens can provide the following optional accessories. Please contact your Lumens distributer if needed for purchase  VC-WM14 3 in 1 Folding Bracket  VC-WM15 Ceiling Mounted Bracket...
  • Page 7 3.3.3 Camera Size  Length x Width x Height: 190 x 138 x 185 mm  Weight: 1.3 Kg 3.3.4 Dimensions of the bottom of the machine The camera can be mounted on a 1/4”-20 UNC PTZ tripod deck by using the lock holes on the bottom for the tripod English...

  • Page 8: Connecting Devices

    Connecting devices <Remark> Network cable port, supporting PoE (IEEE802.3af) power supply 3.4.1 RS-232 connection (up to 7 Lumens cameras) English...
  • Page 9  RS-232 pins definition instructions English...

  • Page 10: Chapter 4 Remote Control And Setting Menu

    Chapter 4 Remote Control and Setting Menu Remote Control 編號 項目 說明 ➊ Power Switch Power ⓫  Numeric Keys 0 - 9: Click to call the preset ➋  Preset: Appoint an ID (0 ~ 9) to save the current position data Preset ...

  • Page 11: Setting Menu

    Setting Menu <Remark> Press [MENU] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Full Auto/ Shutter Pri/ Iris Exposure mode setting Mode Pri/ Manual/ White Board...
  • Page 12 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Limit the right angle Pan Right Limit 0~170 Zoom Limit the left angle Pan Left Limit -170~0 Limit the upward angle Tilt UP Limit 0~90 Limit the downward angle Tilt Down Limit -30~0 After it is activated, the Pan command...
  • Page 13 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Camera IR Select setting must be the same setting as the Camera Select of IR Select 1/ 2/ 3 the remote control to control the camera When enabled, LED on the front panel Tracking Led will flash green in a slow blinking while...

  • Page 14: Chapter 5 Network Function Settings Description

    Chapter 5 Network Function Settings Description Connecting Camera to Network 5.1.1 Connecting to Internet Two common connection methods are shown below 1. Connecting via switch or router Network cable Network cable Camera Computer Switch or router 2. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera E.g.: The factory-preset default IP address of the camera is 192.168.100.100.
  • Page 15 Lumens Network Camera  Account: admin  Password: 9999 (Default) 5.1.3 Using RTSP Player to View the Images Free software can be used for RTSP connection, such as VLC, Quick Time and PotPlayer RTSP connection address formats are as follows: ...

  • Page 16: Web Page Menu Function Description

    Web Page Menu Function Description 5.2.1 Login Screen ○ ○ ○ ○ ○ Item Function Descriptions User Login Account Enter user login account (default: admin) Enter user password (default: 9999) User Password <Remark> For the first-time login, please refer to 5.2.10 System Settings - User to change the default password...
  • Page 17 Preset setting Select the number first and then select SAVE or LOAD Pan/Tilt setting Adjust the Pan/Tilt position of the camera screen Zoom Zoom In/Zoom Out ratio AF/MF Switch AF/MF Pan/ Tilt Speed Adjust the horizontal/vertical moving speed of the lens Zoom speed Adjust the zoom speed Auto Tracking...
  • Page 18 Focus  AF Sensitivity: Set automatic focus sensitivity  AF Frame: Set automatic focus range Mirror  Mirror: Set image mirroring  Flip: Set image flip  Pan/Tilt limit: Enable, and set the pan/tilt limit  Preset Speed: Set the rotation speed of the cradle head when Preset is executed Pan Tilt Zoom(PTZ) ...
  • Page 19  Saturation: Saturation adjustment of the image; Adjustable when the image mode is set to Custom  Brightness: Brightness adjustment of the image; Adjustable when the image mode is set to Custom  Gamma: Gamma Level adjustment; Adjustable when the image mode is set to Custom ...
  • Page 20 5.2.4 Tracking ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Item Function Descriptions Camera ID/location Please refer to 5.2.7 System Settings - Output Setting to display camera ID/location Preview main Display the screen currently captured by the main camera lens window <Remark>...
  • Page 21 Target Lost Time Set a delay for taking action after a tracking object is lost Target Lost Action Set the action after a tracking object is lost People Count VC-TR40 supports 6 kinds of tracking mode 18.1 Settings - Everywhere tracking ...
  • Page 22 button and set the block area  Partition Edit: Edit, save partition positions and preview the partition image. Click to enlarge the partition image, and then click the enlarge icon to cancel the preview.  Partition amount: Display total stored number of Partition. ...
  • Page 23 1. Select [Stage] for Tracking Mode, and click to access the settings 2. Select Select Zone to enter Edit mode, and click the left mouse button to frame it (yellow frame) in the panoramic preview window, determine the area and moving range. After framing, use the mouse to click the frame line to move or delete it.
  • Page 24 5.2.4.2 Partition 1. Select [Partition] for Tracking Mode, and click to access the settings 2. Click to enable the Partition edit, click the left mouse button to frame it (orange frame) in the panoramic preview window, determine the area and click to save.
  • Page 25 5.2.5 Audio ○ ○ ○ Item Function Descriptions Select to enable Audio function  Audio In: Set Line In / Mic In Audio Enable  Encode sample rate: Encode type and sample rate (48KHz(AAC)  Volume: Adjust Audio Volume Audio Delay After checking the box, set the audio delay time (10 ~ -500 ms) Apply/Cancel Apply/Cancel Audio Setting...
  • Page 26 5.2.6 Streaming ○ ○ ○ ○ ○ ○ Item Function Descriptions Streaming 1/ Supporting 2-way streaming output Streaming 2 Streaming Please refer to 5.2.6.1 Streaming Parameter Setting for relevant settings parameter setting Select to enable RTSP  Enable/Disable Multicast It is suggested to enable Multicast when the number of users online watching the live image simultaneously is more than 4 ...
  • Page 27 5.2.6.1 Streaming parameter setting Function Streaming 1 Streaming 2 Encode Format H.264 Resolution 1080p / 720p 720p Range 2,000~20,000 2,000~20,000 Bit rate Factory 7,000 3,000 Default Rate Control CBR / VBR Frame Rate Setting according to the supported resolution Group of Pictures Setting according to the supported resolution English...
  • Page 28 Stream – NDI (For VC-TR40N only) 5.2.7 Item Function Descriptions Camera ID/ Displaying ID/location according to [System] > [Output] settings Location The group name can be modified here and set with Access Manager - Receive in NDI Tool  If no group is assigned, the machine belongs to Public. As the default of Access Manager includes Public, Studio Monitor can discover this machine.
  • Page 29 System – Output Setting 5.2.8 ○ ○ ○ ○ ○ ○ Item Function Descriptions Change camera name here  Supporting 1 - 32 characters for the camera name  Please mix uppercase and lowercase letters or numbers for Camera name characters.
  • Page 30 System – Network 5.2.9 ○ ○ ○ ○ Item Function Descriptions Network setting of camera. Change of setting is available when DHCP DHCP function is closed HTTP port number Set HTTP port. The default Port value is 80 HTTPS port number Set HTTPS port.
  • Page 31 5.2.10 System – Date & Time Function Descriptions Display the current camera/PC date and time, and set the display format and synchronization way When Manually Set is selected for [Time Settings], Date & Time can be customized 5.2.11 System – User Function Descriptions Add/Modify/Delete user account ...
  • Page 32 5.2.12 System Settings – Control ○ ○ ○ ○ 4 ○ Item Function Descriptions Protocol Supporting VISCA protocol Baud Rate Choose the transmission speed of the control signal as 9600/38400 VISCA address The camera ID address 1 ~ 7 can be assigned. Select 0 for automation Tracking LED status Enable/Disable the LED in front panel flick when tracking is triggered.
  • Page 33 System Settings camera setup parameters If the camera operates abnormally, please export error log and provide it Error Log to Lumens for confirmation 5.2.14 About Function Descriptions Display the firmware version, serial number, and other related information of the camera For technical support, please scan the QRcode at the bottom right.

  • Page 34: Chapter 6 Troubleshooting

    Chapter 6 Troubleshooting This chapter describes problems you may encounter while using VC-TR40. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributors or the service center.

  • Page 35: Chapter 7 Safety Instructions

    Safety Instructions Chapter 7 Always follow these safety instructions when setting up and using VC-TR40 PTZ Video Camera: 1 Operation 1.1 Please use the product in the recommended operating environment, away from water or source of heat 1.2 Do not place the product on a tilted or unstable trolley, stand or table.
  • Page 36  “Extron IP Link Compatible Extron has developed and tested an IP Link driver for this product. Using IP Link technology, this device can be monitored, controlled and supported over a standard Ethernet network. In order to enable IP Link network connectivity and control, you must install and configure an IP Link-enabled device such as a MediaLink controller or IP Link Ethernet control interface.

  • Page 37: Supplier's Declaration Of Conformity 47 Cfr § 2.1077 Compliance Information

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer：Lumens Digital Optics Inc. Product Name：VC-TR40 Model Number：PTZ Video Camera Responsible Party – U.S. Contact Information Supplier：Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail ：support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.

  • Page 38: Copyright Information

    Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
