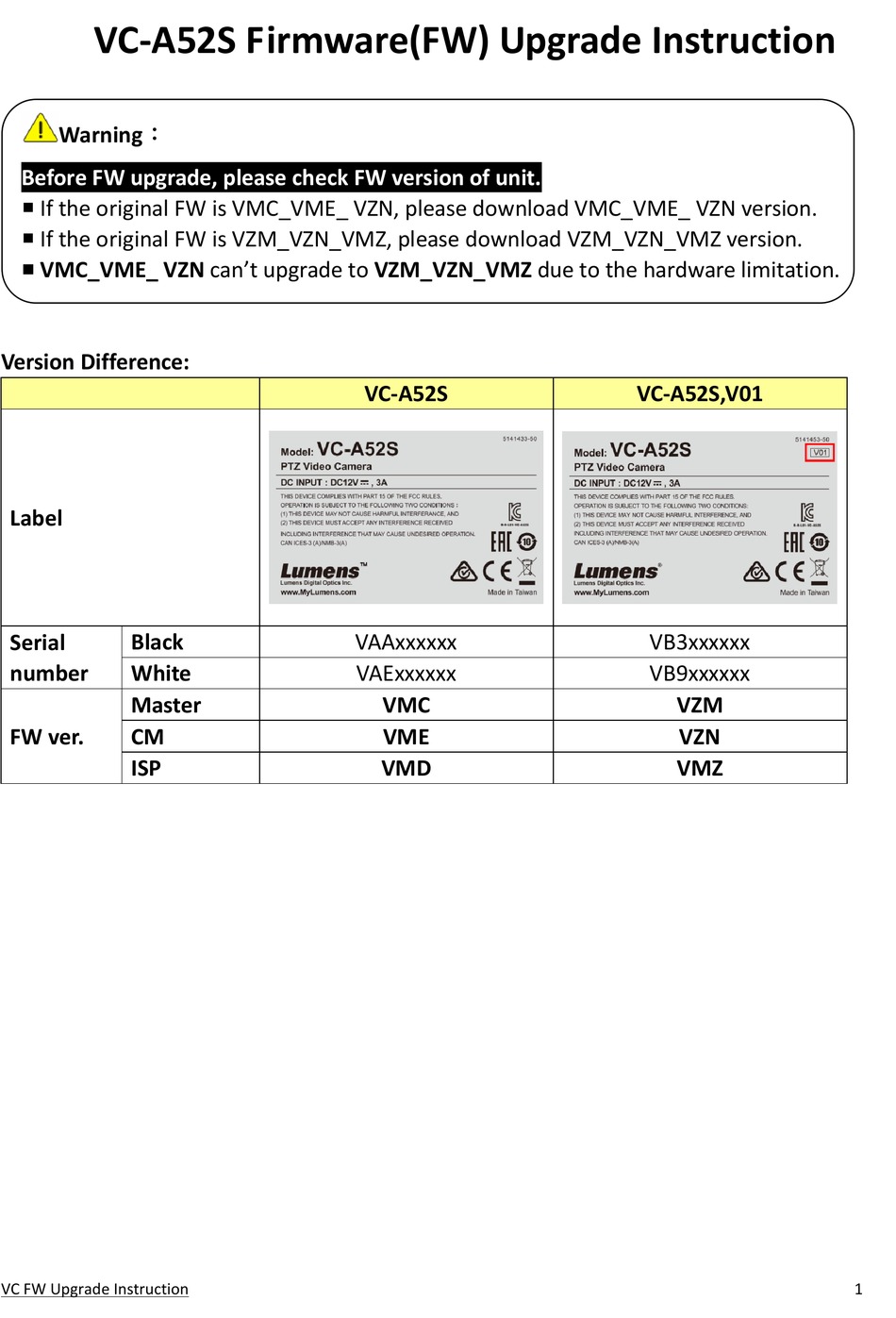

VC-A52S Firmware(FW) Upgrade Instruction
Warning：
Before FW upgrade, please check FW version of unit.
If the original FW is VMC_VME_ VZN, please download VMC_VME_ VZN version.
If the original FW is VZM_VZN_VMZ, please download VZM_VZN_VMZ version.
VMC_VME_ VZN can't upgrade to VZM_VZN_VMZ due to the hardware limitation.
Version Difference:
Label
Black
Serial
number
White
Master
FW ver.
CM
ISP
VC FW Upgrade Instruction
VC-A52S
VAAxxxxxx
VAExxxxxx
VMC
VME
VMD
VC-A52S,V01
VB3xxxxxx
VB9xxxxxx
VZM
VZN
VMZ
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lumens VC-A52S V01
Summary of Contents for Lumens VC-A52S V01
- Page 1 VC-A52S Firmware(FW) Upgrade Instruction Warning： Before FW upgrade, please check FW version of unit. If the original FW is VMC_VME_ VZN, please download VMC_VME_ VZN version. If the original FW is VZM_VZN_VMZ, please download VZM_VZN_VMZ version. VMC_VME_ VZN can’t upgrade to VZM_VZN_VMZ due to the hardware limitation. Version Difference: VC-A52S VC-A52S,V01...
- Page 2 1. Device and Tool Preparation 1.1 Please prepare following devices and tools before FW upgrade. VC Model PC with a RS232 port or Laptop RS232-USB cable RS232 cable (if connect with a laptop) (9Pin D-Sub Female to 8Pin Mini Din Male) Monitor Power adapter and power cord VC FW Upgrade Instruction...
- Page 3 2. Connections for FW upgrade **Note: OS Support: Windows XP, Windows 7, Windows 8, Windows 10 The VC FW cannot be upgraded through MAC OS. 2.1 Connect the VC camera(RS232 In) with a PC RS232 cable 2.2 Connect the VC camera(RS232 In) with a laptop Need 2 cables: RS232 cable and RS232-USB cable RS232-USB cable...
- Page 4 3. Control FW 3.1 Please refer to 2. Connections for FW upgrade 3.2 Launch the [VC-A51S_Download_AP]. 3.3 Browse and select proper FW file. - Check the box in the front for the FW you would like to update. - Click [Browse] and select the FW file VC FW Upgrade Instruction...
- Page 5 3.4 Select proper [Com Port] and set the [Baud Rate] as [9600], and then press [Download AP] to start. 3.5 FW start updating. (around 1.5min taken) The Percentage will be increased when it’s running. 3.6 When firmware upgrade finished, please unplug and reconnect the power cord to restart the camera.
- Page 6 4. Check FW version on OSD 9.1 Plug in the power cord and connect the VC camera with a Monitor. 9.2 Power on the unit and press [Menu] button on the remote control 9.3 Select [Status] 9.4 Press [ ▼ ] button to the last [System] page 9.5 Check if the FW version is correct VC FW Upgrade Instruction...
