VC-A60S Firmware(FW) Upgrade
Please contact Lumens FAE Department through e-mail to get the proper FW and AP before
upgrading.
1. Device and Tool Preparation

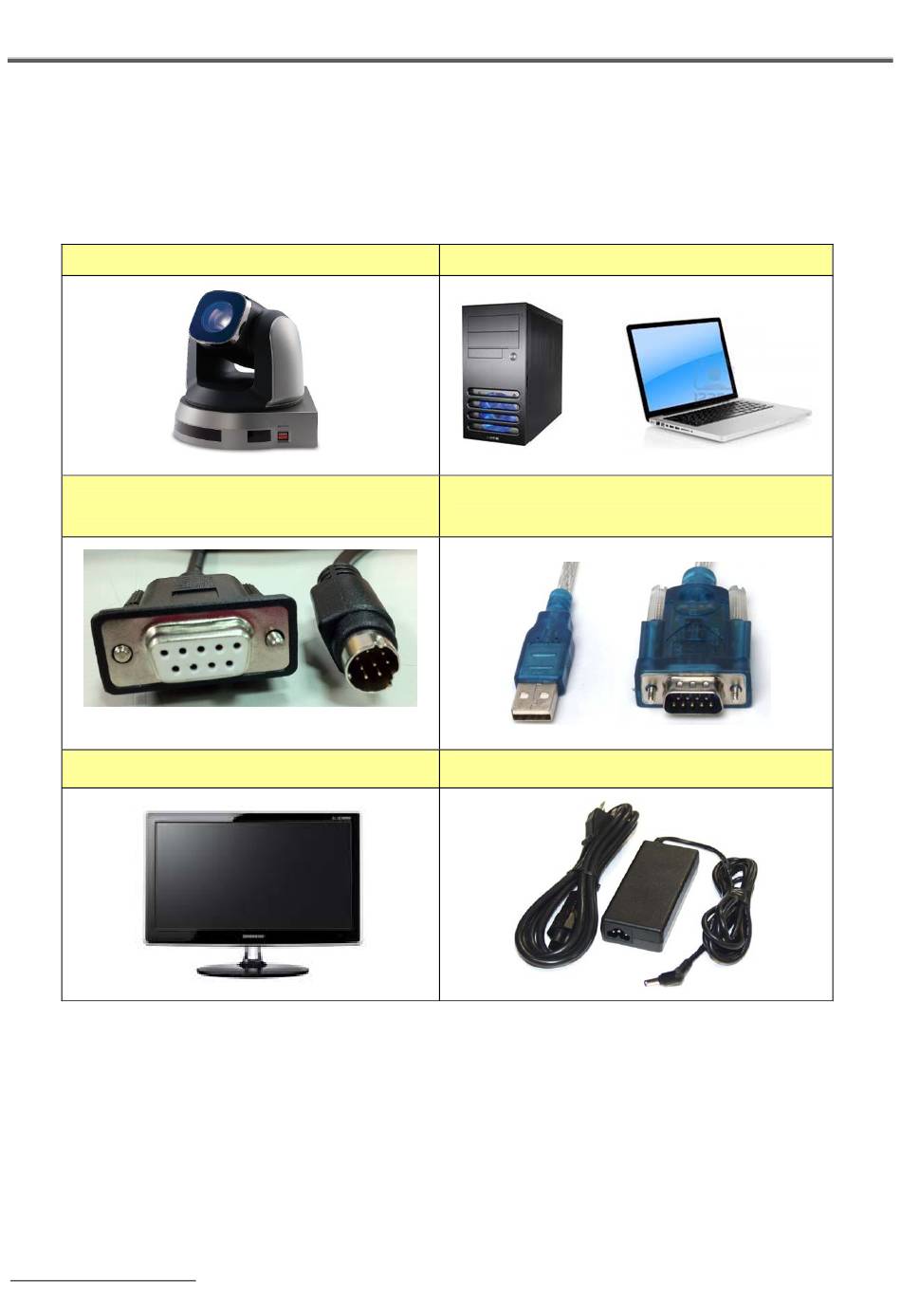

1.1 Please prepare following devices and tools before FW upgrade.
(9Pin D-Sub Female to 8Pin Mini Din Male)
VC FW Upgrade Instruction
VC Model
RS232 cable
Monitor
PC with a RS232 port or Laptop
or
RS232-USB cable
(if connect with a laptop)
Power adapter and power cord
1
Advertisement
Related Manuals for Lumens VC-A60S
Summary of Contents for Lumens VC-A60S
- Page 1 VC-A60S Firmware(FW) Upgrade Please contact Lumens FAE Department through e-mail to get the proper FW and AP before upgrading. 1. Device and Tool Preparation 1.1 Please prepare following devices and tools before FW upgrade. VC Model PC with a RS232 port or Laptop...
- Page 2 Need 2 cables: RS232 cable and RS232-USB cable RS232-USB 线材 RS232 线材 3. FW Upgrade AP 3.1 Please contact Lumens FAE Department through e-mail to get the AP before upgrading. Download Tool AP FW Version VC Download Tool VEXXXXR Motor_Pan_VEYXXXR...
-
Page 3: Other Settings
5. VC-A60S FW Type Please refer to following chapter for W upgrade. 5.1 Control FW 5.2 PAN/TILT Motor Control FW 5.2.1 PAN and TILT have different FW which need to be upgraded separately. PAN: Motor_Pan_VEYXXX TILT: Motor_TIlt_VEYXXX. 6. Other Settings 6.1 “System DIP Switch”... - Page 4 7. Control FW 7.1 Please refer to 4.2 Connections for FW upgrade 7.2 Please check the Service DIP Switch at the default position (all off), and then plug in the power cord. 7.3 Launch the [VC Download Tool]. VC FW Upgrade Instruction...
- Page 5 7.4 Browse and select proper FW file. - Uncheck the box in the front of “DSP *.bin File” and “CM *.bin File” - Check the box in the front of “Motor *.bin File” - Click [Browse] and select the FW file 7.5 Select proper [Com Port] and set the [Baud Rate] as [9600], and then press [DownLoad AP] to start.
- Page 6 7.6 FW start updating. (around 1.5min taken) The Percentage will be increased when it’s running. 7.7 FW upgrade finished. The button will reverse from grey to black and the camera do the self-check automatically. 7.8 When firmware upgrade finished, please unplug and reconnect the power cord to restart the camera.
- Page 7 8. PAN/Tilt Motor Control FW 8.1 Please refer to 4.2 Connections for FW upgrade 8.2 Please return the DIP switch to the default position (all off), and then plug in the power cord. 8.3 After connecting, set the DIP Switch 1,2,4 ON for the PAN motor.
- Page 8 8.6 Please press the [Pan Tilt] button for Pan/Tilt Motor Driver FW Update. 8.7 Browse the FW for Pan and Tilt Motor. PAN and TILT have different FW which need to be upgraded separately. - PAN: Motor_Pan_VEYXXX - TILT: Motor_TIlt_VEYXXX. VC FW Upgrade Instruction...
- Page 9 8.8 Update the FW for Pan Motor first. Please click the [Update] button. 8.9 FW upgrading.(around 1mins taken) 8.10 FW upgrade for Pan Motor is finished. The status button: Gray(Processing)/ Red(Failed)/ Green(Success) VC FW Upgrade Instruction...
- Page 10 8.11 Please change the DIP Switch for TILT motor with DIP 2,4 On (TILT Motor Control Download Setting) 8.12 Please click the [Update] button of Tilt FW. 8.13 FW upgrading. (around 1mins taken) VC FW Upgrade Instruction...
- Page 11 8.14 FW upgrade for Tilt Motor is finished. The status button: Gray(Processing)/ Red(Failed)/ Green(Success) 8.15 When FW upgrade for both PAN and TILT Motor Control are done, please unplug and reconnect the power cord to take effective. 8.16 Go to the menu, [System]-->[Factory Reset] to reset the camera. 8.17 Go 9.
- Page 12 9. Check FW version on OSD 9.1 Plug in the power cord and connect the VC camera with a Monitor. 9.2 Power on the unit and press [Menu] button on the remote control 9.3 Select [Status] 9.4 Press [ ▼ ] button to the last [System] page 9.5 Check if the FW version is correct VC FW Upgrade Instruction...
