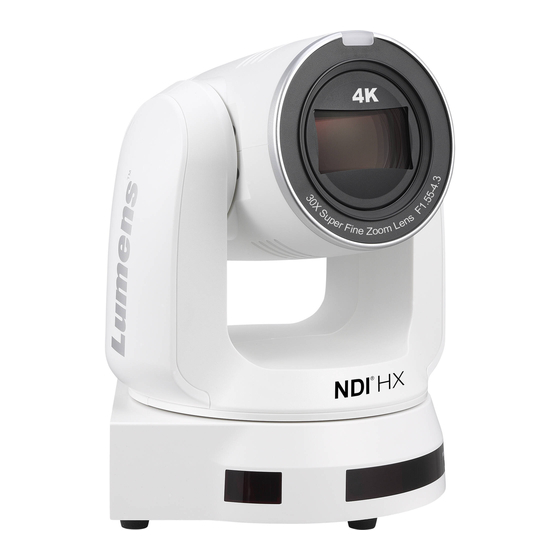

- Page 1 VC-A71P/VC-A71PN 4K PTZ Video Camera User Manual - English To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Table of Contents Copyright Information ......................2 Chapter 1 Safety Instructions ....................3 Chapter 2 Package Contents ....................4 Chapter 3 Function Introduction ................... 5 3.1 I/O functions Introduction .................. 5 3.2 Description of LED indicator ................7 3.3 Tally Lamp Function Description................. 7 Chapter 4 Instruction for installation .................. -
Page 3: Copyright Information
Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice. -
Page 4: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when using the product: 1 Operation Please use the product in the recommended operating environment, away from water or source of heat. Do not place the product in tilted position or unstable trolley, stand or table. Please clean the dust on the power plug prior to usage. -
Page 5: Chapter 2 Package Contents
Chapter 2 Package Contents Instruction for VC-A71P/VC-A71PN Remote Control installation Quick Installation Guide Power Cord Power Adapter RS-422 Connector Appearance may vary depending on country/region Metal Plate A Metal Plate B M3 Screws Silver x8 / Black x2... -
Page 6: Chapter 3 Function Introduction
Chapter 3 Function Introduction 3.1 I/O functions Introduction 3.1.1 Front View Item Function Descriptions Tally indicator light Display the tally light status of the camera Camera lens 30x HD camera lens Power LED Display the status of the camera, please refer to 3.2 Description of indicator LED indicator... - Page 7 3.1.2 Back View <Remark> The figure is an example of VC-A71P. VC-A71PN does not support SDI output and USB. Item Function Descriptions RS-232 output port, at most 7 cameras can be connected in a RS-232 output serial connection RS-232 input port, at most 7 cameras can be connected in a serial...
-
Page 8: Description Of Led Indicator
The cooling fan automatically controls its rotation speed and performs cooling in cope with the operation temperature of the machine <Remark>The cooling fan is not available on VC-A71PN. Tripod deck lock The camera is mounted on a (specification) 1/4” - 20 UNC tripod... -
Page 9: Chapter 4 Instruction For Installation
Chapter 4 Instruction for installation 4.1 Camera dimension: 4.1.1.1 Camera front view and side view Lengthx width x height: 232 x 188 x 189 mm Weight: 3.0Kg (excluding the metal plate) 4.1.1.2 Camera base The camera base has tripod mount lock holes and can be installed on the tripod deckof a standard specification 1/4”-20 UNC. -
Page 10: Preparation Before Installation
4.2 Preparation before installation Installation and connection of the HD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident. 4.2.1 Ensure the safety of the installation environment. - Page 11 4.3.2.2 Metal Plate size diagram Metal plate A - machine side Metal plate A locking screw Metal plate A - machine side...
- Page 12 Metal plate B - ceiling side Metal plate B locking bolt Metal plate B locking screw M3 threaded hole M3 threaded hole M3 threaded hole Metal plate B - ceiling side...
- Page 13 4.3.2.3 Precautions for installation 1. Before installation, please confirm the orientation of the machine relative to the object to be captured 2. It is recommended that the machine should be set at a distance of more than 2 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens Projector 2 meter ↑...
- Page 14 2. Fix the metal plate A on the machine base with 4 M3 silver screws 3. Lock the metal plate B on ceiling mounted hanger <Caution>: (1) Please use the hanger that has obtained UL security approval (2) Please reserve the hole for the connecting wires of the camera 4.
-
Page 15: Connecting Devices
A and B and push to the left to remove the machine 3. Then remove the screws on the hanger and the machine 4.4 Connecting devices 4.4.1 Connecting RS-232 With RS-232 in/out, at most 7 Lumens cameras can be connected. RS-232 pins definition instructions... - Page 16 4.4.2 Connecting RS-422 With RS-422, at most 7 Lumens cameras can be connected. <Caution> When RS-422 connection is being used, do not use RS-232 connection. RS-422 pins definition instructions...
- Page 17 RS-422 connection instructions 1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure below 2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole;...
-
Page 18: Chapter 5 Remote Control And Setting Menu
Chapter 5 Remote Control and Setting Menu 5.1 Functions of remote control <Remark> The below functions are listed alphabetically. Item Description ,,, Move the lens Back Light Turn on/off back light compensation Camera select Choose Camera ID 1 ~ 3 Focus-Manual / Turn on manual focus to adjust the focal Far/Near... -
Page 19: Setting Menu
5.2 Setting Menu <Remark>Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values 1. Full Auto 2. - Page 20 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values 1. F1.6 2. F2 3. F2.2 4. F2.7 5. F3.2 6. F3.8 7. F4.5 8. F5.4 Adjustable when the Exposure Iris Pri 9. F6.3 mode is set to Iris Pri 10.
- Page 21 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values 1/120 1/120 1/100 1/100 1/90 1/75 1/60 1/50 1/30 1/25 1/15 1/12 1. F1.6 2. F2 3. F2.2 4. F2.7 5. F3.2 6. F3.8 7. F4.5 8.
- Page 22 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values 1. Off 2. 1 3. 2 4. 3 Select the color temperature 1. Auto mode 2. Indoor 1. 4000k ~ 7000k 3. Outdoor 2. 3200k Mode 4.
- Page 23 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Adjustable when the Image Brightness 0 ~ A ~ 15 mode is set to Custom Adjustable when the Image 0 ~ A ~ 15 mode is set to Custom Adjustable when the Image Saturation 0 ~ A ~ 15...
- Page 24 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values 1. Off 2. MIRROR Set the mode at which the D-Effect Mirror 3. Flip image is mirror or flipped 4. Mirror + Flip 1. LOW For AF triggering speed, the AF Sensitivity 2.
- Page 25 Volume Setting When audio and video are out of sync, enable this feature to set the audio delay time Audio Delay On / Off <Remark>VC-A71PN does not support this setting Set audio delay time Audio Delay -1~-500ms Audio <Remark>VC-A71PN does not...
- Page 26 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values When it is Off, the remote control will not be able to control the camera. At this IR Receive On / Off moment, turn off and then turn on the power to restore control of the remote control.
- Page 27 Adjustment Values 1. 3840 x 2160/59.94p 2. 3840 x 2160/50p 3. 3840 x 2160/29.97p 4. 3840 x 2160/25p Choose the output resolution 5. 1080p/59.94 <Remark>VC-A71PN does not 6. 1080p/50 support 720p/29.97 and 7. 1080p/29.97 Output Mode 720p/25 output modes 8. 1080p/25 <Remark>For HDMI/SDI...
-
Page 28: Chapter 6 Network Function Settings Description
Chapter 6 Network Function Settings Description Connecting Camera to Network 6.1.1 Connecting to Internet Two common connection methods are shown below 1. Connecting via switch or router Network cable Network cable Switch or router Camera Computer 2. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera e.g.: The factory-preset default IP address of camera is 192.168.100.100. - Page 29 Password: 9999 6.1.3 Using Lumens VMS Software to View the Images <Remark> Lumens VMS is for VC-A71P only and cannot work with VC-A71PN Open LUMENS VMS software (Please download from the Lumens official website) Search for the camera: Press...
- Page 30 Using RTSP Player to View the Images 6.1.4 <Remark> This is only applicable to VC-A71P. VC-A71PN does not support RTSP Streaming In addition to the browser and VMS, other free softwares also can be used for RTSP connection,such as VLC, Quick Time and PotPlayer RTSP connection address formats are as follows: ...
-
Page 31: Web Page Function Description
Web Page Function Description 6.2.1 Login Screen Item Function Descriptions Username Enter user account (default: admin) Enter user password (default: 9999) Password *For the first login, please refer to 6.2.3 Account Management default password Currently, the system supports English, Traditional Chinese and Language selection Simplified Chinese Save user account name and password to the browser. - Page 32 Adjust the zoom-in or zoom-out ratio via scroll bar Display the screen currently captured by the camera Preview window <Remark> VC-A71PN does not support this setting Power button Turn on or turn off the camera power Switch the preview window to full screen Switch to Full Screen <Remark>...
- Page 33 Account Management 6.2.3 Item Function Descriptions Add user account Enter a user name and password to add a new user Set the new account management permissions User Type Admin Operator Viewer View images Permission setting Settings Account management Applying setting Add the newly created user to the list of account Edit: Modify the user password and permissions List of accounts...
- Page 34 Setting - System Setting 6.2.4 <Remark> The figure is an example of VC-A71P. VC-A71PN does not support Preview Window Item Function Descriptions Set the resolution of the camera, resolutions supported by the camera are as follows: 3840 x 2160 59.94 / 50 / 29.97 / 25 fps 1080P 59.94 / 50 / 29.97 / 25...
- Page 35 6.2.5.1 2/Streaming 3 Streaming Parameter Setting for relevant settings <Remark> VC-A71PN does not support this setting Confirm whether or not the streaming function is opened Open Streaming <Remark> VC-A71PN does not support this setting Setting - System Setting - Output Signal Display when it is set to HDMI + UVC ...
- Page 36 6.2.5.1 Streaming parameter setting Function Streaming 1 Streaming 2 Streaming 3 Encode Format H.265 H.264 Resolution 4K /1080p / 720p 1080p / 720p / 1080i 640 x 360 Setting according to the supported resolution Frame Rate <Remark> Only 59.94 / 50 are supported when the resolution of Streaming 2 is 1080i 2,000 ~ 2,000 ~ 20,000 512 ~ 5,000...
- Page 37 Mode: Select the color temperature mode White Balance Auto Indoor Outdoor One Push WB Manual Sodium Lamp Open Push WB: One push color temperature is adjustable when the white balance mode is set to “One Push WB” ...
- Page 38 Pan Tilt Zoom Pan/Tilt Limit: Set the Pan/Tilt limit Pan/Tilt Flip: Set Pan/Tilt flip Preset Speed: Set the rotation speed of the cradle head when Preset is executed PTZ Speed Comp: Set the Pan/Tilt moving speed to vary from the zoom position ...
- Page 39 Setting - Picture 6.2.7 Item Function Descriptions Picture Effect Set picture effect, Off/Neg/Black and White 2D noise reduction 2D noise reduction settings settings 3D noise reduction 3D noise reduction settings settings Image mode The user may customize his/her desired image mode. When no custom setting is needed, reset the picture parameters back Image Mode Load to the factory default by selecting this item...
- Page 40 Set MIC In/Line In setting Audio Volume Adjust Volume Turn on / offAudio Delay Audio Delay <Remark> VC-A71PN does not support this setting Set Audio Delay Time (-1~-500ms) Audio Delay Time(ms) <Remark> VC-A71PN does not support this setting AAC / G.711 Encode Type <Remark>...
- Page 41 6.2.8 Setting - Audio to turn on the audio function first <Remark> VC-A71PN does not support this setting Enable / Disable Multicast When more than 4 people are connected to watch live video at the same time, it is recommended to enable the multicast function ...
- Page 42 8554, 8556, 8557, 8080, 80, 81, 9090, 23 <Remark> VC-A71PN does not support this setting 1. Set the field of SRT and then check the item to open SRT streaming After the SRT streaming is opened, it will be connected automatically upon startup 2.
- Page 43 <Remark>SNTP server address: Please change in network setting Setting - Maintenance - Upgrading Firmware 6.2.11 Item Function Descriptions The camera firmware may be upgraded via web page. For the upgrade Firmware Update method, please download the FW upgrade manual from Lumens official website...
- Page 44 Setting - Maintenance - Incident Log 6.2.12 Item Function Descriptions If the camera encounters errors, an error code log will be established Event Logs <Remark> When an error code appears, please try to clear it to make sure whether the issue has occurred repetitively Setting –...
- Page 45 Setting - Maintenance - System Service 6.2.14 Item Function Descriptions Reset to the default Select the reset button to resume the factory default setting as the web value page setting The web page setting parameters can be exported from the computer Setting File and imported/applied to another camera Protocol Setting...
- Page 46 About 6.2.16 Item Function Descriptions Camera name Display the camera name Firmware Version Display the firmware version of the camera Serial No. Display the camera serial No.
-
Page 47: Chapter 7 Dip Switch Setting
Resolution Frame Rate 59.94 3840x2160p 29.97 59.94 1920x1080p 29.97 59.94 1280x720p <Remark> VC-A71PN 29.97 does not support 720p 29.97/25 fps resolutions <Remark> 1080i mode 59.94 only supports HDMI/SDI 1920x1080i output. When 1080i mode is set, NDI output is 1080p Reserved Reserved 7.1.2... -
Page 48: Chapter 8 Troubleshooting
Chapter 8 Troubleshooting This chapter describes problems you may encounter while using VC-A71P/VC-A71PN. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. - Page 49 - Modify camera mode - Modify HDMI format - Enable OSD menu - Streaming setting - Audio setting...
-
Page 50: Supplier's Declaration Of Conformity 47 Cfr § 2.1077 Compliance Information
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer：Lumens Digital Optics Inc. Product Name：VC-A71P/ VC-A71PN Model Number：4KPTZ Video Camera Responsible Party – U.S. Contact Information Supplier：Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail ：support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.
