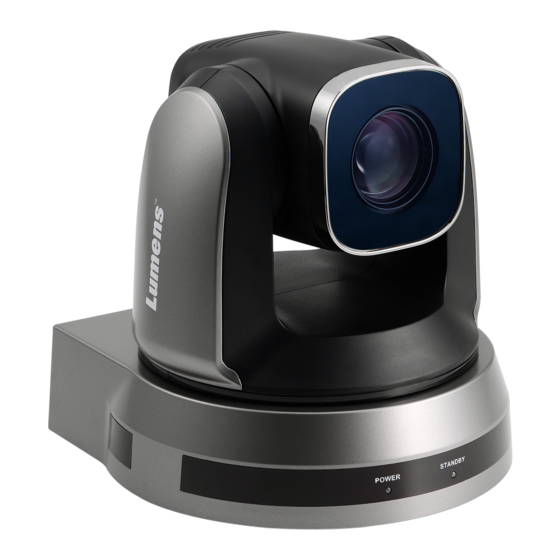

Lumens VC-A60S Installation Manual
  1. Manuals
  2. Brands
  3. Lumens Manuals
  4. Security Camera
  5. VC-A60S
  6. Installation manual

Lumens VC-A60S Installation Manual

Ptz video camera
Hide thumbs Also See for VC-A60S:
Table of Contents

Advertisement

Quick Links

Download this manual
VC-A60S
PTZ Video Camera
Installation Guide - English
[Important]
To download the latest version of Quick Start
Guide, multilingual user manual, software,
or driver, etc., please visit Lumens
http://www.MyLumens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC-A60S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumens VC-A60S

Summary of Contents for Lumens VC-A60S

  • Page 1 VC-A60S PTZ Video Camera Installation Guide - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.MyLumens.com...

  • Page 2: Table Of Contents

    Setting Menu ..................23 Chapter 6 Descriptions of Major Functions ..........31 I would like to switch to VC-A60S ............. 31 I would like to save the current lens position data ......31 I would like to clear the saved position data ........31 I would like to turn on the back light compensation function ....
  • Page 3 I would like to adjust the AF speed ........... 32 I would like to set the image mode ........... 33 6.10 I would like to freeze images ............33 6.11 I would like to rotate the image ............33 6.12 I would like to change the camera direction ........33 6.13 I would like to display the current status ..........

  • Page 4: Copyright Information

    Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice.

  • Page 5: Chapter 1 Safety Instructions

    Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the PTZ Video Camera: 1 Operation 1.1 Please use the product in the recommended operating environment. 1.2 Do not place the product in tilted position. 1.3 Do not place the product on an unstable trolley, stand or table. 1.4 Do not use this product near water or source of heat.

  • Page 6: Precautions

     Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. If PTZ Video Camera will not be used for an extended time, unplug it from the power socket. Note Risk of Electric ShockPlease do not open it by yourself Caution: To reduce the risk of electric shock, do not remove cover (or back).

  • Page 7: Chapter 2 Package Contents

    Chapter 2 Package Contents Instruction for VC-A60S Remote Control installation  Power Cord Power Adapter RS-422 Connector Appearance may vary depending on country/region Metal Plate A Metal Plate B M3 Screws English - 6...

  • Page 8: Chapter 3 Product Overview

    Chapter 3 Product Overview 3.1 Overview Front View Back View 1. Camera lens 2. Power LED indicator 3. Standby LED indicator 4. DVI output 5. Component output 6. Power input 7. IR SELECT 8. OUTPUT Switch 9. Camera Address Selectors 10.
  • Page 9 3.2.2 Standby: Orange: In standby mode 3.2.2.1 No Light: Power on 3.2.2.2 English - 8...

  • Page 10: Chapter 4 Instruction For Installation

    Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact. 4.1.3 Please choose a proper place for installation of VC-A60S in advance. Please determine an installation place according to the following requirements.
  • Page 11 4.2.2 I would like to install VC-A60S on the ceiling 4.2.2.1 Prepare for the parts and equipment required during the installation 1. Accessories of VC-A60S in the box (metal plates A, B and M3 screw x 7) 2. Screw for locking on ceiling mounted hanger x 4 3.
  • Page 12 4.2.2.2 Camera Size Length x Width x Height : 174x186x182.7mm Weight : 2.0Kg English - 11...
  • Page 13 4.2.2.3 Max. rotation dimension of camera English - 12...
  • Page 14 4.2.2.4 Size Diagram 1. Metal plate B - ceiling side Metal plate B locking screw Metal plate B locking bolt M3 threaded hole M3 threaded hole M3 threaded hole Metal plate B - ceiling English - 13...
  • Page 15 2. Metal plate A - machine side Metal plate A locking screw Metal plate A - machine side English - 14...
  • Page 16 3. Bottom of machine English - 15...
  • Page 17 4.2.2.5 Precautions for installation 1. Before installation, please confirm the orientation of the machine relative to the object to be captured 2. It is recommended that the machine should be set at a distance of more than 1 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens 1 meter↑...
  • Page 18 3. Lock the metal plate B on ceiling mounted hanger ※Caution: (1) Please use the hanger that has obtained UL security approval (2) Please reserve the hole for the connecting wires of the camera 4. Combine the metal plate A and the metal plate B (1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B (2) Fix with 3 M3 screws...
  • Page 19 4.2.2.7 How to remove 1. Remove the connecting wires from the camera 2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine 3.

  • Page 20: Connecting The Device

    4.3 Connecting the device 4.3.1 Image Output Connecting to an HDTV/computer monitor (DVI) 4.3.1.1 DVI cable Monitor or HDTV Connecting to a TV (C-Video) 4.3.1.2 C-Video Cable English - 19...
  • Page 21 Connecting to an HDTV (3G-SDI) 4.3.1.3 SDI Cable HDTV Connection to the device for image output 4.3.1.4 Component adaptor HDTV English - 20...
  • Page 22 4.3.2 Controlling VCs with the computer Connecting to one computer for connection between VCs 4.3.2.1 (RS-232 in/out) <Remark> With RS-232 in/out, at most 7 VCs can be connected. Connecting to one computer for connection between VCs 4.3.2.2 (RS-422) <Remark> Please refer to 7.2 RS-422 connection for the RS-422 connection instructions.

  • Page 23: Chapter 5 Remote Control And Setting Menu

    <Remark> The below functions are listed alphabetically. Description Item ,,, Move the lens Turn on/off back light compensation Back Light Camera Select 1 ~ 3 VC-A60S select Focus- Turn on manual focus to adjust the Manual / focal length Far/Near Auto focus...

  • Page 24: Setting Menu

    5.2 Setting Menu <Remark> Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. Level Level Level Function Descriptions Major Minor Items Adjustment Items Values 1. Auto 2. Brightness 3.
  • Page 25 1/350 1/300 1/250 1/215 1/180 1/150 1/125 1/120 1/100 1/100 1/90 1/75 1/60 1/50 1/30 1/25 1/15 1/12 1. F1.6 2. F2 3. F2.4 4. F2.8 5. F3.4 6. F4 7. F4.8 Iris Pri Iris setting 8. F5.6 9. F6.8 10.
  • Page 26 1. 0dB 2. 3.6 dB 3. 7.1 dB 4. 10.7 dB 5. 14.3 dB 6. 17.8 dB 7. 21.4 dB Manual Gain 8. 25 dB Manually set the gain 9. 28.6 dB 10. 32.1 dB 11. 35.7 dB 12. 39.3 dB 13.
  • Page 27 1/60 1/50 1/30 1/25 1/15 1/12 1. F1.6 2. F2 3. F2.4 4. F2.8 5. F3.4 6. F4 7. F4.8 Manual Iris Manually set the aperture 8. F5.6 9. F6.8 10. F8 11. F9.6 12. F11 13. F14 14. Close Bright 1~ C~28 1.
  • Page 28 1. Auto 2. Indoor 3. Outdoor 4. Trigger White Balance 5. Auto White Balance Select the color Mode 6. Manual temperature mode 7. Outdoor Auto 8. Sodium Lamp Auto White 9. Sodium Lamp Balance 10. Sodium Lamp Outdoor Auto One Push ENTER One push trigger Trigger...
  • Page 29 Adjustable when the 0~ A ~14 image mode is set to Custom mode Adjustable when the 1. 0 Gamma image mode is set to 2. 1 Custom mode Adjustable when the Brightness 0~ A ~31 image mode is set to Custom Contrast adjustment;...
  • Page 30 Select the AF triggering 1. Low speed. The higher the speed is, the faster AF is Sensitivity 2. Normal triggered Auto 1. Normal Focus 2. 1 3. 2 Focus speed after AF AF speed 4. 3 triggering 5. 4 6. 5 NTSC LB NTSC CP NTSC SQ...
  • Page 31 1. 1920x1080/60p 2. 1920x1080/50p 3. 1920x1080/30p 4. 1920x1080/25p 5. 1920x1080/60i 6. 1920x1080/50i 7. 1280x720/60p Output Mode 8. 1280x720/50p 9. 1280x720/30p 10. 1280x720/25p 11. 1080/59.94p 12. 1080/59.94i 13. 1080/29.97p 14. 720/59.94p 15. 720/29.97p Factory Resume the factory On / Off default setting Reset Display the current setting Status...

  • Page 32: Chapter 6 Descriptions Of Major Functions

    Chapter 6 Descriptions of Major Functions 6.1 I would like to switch to VC-A60S 1. Press [Camera 1 ~ 3] on the remote control to select VC-A60S.  Camera 1 ~ 3 is selected with IR SELECT. 6.2 I would like to save the current lens position data 1.

  • Page 33: I Would Like To Zoom In/Out Images

    6.6 I would like to zoom in/out images 6.6.1 Adjust image size 1. Press [Fast +] on the remote control to zoom in images. 2. Press [Fast -] on the remote control to zoom out images. 6.6.2 Fine-tune image size 1.

  • Page 34: I Would Like To Set The Image Mode

    6.8.2 Adjust the AF speed The focus speed upon triggering AF Sensitivity  [Normal] (default): Image flickering may not occur  [Fast]: Fast focus speed 1. Press [MENU] to activate the setting menu. 2. Press [] or [] to select [Auto Focus]. 3.

  • Page 35: Chapter 7 Dip Switch Setting

    Chapter 7 DIP Switch Setting <Note> Please turn off the machine before changing DIP switch setting. 7.1 DIP SWITCH 7.1.1 OUTPUT Switch Output Mode Setting Output Mode Setting 1920x1080/60p 1920x1080/50p 1920x1080/30p 1920x1080/25p 1920x1080/60i 1920x1080/50i 1280x720/60p 1280x720/50p 1280x720/30p 1280x720/25p 1920x1080/59.94p 1920x1080/59.94i 1920x1080/29.97p 1280x720/59.94p 1280x720/29.97p...
  • Page 36 7.1.2 IR SELECT Setting 7.1.3 Camera Address Selector Function Setting Descriptions ID 0~7 Reserved 7.1.4 System Switch Setting Function Descriptions RS-232C/RS-422 selector DIP 1 OFF : RS-232C / ON : RS-422 Infrared signal output switch DIP 2 OFF : Off / ON : On Communication baud rate selector DIP 3 OFF : 9600 / ON : 38400...

  • Page 37: Rs-422 Connection

    7.2 RS-422 Connection 7.2.1 RS-422 Pin Description Pin NO. Function RXD OUT - RXD OUT + TXD OUT - TXD OUT + RXD IN - RXD IN + TXD IN - TXD IN + <Note> Please connect IN+ to OUT+ when connecting to SONY productsFor non-SONY products, it may be necessary to connect IN+ to OUT- 7.2.2 Use RS-422 Connection 1.
  • Page 38 2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screw driver to fix it 3. Insert the wired RS-422 connector back to the camera. Now the connection is completed <Note>...

  • Page 39: Chapter 8 Troubleshooting

    Chapter 8 Troubleshooting This chapter describes problems you may encounter while using VC-A60S. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
  • Page 40 Codec check version is as follows: 1.1 Press [MENU] on the remote control 1.2 Choose [Status] 1.3 Go to Page 5 of [System] 1.4 Make sure the firmware version is correct 2. Make sure the connection is correct (RS-232/422 Input). 3.
