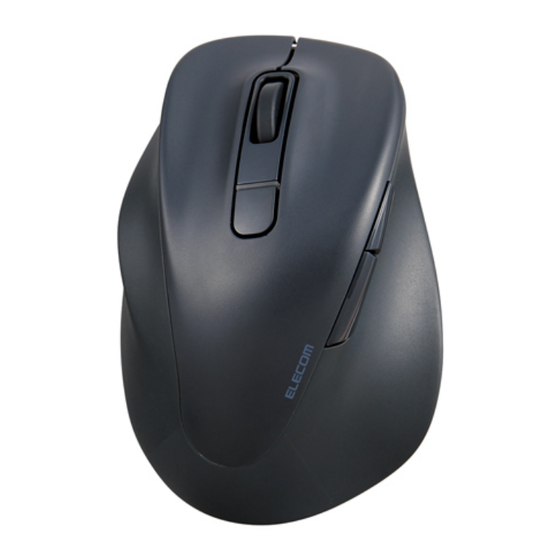

Elecom M-XGS31BBSK Series User Manual

Bluetooth mouse
Hide thumbs

Advertisement

Quick Links

Download this manual
Bluetooth® Mouse
M-XGS31BBSK series (S size)
M-XGM31BBSK series (M size)
M-XGL31BBSK series (L size)
M-XGXL31BBSK series (XL size)
User Manual
Compliant model: M-XGS31BBS, M-XGM31BBS, M-XGL31BBS, M-XGXL31BBS
Precautions
This manual describes the important precautions you should take for safe operation of this
product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-XGS31BBSK Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elecom M-XGS31BBSK Series

Summary of Contents for Elecom M-XGS31BBSK Series

  • Page 1 Bluetooth® Mouse M-XGS31BBSK series (S size) M-XGM31BBSK series (M size) M-XGL31BBSK series (L size) M-XGXL31BBSK series (XL size) User Manual Compliant model: M-XGS31BBS, M-XGM31BBS, M-XGL31BBS, M-XGXL31BBS Precautions This manual describes the important precautions you should take for safe operation of this...
  • Page 2 Observe these precautions carefully to avoid personal injury, damage, fire, and other problems. Meaning of symbols WARNING Failure to observe precautions carries the possibility of serious personal injury or death due to fire, electric shock, or other causes. CAUTION Failure to observe precautions may result in personal injury due to electric shock or other causes, and may damage other equipment.
  • Page 3 Do not put this product in fire. Breakage may cause fire or injury. CAUTION Do not place this product in any of the following environments: In a car exposed to sunlight or a place exposed to direct sunlight. In a place that becomes hot, such as around a heater. In a moist place or a place where condensation may occur.
  • Page 4 Cleaning the Product If the body of this product becomes dirty, wipe with a soft, dry cloth. Using a volatile liquid such as paint thinner, benzene or alcohol may affect the material quality and/or discolor this product. Please note the following for disinfection. Gently soak a cleaning cloth, such as a microfiber cloth, in the disinfectant solution.

  • Page 5: How To Use

    Civil Aeronautics Act. Turn off the power of the wireless mouse before boarding and do not use after boarding. * ELECOM is not liable for any accidents or any indirect or consequential damage incurred due to the failure of this product.
  • Page 6 This mouse is designed for the left hand. The button on the right is the default “left click”. To swap the left-click and right-click buttons, "Change OS settings (swap left-click and right-click buttons)" or use the function assignment feature on "ELECOM Mouse Assistant”. *Swapping of left-click and right-click buttons is not supported on Android.
  • Page 7 Perform the “Back” function on the Web browser. ⑤ “Forward” button Perform the “Forward” function on the Web browser. You will need to install the “ELECOM Mouse Assistant Mac version” from our website to use the “Back” and “Forward” button on Mac. Please refer to “Install ELECOM Mouse Assistant”.
  • Page 8 Pair the mouse with your deviceʼs Bluetooth module or a Bluetooth adapter. ⑩ Power switch Turn the mouse power on (ON) and off (OFF). ⑪ Battery insulating tab Remove this tab before using. ⑫ Battery cover Remove this cover and insert the battery. ⑬...
  • Page 9 The LED will light up white when the connected device is "PC1" and green when "PC2" is connected. When paired with only one device on either “PC1” or “PC2”, the existing connection will be lost when you switch to the unpaired side. Switching back to the side paired with a connected device will restore the connection.
  • Page 10 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode and the LED will blink after the power is turned ON.
  • Page 11 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on. Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • Page 12 2) Click on “Bluetooth & devices”. The “Devices” page will appear. If “Bluetooth” is off, turn it on.
  • Page 13 3) Click on “Add device”. 4) Press the button to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices. 5) Click “Bluetooth”.
  • Page 14 6) When the add device screen is displayed, hold down the pairing button on the underside for 3 seconds and then release. Pairing mode will be activated and the LED will blink. The LED will blink white when the connected device is "PC1" and green when it is "PC2". * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode after the power is turned ON.
  • Page 15 7) Click on “ELECOM OpticalMouse”. Pairing begins. 8) When the message changes to “Your device is ready to go!”, click “Done”.
  • Page 16 9) Pairing is complete when this product is added to “Bluetooth & devices” and the status is “Connected”. You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse...
  • Page 17 3) Click the “Primary mouse button” dropdown menu, then click “Right”. Once you click "Right", the left and right mouse buttons will be swapped. When “Left” is selected When “Right” is selected Left click Left click...
  • Page 18 ■For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices”, then “Mouse”. 2) Click the “Select your primary button” dropdown menu, then click “Right”. Once you click "Right", the left and right mouse buttons will be swapped. When “Left”...
  • Page 19 Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow. ■ For Windows 11 1) Click on “Start” on the bottom of the screen and click on “Settings”. The “Settings”...
  • Page 20 ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options” under “Related settings”. 2) Select the “Pointer Options” tab. 3) Adjust the “Select a pointer speed” slider bar to adjust the mouse pointer movement speed.
  • Page 21 Change the number of lines scrolled in one wheel turn ■ For Windows 11 1) Click on “Start” on the bottom of the screen and click on “Settings”. The “Settings” page will appear. 2) Click on “Bluetooth & devices” and then “Mouse”.
  • Page 22 3) Adjust the “Lines to scroll at a time” slider bar to adjust the number of lines per scroll. ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
  • Page 23 Turn the power ON 1) Remove the battery cover. 2) Remove the battery insulating tab.
  • Page 24 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode and the LED will blink after the power is turned ON.
  • Page 25 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on. Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • Page 26 2) Click on “Bluetooth” to turn on “Bluetooth”. The “Bluetooth” system settings page will appear. 3) Press the button to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices. 4) During the device search, hold down the pairing button on the underside for 3 seconds and then release.
  • Page 27 * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode after the power is turned ON. 5) When "ELECOM OpticalMouse" is detected under "Nearby Devices", click “Connect”. Pairing begins. 6) Pairing is complete when the status of “ELECOM OpticalMouse” changes to “Connected”.
  • Page 28 You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse Assistant”. Swap left-click and right-click buttons The left-click and right-click buttons can be swapped on your PC.
  • Page 29 2) Click the "Secondary Click" dropdown menu, then click "Click Left Side". Once you click "Click Left Side", the left and right mouse buttons will be swapped. When “Click Right Side” When “Click Left Side” is selected is selected Left click Left click...
  • Page 30 Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow. 1) Click “Mouse” under “System Settings”. The “Mouse” settings page will load up. 2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer.
  • Page 31 Unchecking “Natural scrolling” will cause the scroll direction to be reversed. iPhone, iPad Turn the power ON 1) Remove the battery cover. 2) Remove the battery insulating tab. 3) Put the battery cover back on.
  • Page 32 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode and the LED will blink after the power is turned ON.
  • Page 33 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on. Pairing with an iPad or an iPhone Pairing involves registering Bluetooth devices (in this case, this product and an iPad or an iPhone) with each other, and authorizing a connection between them.
  • Page 34 2) Tap on “Bluetooth” to turn on the “Bluetooth”. 3) Press the button to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices.
  • Page 35 * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode after the power is turned ON. 5) Tap on "ELECOM OpticalMouse" when it is detected under "DEVICES". Pairing begins. 6) When the “Bluetooth Pairing Request” page loads, tap on “Pair”.
  • Page 36 7) You can use the mouse when the status shows "Connected" You can now use the mouse. Swap left-click and right-click buttons The left-click and right-click buttons can be swapped on your iOS device. *If the OS setting is changed, the left-click and right-click buttons will also be swapped for other mice used simultaneously on the same iOS device.
  • Page 37 2) Tap on “Trackpad & Mouse”. 3) Tap on “Secondary Click”. 4) Tap on “Left”.
  • Page 38 Once you tap on "Left", the left and right mouse buttons will be swapped. When “Right” is When “Left” is selected selected Left click Left click Register custom actions to the buttons. Only the 2 buttons and the wheel can be used under the initial settings. Button 1: Single-Tap Button 2: Secondary Click Follow the steps below to assign all other button functions.
  • Page 39 2) Tap on “Touch”. 3) Tap on “AssistiveTouch”. 4) Tap on “AssistiveTouch” to turn ON.
  • Page 40 2. Assign custom actions to the buttons. 1) Tap on “Devices” under “POINTER DEVICES”. 2) Tap on “ELECOM OpticalMouse”.
  • Page 41 3) Tap on “Customize Additional Buttons...”. 4) When the “Customize Button” page loads, click on the button on the mouse to be added.
  • Page 42 * When adding “Button 3”. 5) A list of all assignable functions will load. Tap on the desired function to assign. * When assigning “Screenshot” to “Button 3”.
  • Page 43 6) A function is assigned to the button. To assign other buttons, repeat the steps above. When AssistiveTouch is OFF, the Custom Action function is disabled and only the initial right click, left click and wheel scroll functions may be used. Android Turn the power ON 1) Remove the battery cover.
  • Page 44 2) Remove the battery insulating tab. 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode and the LED will blink after the power is turned ON.
  • Page 45 Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode. The mouse returns from power-saving mode when it is moved. * Mouse operation may be unstable for 2-3 seconds after returning from the power- saving mode.
  • Page 46 Pairing with an Android device. Pairing involves registering Bluetooth devices (in this case, this product and an Android device) with each other, and authorizing a connection between them. Tap to operate the Android device until pairing is complete. Instructions for Galaxy Tab A7 Lite (Android 12) are as follows. There may be differences depending on the OS version or device.
  • Page 47 4) Check that “Bluetooth” is enabled. If unavailable, tap to enable. 5) Slide the switch to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices.
  • Page 48 7) Tap on “Scan”. 8) Tap on "ELECOM OpticalMouse" when it is detected under "Available devices". 9) Tap on “Pair”.
  • Page 49 Pairing begins. 10) Pairing is complete when this product is added to “Paired devices” and the status is “Connected”. You can now use the mouse. ChromeOS Turn the power ON 1) Remove the battery cover.
  • Page 50 2) Remove the battery insulating tab. 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode and the LED will blink after the power is turned ON.
  • Page 51 Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode. The mouse returns from power-saving mode when it is moved. * Mouse operation may be unstable for 2-3 seconds after returning from the power- saving mode.
  • Page 52 Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them. This section covers ChromeOS standard Bluetooth functions. Depending on your device, unique Bluetooth functions may be used. Please read the respective manuals for each function. Use your current mouse or the touchpad on your device to operate your device until pairing is complete.
  • Page 53 4) Click on “Pair new device”. 5) During the device search, hold down the pairing button on the underside for 3 seconds and then release. Pairing mode will be activated and the LED will blink. The LED will blink white when the connected device is "PC1" and green when it is "PC2". * Until pairing with a PC has been completed for the first time, the mouse will automatically enter pairing mode after the power is turned ON.
  • Page 54 6) Click on “ELECOM OpticalMouse”. Pairing begins. 7) "ELECOM OpticalMouse connected" will be displayed at the bottom of the screen.
  • Page 55 Click “Bluetooth” like in step 2. Pairing is complete when “ELECOM OpticalMouse” appears under “Currently connected”. You can now use the mouse. Swap left-click and right-click buttons The left-click and right-click buttons can be swapped on your PC. *If the OS setting is changed, the left-click and right-click buttons will also be swapped for...
  • Page 56 1) Click on the quick settings panel at the bottom right. 2) Click on “Settings”. The settings page will appear. 3) Click on “Mouse and touchpad” under “Device”. 4) Click the "Swap primary mouse button" dropdown menu, then click "Right button".
  • Page 57 Once you click the "Right button", the left and right mouse buttons will be swapped. When “Left button” is When “Right button” is selected selected Left click Left click Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.
  • Page 58 3) Click on “Mouse and touchpad” under “Device”. 4) Adjust the “Mouse speed” slider to adjust the speed of the mouse pointer.

  • Page 59: Specifications

    ELECOM Mouse Assistant must be installed. “ELECOM Mouse Assistant” is a software that allows you to use the mouse more effectively. Using ELECOM Mouse Assistant, users can set the functions they want to the unique buttons and use them to perform the operations they want.
  • Page 60 When used on magnetic surfaces such as metal desks: 3 m/10 ft, When used on non-magnetic surfaces such as wooden desks: 10 m/33 ft * These values were obtained in ELECOM's test environment and are not guaranteed. Reading method BlueLED...

  • Page 61: Troubleshooting

    M-XGL31BBS series: approximately 100 g / 3.5 oz M-XGXL31BBS series: approximately 110 g / 3.9 oz * excluding battery Operating environment Temperature: 5 °C to 40 °C / 41 °F to 104 °F; humidity: up to conditions 90 % RH (without condensation) Storage environment Temperature -10 °C to 60 °C / 14 °F to 140 °F;...
  • Page 62 cost of repair. We recommend that you disinfect your hands before and after using PCs and peripheral devices that are used by multiple people in order to prevent the spread of infection through the equipment. Gently soak a cleaning cloth, such as a microfiber cloth, in the disinfectant solution. Make sure there are no loose droplets and gently wipe the product using the cloth.
  • Page 63 * These values were obtained in ELECOM's test environment and are not guaranteed. The 2.4 GHz band signal may be shorter depending on the environment you use it in. ⑤ Reboot the PC. The mouse may become unstable depending on the PC. Please restart the PC.
  • Page 64 3) Check the manufacturer of the Bluetooth function installed on your PC. The following steps illustrate the procedure when the Bluetooth function is manufactured by Intel® Corporation. For other manufacturers or if you do not know the manufacturer, check the user manual of your PC or contact the manufacturer of your PC for instructions on how to update the Bluetooth driver.
  • Page 65 5) Follow the instructions of the downloaded installer to install “Intel® Driver & Support Assistant”. 6) Click “Start” and then “All apps”. 7) Click “Intel Driver & Support Assistant”. 8) The Intel support page will automatically open on your browser and a list of drivers and software updates that can be used on your PC will be displayed.
  • Page 66 * The display on your browser may change depending on your PC environment and support page updates. 10) Follow the instructions of the downloaded installer to install the Bluetooth driver. With this, the Bluetooth driver is updated. ⑧ When using the USB Bluetooth receiver, change the receiver connection. Depending on the specifications of the PC's USB port or USB hub, other USB 3.0 devices used simultaneously with the mouse may generate noise that can worsen the 2.4 GHz signal in the vicinity.
  • Page 67 Connect the Bluetooth receiver to a USB2.0 hub or to an extension cable. Compliance status Model/모델명: M-XGXL31BBS www.elecom.co.jp/global/certification/ China / 中国 Korea / 대한민국 Singapore Taiwan / 台灣...

  • Page 68: Intellectual Property Rights

    Specifications and external appearance of this product may be changed without prior notice for the purpose of product improvement. ELECOM is not responsible for any damages to, or failure of other devices caused by using this product. The images are for illustration purposes only and may differ from your actual product.
  • Page 69 Las especificaciones y la apariencia externa de este producto pueden modificarse sin previo aviso con el fin de mejorar el producto. ELECOM no se hace responsable de los daños o fallos de otros dispositivos causados por el uso de este producto.
  • Page 70 As especificações e aparência externa deste produto podem ser alteradas sem aviso prévio para fins de melhoria do produto. A ELECOM não é responsável por quaisquer danos ou falhas de outros dispositivos causados pelo uso deste produto. As imagens são apenas para fins ilustrativos e podem diferir do produto real.
  • Page 71 일본 외 다른 국가에서 구입하는 고객은 문의 사항이 있는 경우 제품 구입 국가의 대리점에 연락하 십시오. ‘ELECOM CO., LTD.(일본)’는 일본 이외의 국가에서 구입 또는 사용 문의에 대한 고객 지원을 제공하지 않습니다. 또한 일본어 이외의 외국어는 지원되지 않습니다. 제품의 교환은 ELECOM 보증...
