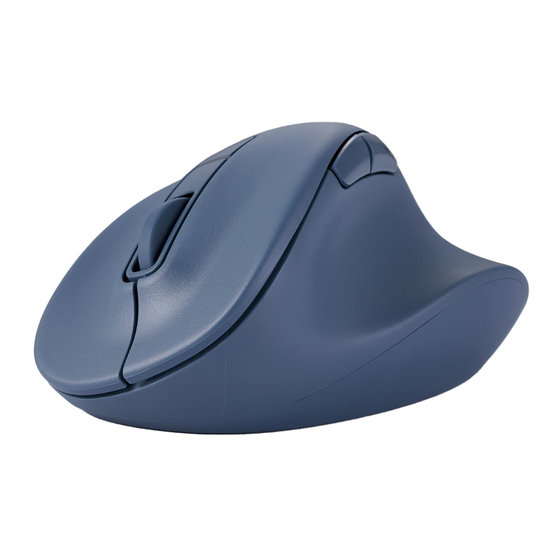

Elecom M-XGS30BBSK Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Wireless Mouse
M-XGS30BBSK series (S size)
M-XGM30BBSK series (M size)
M-XGL30BBSK series (L size)
M-XGXL30BBSK series (XL size)
User Manual
Compliant model: M-XGS30BBS, M-XGM30BBS, M-XGL30BBS, M-XGLL30BBS
Precautions
This manual describes the important precautions you should take for safe operation of this
product.
Observe these precautions carefully to avoid personal injury, damage, fire, and other problems.
Meaning of symbols
WARNING

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-XGS30BBSK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elecom M-XGS30BBSK Series

Summary of Contents for Elecom M-XGS30BBSK Series

  • Page 1 Wireless Mouse M-XGS30BBSK series (S size) M-XGM30BBSK series (M size) M-XGL30BBSK series (L size) M-XGXL30BBSK series (XL size) User Manual Compliant model: M-XGS30BBS, M-XGM30BBS, M-XGL30BBS, M-XGLL30BBS Precautions This manual describes the important precautions you should take for safe operation of this product.
  • Page 2 Failure to observe precautions carries the possibility of serious personal injury or death due to fire, electric shock, or other causes. CAUTION Failure to observe precautions may result in personal injury due to electric shock or other causes, and may damage other equipment. Prohibited action Mandatory action Situation that needs attention...
  • Page 3 Do not place this product in any of the following environments: In a car exposed to sunlight or a place exposed to direct sunlight. In a place that becomes hot, such as around a heater. In a moist place or a place where condensation may occur. In an uneven place or a place exposed to vibration.
  • Page 4 Please note the following for disinfection. Gently soak a cleaning cloth, such as a microfiber cloth, in the disinfectant solution. Make sure there are no loose droplets and gently wipe the product using the cloth. After wiping, dry thoroughly and wipe off any residual liquid. * Do not spray any liquid onto the product directly.

  • Page 5: How To Use

    Civil Aeronautics Act. Turn off the power of the wireless mouse before boarding and do not use after boarding. * ELECOM is not liable for any accidents or any indirect or consequential damage incurred due to the failure of this product.
  • Page 6 Perform the “Back” function on the Web browser. ⑤ “Forward” button Perform the “Forward” function on the Web browser. You will need to install the “ELECOM Mouse Assistant Mac version” from our website to use the “Back” and “Forward” button on Mac. Please refer to “Install ELECOM Mouse Assistant”.
  • Page 7 ⑥ LED light During pairing standby state, the LED blinks. The LED will light up for a period of time when the mouse is switched ON. The LED will blink during use when the battery level is low. The color of the LED changes depending on the device to which it is connected. ⑦...
  • Page 8 1) Click the button to switch between “PC1” and “PC2”. The LED will blink white when the connected device is "PC1" and green when it is "PC2". When paired with only one device on either “PC1” or “PC2”, the existing connection will be lost when you switch to the unpaired side.
  • Page 9 2) Remove the battery insulating tab. 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position.
  • Page 10 The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
  • Page 11 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on. Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • Page 12 2) Click on “Bluetooth & devices”. The “Devices” page will appear. If “Bluetooth” is off, turn it on.
  • Page 13 3) Click on “Add device”. 4) Press the button to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices. 5) Click “Bluetooth”.
  • Page 14 6) When the add device screen is displayed, hold down the pairing button on the underside for 3 seconds and then release. Pairing mode will be activated and the LED will blink. The LED will blink white when the connected device is "PC1" and green when it is "PC2".
  • Page 15 7) Click on “ELECOM OpticalMouse”. Pairing begins. 8) When the message changes to “Your device is ready to go!”, click “Done”. 9) Pairing is complete when this product is added to “Bluetooth & devices” and the status is “Connected”.
  • Page 16 You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse Assistant”. Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.
  • Page 17 3) Adjust the “Mouse pointer speed” slider bar to adjust the mouse pointer movement speed. ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options” under “Related settings”. 2) Select the “Pointer Options”...
  • Page 18 Change the number of lines scrolled in one wheel turn ■ For Windows 11 1) Click on “Start” on the bottom of the screen and click on “Settings”. The “Settings” page will appear. 2) Click on “Bluetooth & devices” and then “Mouse”.
  • Page 19 3) Adjust the “Lines to scroll at a time” slider bar to adjust the number of lines per scroll. ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
  • Page 20 Turn the power ON 1) Remove the battery cover. 2) Remove the battery insulating tab.
  • Page 21 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
  • Page 22 1) Remove the battery cover. 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on.
  • Page 23 Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them. This section covers macOS standard Bluetooth functions. Depending on your device or Bluetooth adaptor, unique Bluetooth functions may be used. Please read the respective manuals for each function.
  • Page 24 Pairing mode will be activated and the LED will blink. The LED will blink white when the connected device is "PC1" and green when it is "PC2". 5) When "ELECOM OpticalMouse" is detected under "Nearby Devices", click “Connect”. Pairing begins.
  • Page 25 6) Pairing is complete when the status of “ELECOM OpticalMouse” changes to “Connected”. You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse...
  • Page 26 Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow. 1) Click “Mouse” under “System Settings”. The “Mouse” settings page will load up. 2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer.
  • Page 27 Unchecking “Natural scrolling” will cause the scroll direction to be reversed. iPhone, iPad Turn the power ON 1) Remove the battery cover. 2) Remove the battery insulating tab.
  • Page 28 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
  • Page 29 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on.
  • Page 30 Pairing with an iPad or an iPhone Pairing involves registering Bluetooth devices (in this case, this product and an iPad or an iPhone) with each other, and authorizing a connection between them. Tap to operate the iPad or iPhone device until pairing is complete. The following instructions are for iPadOS Ver.16.11.
  • Page 31 Pairing mode will be activated and the LED will blink. The LED will blink white when the connected device is "PC1" and green when it is "PC2". 5) Tap on "ELECOM OpticalMouse" when it is detected under "DEVICES". Pairing begins.
  • Page 32 6) When the “Bluetooth Pairing Request” page loads, tap on “Pair”. 7) You can use the mouse when the status shows "Connected"...
  • Page 33 You can now use the mouse. Register custom actions to the buttons. Only the 2 buttons and the wheel can be used under the initial settings. Button 1: Single-Tap Button 2: Secondary Click Follow the steps below to assign all other button functions. Turn ON AssistiveTouch.
  • Page 34 3) Tap on “AssistiveTouch”. 4) Tap on “AssistiveTouch” to turn ON. 2. Assign custom actions to the buttons. 1) Tap on “Devices” under “POINTER DEVICES”.
  • Page 35 2) Tap on “ELECOM OpticalMouse”. 3) Tap on “Customize Additional Buttons...”.
  • Page 36 4) When the “Customize Button” page loads, click on the button on the mouse to be added. * When adding “Button 3”.
  • Page 37 5) A list of all assignable functions will load. Tap on the desired function to assign. * When assigning “Screenshot” to “Button 3”. 6) A function is assigned to the button. To assign other buttons, repeat the steps above.
  • Page 38 When AssistiveTouch is OFF, the Custom Action function is disabled and only the initial right click, left click and wheel scroll functions may be used. Android Turn the power ON 1) Remove the battery cover. 2) Remove the battery insulating tab.
  • Page 39 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position. The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
  • Page 40 2) Remove the battery. 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on.
  • Page 41 Pairing with an Android device. Pairing involves registering Bluetooth devices (in this case, this product and an Android device) with each other, and authorizing a connection between them. Tap to operate the Android device until pairing is complete. Instructions for Galaxy Tab A7 Lite (Android 12) are as follows. There may be differences depending on the OS version or device.
  • Page 42 4) Check that “Bluetooth” is enabled. If unavailable, tap to enable. 5) Slide the switch to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices.
  • Page 43 7) Tap on “Scan”. 8) Tap on "ELECOM OpticalMouse" when it is detected under "Available devices". 9) Tap on “Pair”.
  • Page 44 Pairing begins. 10) Pairing is complete when this product is added to “Paired devices” and the status is “Connected”. You can now use the mouse. ChromeOS Turn the power ON 1) Remove the battery cover.
  • Page 45 2) Remove the battery insulating tab. 3) Put the battery cover back on. 4) Slide the power switch on the underside of the product to the ON position.
  • Page 46 The LED will light up for a period of time. * When the battery level is running low, the LED will blink for a period of time. Power-saving mode When the mouse is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
  • Page 47 3) Insert the battery according to the instructions on the battery compartment. Ensure that the battery is inserted with the positive (+) and negative (-) terminals oriented correctly. 4) Put the battery cover back on. Pairing with a PC Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • Page 48 3) Press the button to switch between the connected devices. Please refer to “Switch connected device” to switch between connected devices. The selected connected Bluetooth device will be registered under your connected devices. 4) Click on “Pair new device”. 5) During the device search, hold down the pairing button on the underside for 3 seconds and then release.
  • Page 49 Pairing mode will be activated and the LED will blink. The LED will blink white when the connected device is "PC1" and green when it is "PC2". 6) Click on “ELECOM OpticalMouse”. Pairing begins.
  • Page 50 7) "ELECOM OpticalMouse connected" will be displayed at the bottom of the screen. Click “Bluetooth” like in step 2. Pairing is complete when “ELECOM OpticalMouse” appears under “Currently connected”.
  • Page 51 You can now use the mouse. Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow. 1) Click on the quick settings panel on the bottom right. 2) Click on “Settings”.
  • Page 52 ELECOM Mouse Assistant must be installed. “ELECOM Mouse Assistant” is a software that allows you to use the mouse more effectively. Using ELECOM Mouse Assistant, users can set the functions they want to the unique buttons and use them to perform the operations they want.

  • Page 53: Specifications

    Radio wave range When used on magnetic surfaces such as metal desks: 3 m, When used on non-magnetic surfaces such as wooden desks: 10 m  * These values were obtained in ELECOM's test environment and are not guaranteed. Reading method BlueLED...

  • Page 54: Troubleshooting

    Dimensions (W x D x H) M-XGS30BBS series: approximately 71 × 108 × 52 mm / 2.8 × 4.3 × 2.1 in. M-XGM30BBS series: approximately 75 × 114 × 55 mm / 3 × 4.5 × 2.2 in. M-XGL30BBS series: approximately 79 × 120 × 58 mm / 3.1 × 4.7 ×...
  • Page 55 Never apply hot water. Doing so can cause electric malfunctions. Do not use organic solvents or ultraviolet lights. Usage can result in deterioration of the housing components or paints, which can cause damage to the exterior. We recommend the usage of disposable gloves. Please unplug the USB connector from this product and the PC.
  • Page 56 Non-magnetic surface (such as wooden desks): approximately 10 m Magnetic surface (such as steel desks): approximately 3 m * These values were obtained in ELECOM's test environment and are not guaranteed. The 2.4 GHz band signal may be shorter depending on the environment you use it in.
  • Page 57 2) Click “Bluetooth”. 3) Check the manufacturer of the Bluetooth function installed on your PC.
  • Page 58 The following steps illustrate the procedure when the Bluetooth function is manufactured by Intel® Corporation. For other manufacturers or if you do not know the manufacturer, check the user manual of your PC or contact the manufacturer of your PC for instructions on how to update the Bluetooth driver.
  • Page 59 7) Click “Intel Driver & Support Assistant”. 8) The Intel support page will automatically open on your browser and a list of drivers and software updates that can be used on your PC will be displayed. 9) Download “Intel® Wireless Bluetooth” from the list if available. * The display on your browser may change depending on your PC environment and support page updates.
  • Page 60 ⑧ When using the USB Bluetooth receiver, change the receiver connection. Depending on the specifications of the PC's USB port or USB hub, other USB 3.0 devices used simultaneously with the mouse may generate noise that can worsen the 2.4 GHz signal in the vicinity.

  • Page 61: Intellectual Property Rights

    Apple Inc., registered in the U.S. and other countries and regions. ChromeOS and Android are trademarks of Google LLC. The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ELECOM CO., LTD. is under licence.

  • Page 62: Support Information

    Specifications and external appearance of this product may be changed without prior notice for the purpose of product improvement. ELECOM is not responsible for any damages to, or failure of other devices caused by using this product. The images are for illustration purposes only and may differ from your actual product.
  • Page 63 Las especificaciones y la apariencia externa de este producto pueden modificarse sin previo aviso con el fin de mejorar el producto. ELECOM no se hace responsable de los daños o fallos de otros dispositivos causados por el uso de este producto.
  • Page 64 As especificações e aparência externa deste produto podem ser alteradas sem aviso prévio para fins de melhoria do produto. A ELECOM não é responsável por quaisquer danos ou falhas de outros dispositivos causados pelo uso deste produto. As imagens são apenas para fins ilustrativos e podem diferir do produto real.
  • Page 65 일본 외 다른 국가에서 구입하는 고객은 문의 사항이 있는 경우 제품 구입 국가의 대리점에 연락하 십시오. ‘ELECOM CO., LTD.(일본)’는 일본 이외의 국가에서 구입 또는 사용 문의에 대한 고객 지원을 제공하지 않습니다. 또한 일본어 이외의 외국어는 지원되지 않습니다. 제품의 교환은 ELECOM 보증...
