TORQUE FOR HYDRAULIC TUBES AND FITTINGS

NOMINAL TUBE OD
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"
1-1/2"
Copyright 2020, Heil Environmental
Printed in the U.S.A.
®
POWERTRAK
General Information
FLAT FACE ORFS FITTINGS
SET WRENCH TO
TORQUE WRENCH SETTING
21 ft-lbs.
33.5 ft-lbs.
50 ft-lbs.
50 ft-lbs.
75 ft-lbs.
105 ft-lbs.
130 ft-lbs.
178.5 ft-lbs.

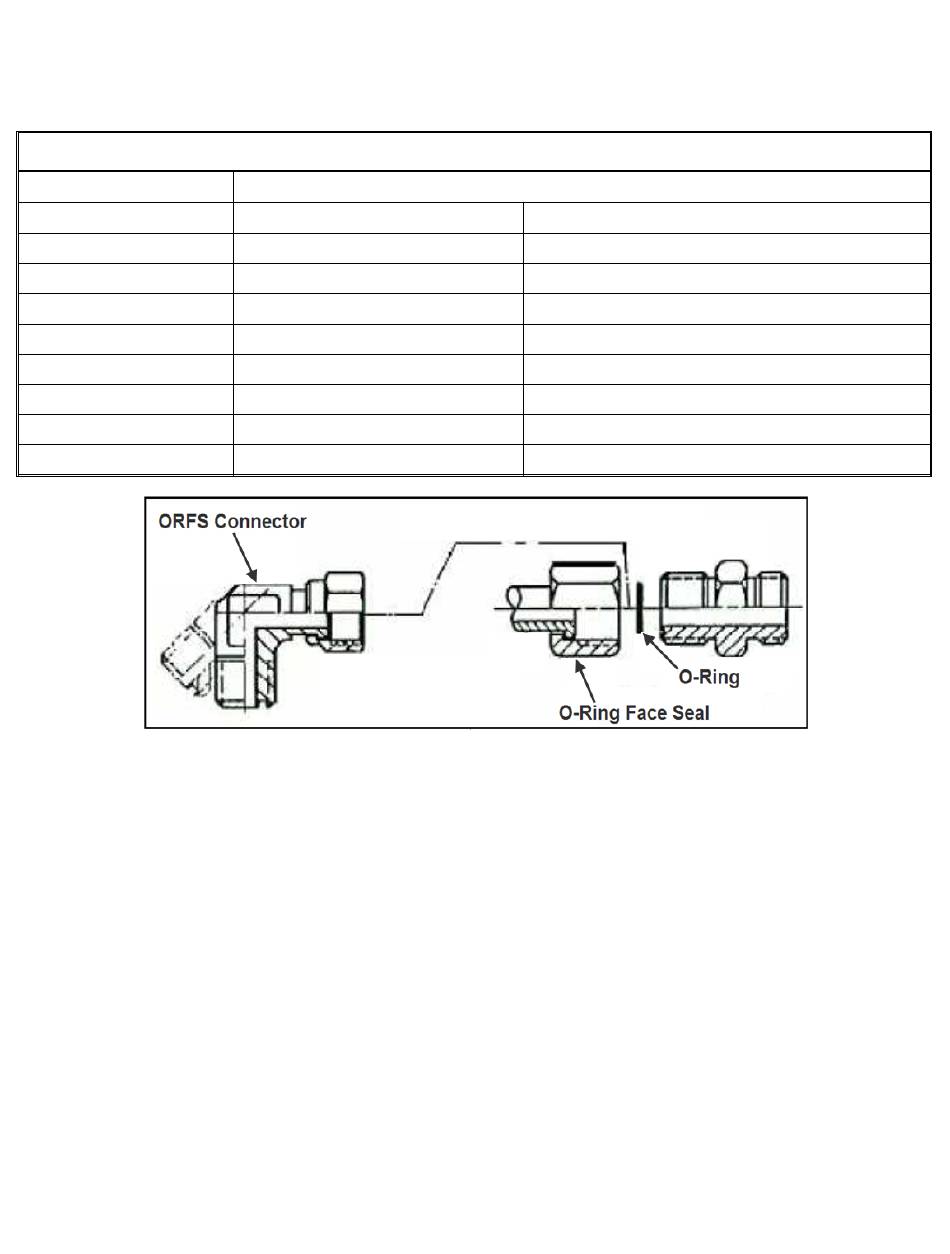

Figure 2. Torque for Hydraulic Tubes and Fittings
COMMERCIAL PLUS
ALTERNATE TORQUE UNITS
250 in-lbs.
400 in-lbs.
600 in-lbs.
600 in-lbs.
900 in-lbs.
1260 in-lbs.
1560 in-lbs.
2140 in-lbs.
21
