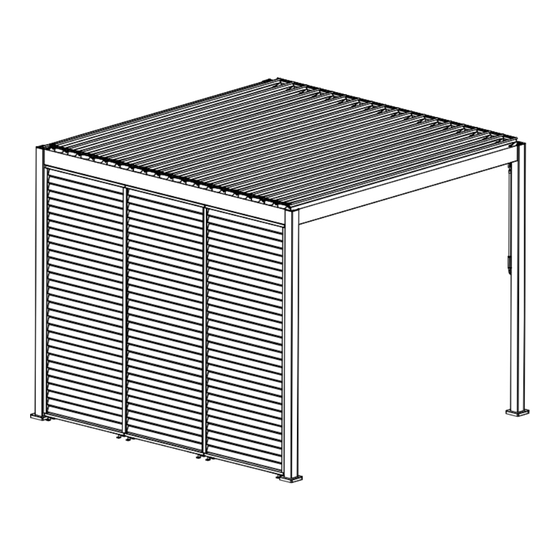

- Page 1 88 FIXED SHUTTER WALL INSTRUCTION MANUAL...
- Page 2 THANK YOU FOR PURCHASING THE MIRADOR FIXED SHUTTER WALL! This manual will provide you with clear and detailed instructions on how to safely and correctly assemble and maintain your fixed shutter wall, to ensure it brings you many years of use and enjoyment.
-
Page 3: Table Of Contents
TABLE OF CONTENTS - Before Assembling Your Fixed Shutter Wall - Important Safety Advice - List of Parts - Assembly - Enjoy Your Fixed Shutter Wall - Care & Maintenance - Warranty & Complaints Procedure... -
Page 4: Before Assembling Your Fixed Shutter Wall
BEFORE ASSEMBLING YOUR FIXED SHUTTER WALL WARNING: Improtant safety instructions. Follow all instructions, since incorrect installation can lead to severe injury. Make sure you have all the tools required for assembling your fixed shutter wall In order to assemble your fixed shutter wall safely and correctly, please ensure you have access to the following tools and accessories, all of which are not provided. - Page 5 Select a suitable location: The fixed shutter wall must be positioned and fixed on a properly installed Mirador pergola, The ground should be solid and flat The ground should be level which is installed on a flat concrete ground, providing proper stability.
-
Page 6: Important Safety Advice
IMPORTANT SAFETY ADVICE For the safety of all persons installing and using the fixed shutter wall, it is important to follow the safety guidelines below. It is recommended that two people lift Always wear appropriate work shoes, Work well away from power lines, If using power tools or a ladder, the fixed shutter wall once assembled. - Page 7 Do not assemble the fixed shutter Install on non-Mirador branded wall when you find damaged parts After prolonged use we Please recycle packaging where pergola will void the product or any parts missing. Only use recommend you check all the possible.
-
Page 8: List Of Parts
LIST OF PARTS PART NAME Right vertical beam Left vertical beam Horizontal bottom bar Horizontal top bar Aluminum louver Louver Foot pad Phillips flat head screw 14+1 ST4.2x25mm Phillips pan head screw 20+1 ST4.2x25mm Phillips pan head screw ST5.5x50mm Plastic expansion pipe 8x40mm... -
Page 9: Assembly
ASSEMBLY 1. Vertical & horizontal beam assembly Installation Video The assembly direction of the vertical beams ( & ) will change according to the final installation position of the fixed shutter wall. Notice: Pay attention to the direction of vertical beams before assembly. - Page 10 B/B' Secure the aluminum louvers to the left vertical beam with screws B/B' . Use 2 screws per louver , using electric screwdriver. B/B' Insert all the louvers into the left vertical beam B/B' x 30 Place the right vertical beam onto A/A' A/A'...
- Page 11 B/B' Insert the horizontal top bar horizontal bottom bar to the top and bottom sides of the assembled frame. B/B' Notice: Pay attention to the direction of A/A' Use electric screwdriver to secure the horizontal top bar to the assembled frame with 6 screws , and the horizontal bottom bar...
- Page 12 Install the foot pads to the bottom of the fixed shutter wall with screw using electric screwdriver. A/A' Repeat steps to assemble the other fixed shutter walls.
- Page 13 2. Install the fixed shutter wall onto a Mirador pergola ® Position the fixed shutter wall (against the pergola pillar or in the center ), make sure the fixed shutter wall is perpendicular to the ground. mark the position of the drill holes on the ground with pencil.
- Page 14 Hook the fixed shutter wall onto the beam of the pergola. Fix the fixed shutter wall to the ground with screw , using electric screwdriver. If you plan to install three fixed louver walls on one side of the pergola, be sure to start with the fixed louver walls on both sides.
-
Page 15: Enjoy Your Fixed Shutter Wall
ENJOY YOUR FIXED SHUTTER WALL... -
Page 16: Care & Maintenance
CARE & MAINTENANCE Dust and dirt will collect on the fixed shutter Use a water/detergent mixture and a soft Air dry or wipe with a soft clean cloth. wall and will require periodic cleaning. clean cloth to clean the fixed shutter wall. In coastal areas, it is recommended that you frequently spray the fixed shutter wall with From more soiled areas, rinse the surface... -
Page 17: Warranty & Complaints Procedure
COMPLAINTS PROCEDURE For terms and conditions of our limited warranty, please visit www.miradoroutdoor.com or contact your local Mirador sales representative. Complaints procedure: • The complaint must include an order number or transaction number. Goods without an order number or transaction number are not covered under the warranty. - Page 18 FOLLOW US ON WWW.MIRADOROUTDOOR.COM @miradoroutdoor @MiradorOutdoor @miradoroutdoor @miraadoroutdoor...
