Emerson Rosemount BP20E Quick Start Manual
Power module for wireless corrosion transmitter
Hide thumbs
Also See for Rosemount BP20E:
- Quick start manual (12 pages) ,
- Quick start manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Emerson Rosemount BP20E
Summary of Contents for Emerson Rosemount BP20E

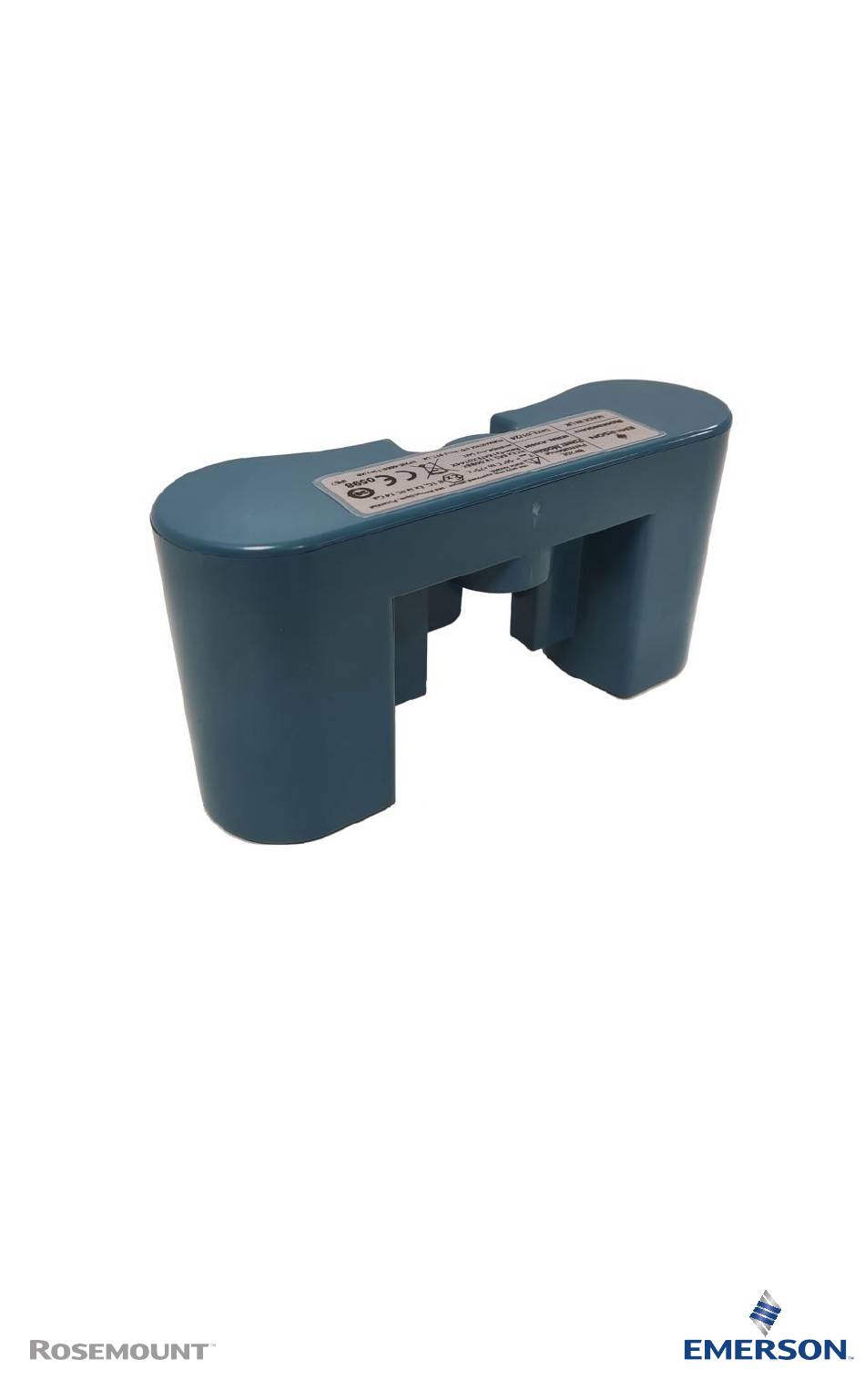

- Page 1 Quick Start Guide 00825-0100-4212, Rev BC March 2024 Rosemount BP20E Power Module for ™ Wireless Corrosion Transmitter...
- Page 2 212 °F (100 °C). Risk of fire or explosion. NOTICE This guide provides basic guidelines for the installation of the Rosemount BP20E Power Module for the Rosemount Wireless Corrosion Transmitter. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting or Intrinsically Safe (IS) installations.
-
Page 3: Table Of Contents
March 2024 Quick Start Guide Contents Overview............................5 Physical installation........................6 Verify operation..........................8 Disposal/recycling........................9 Product certifications........................ 10 Quick Start Guide... - Page 4 Quick Start Guide March 2024 Emerson.com/Rosemount...
-
Page 5: Overview
Overview 1.1 Warning on product labels The Rosemount BP20E Power Module for Wireless Corrosion Transmitters each have a warning printed on them. In each case, the warning text is the same. Below is a figure that shows the label. The text of the warning is: “Use only with approved sensor – see instructions. -
Page 6: Physical Installation
3. Clip on the power module as shown in Figure 2-1. 4. Fit the two M3 retaining bolts using a 2.5 mm AF hex key. 5. The sensor will resume normal operation. No configuration is required. Emerson.com/Rosemount... - Page 7 March 2024 Quick Start Guide Figure 2-1: Rosemount BP20E Installation 2.4 Power module removal To remove the power module: 1. Remove the two M3 retaining bolts using a 2.5 mm AF hex key. 2. Depress the clip on the front of the power module (on the opposite side of the sensor label).
-
Page 8: Verify Operation
3 Verify operation 3.1 Sensor operation Correct sensor operation can be verified by: • Checking the join status in Gateway Manager software, • Checking in Data Manager that data has been received once the sensor has joined the gateway. Emerson.com/Rosemount... -
Page 9: Disposal/Recycling
March 2024 Quick Start Guide 4 Disposal/recycling 4.1 Disposing of depleted power modules 1. Dispose in accordance with applicable laws and regulations in your country and state. 2. Disposal should only be performed by authorized professionals in accordance with applicable requirements for hazardous waste transportation and disposal. -
Page 10: Product Certifications
European Directive information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 5.2 Ordinary location certification... - Page 11 March 2024 Quick Start Guide EN 60079-11: 2012 II 1 G, Ex ia IIC T4 Ga, T = -50 °C to +75 °C, IP67 Markings: Specific Condition for Safe Use (X): The polymer enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth. 5.7 ...
- Page 12 Ex ia IIC T4 Ga Markings: Specific condition for safe use (X): See certificate for specific conditions of safe use. 5.13 Japan I4 CML Intrinsically Safe (IS) CML 17JPN2097X, CML 19JPN2339X, CML Included on sensor certificates: 17JPN2140X, CML 22JPN2619X Emerson.com/Rosemount...
- Page 13 March 2024 Quick Start Guide Ex ia IIC T4 Ga (-50 °C ≤ T ≤ +75 °C) Markings: Specific condition for safe use (X): See certificate for specific conditions of safe use. 5.14 Declaration of Conformity Figure 5-1: Declaration of Conformity Quick Start Guide...
- Page 14 Quick Start Guide March 2024 5.15 China ROHS Emerson.com/Rosemount...
- Page 15 March 2024 Quick Start Guide Quick Start Guide...
- Page 16 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
