Quick Start Guide
00825-0100-4212, Rev AA
July 2019
Rosemount
BP20E Power Module for
Wireless Corrosion Transmitters

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount BP20E and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson Rosemount BP20E

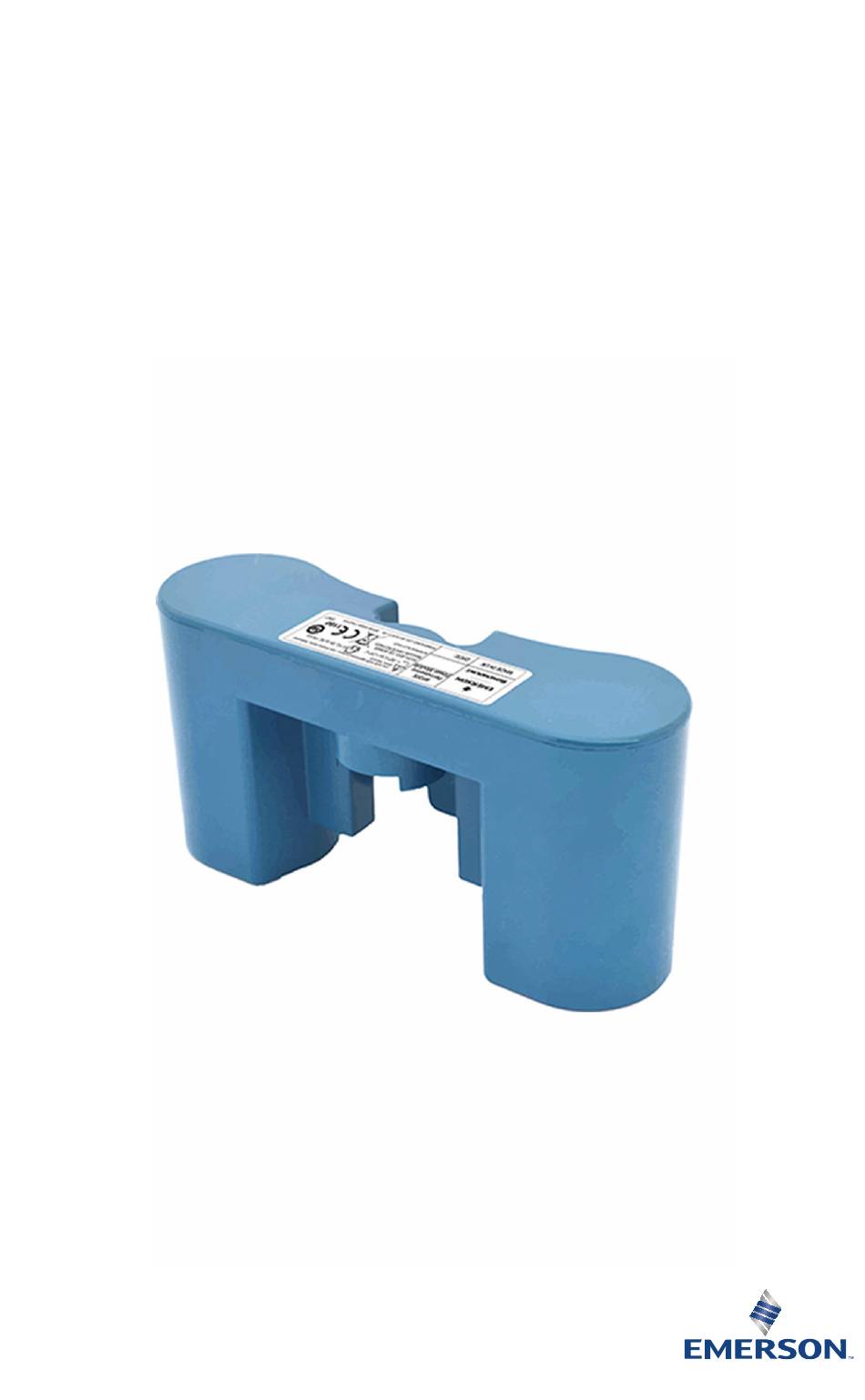

  • Page 1 Quick Start Guide 00825-0100-4212, Rev AA July 2019 ™ Rosemount BP20E Power Module for Wireless Corrosion Transmitters...
  • Page 2 (I.S.) installations. Refer to the Rosemount Wireless Permasense Corrosion Transmitter Reference Manual for more instruction. The manual and this guide are also available electronically on Emerson.com \Permasense. WARNING Explosions could result in death or serious injury.
  • Page 3: Table Of Contents

    July 2019 Quick Start Guide Contents Overview............................5 Physical installation........................6 Verify operation........................... 8 Disposal/recycling........................9 Product certifications......................... 10 Quick Start Guide...
  • Page 4 Quick Start Guide July 2019 Emerson.com/Rosemount...
  • Page 5: Overview

    July 2019 Quick Start Guide Overview Warning on product labels ™ The Rosemount BP20E Power Module for Wireless Corrosion Transmitters each have a warning printed on them. In each case the warning text is the same. Below is a figure that shows the label. The text of the warning is: “Use only with approved sensor –...
  • Page 6: Physical Installation

    3. Clip on the power module as shown in Figure 2-1. 4. Fit the two M3 retaining bolts using a 2.5mm AF hex key. 5. The sensor will resume normal operation. No configuration is required. Figure 2-1: Rosemount BP20E Installation Emerson.com/Rosemount...
  • Page 7 July 2019 Quick Start Guide Power module removal To remove the power module: 1. Remove the two M3 retaining bolts using a 2.5mm AF hex key. 2. Depress the clip on the front of the power module (on the opposite side to the sensor label).
  • Page 8: Verify Operation

    July 2019 Verify operation Sensor operation Correct sensor operation can be verified by: • Checking the join status in Gateway Manager software, OR • Checking in Data Manager that data has been received once the sensor has joined the gateway. Emerson.com/Rosemount...
  • Page 9: Disposal/Recycling

    July 2019 Quick Start Guide Disposal/recycling Disposing of depleted power modules 1. Dispose in accordance with applicable laws and regulations in your country and state. 2. Disposal should only be performed by authorized professionals in accordance with applicable requirements for hazardous waste transportation and disposal.
  • Page 10: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine...
  • Page 11 July 2019 Quick Start Guide Standards: EN IEC 60079-0:2018 EN 60079-11: 2012 Markings: II 1 G, Ex ia IIC T4 Ga, Tamb = -50 °C to +75 °C, IP67 Specific Conditions for Safe Use (X): 1. The polymer enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth.
  • Page 12 The Emerson logo is a Twitter.com/Rosemount_News trademark and service mark of Emerson Electric Facebook.com/Rosemount Co. Rosemount is a mark of one of the Emerson Youtube.com/user/ family of companies. All other marks are the RosemountMeasurement property of their respective owners.
