BPBIO750
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPBIO750 and is the answer not in the manual?

Questions and answers

Related Manuals for inbody BPBIO750

Summary of Contents for inbody BPBIO750

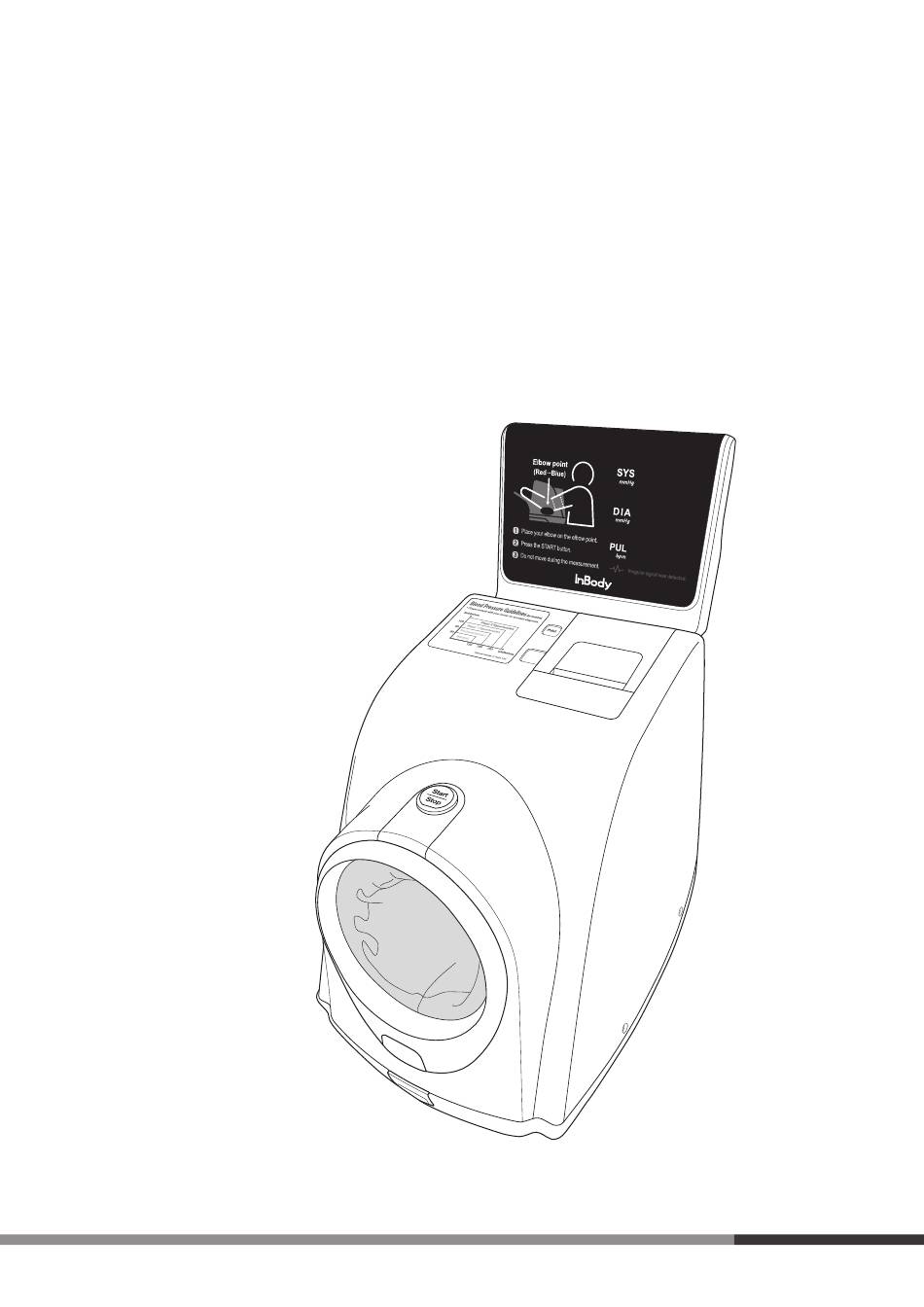

  • Page 1 BPBIO750 User’s Manual...
  • Page 2 InBody Co., Ltd. under the copyright laws. This manual may be printed incorrectly and subject to change without notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User’...

  • Page 3: Table Of Contents

    Table of Contents I. BPBIO750 Installation ......5 A. Product Components ........5 B. Operating Environment ........5 C. Installation Instructions ........5 D. Loading and Reloading Printer Paper ..7 E. Replacing Cuff Cover ........8 F. Setup ..............9 G. Precautions for Maintenance ....12 II.
  • Page 4 Safety Symbols used in the User’s Manual Failure to comply with safety warnings and regulations can cause serious injury Warning or death. Failure to comply with safety precautions Caution can damage the equipment. Reading the notes can help you get the Note most out of your device.

  • Page 5: Bpbio750 Installation

    Print Stage 2 Hypertension Stage 1 Hypertension Prehypertension Normal Systol i c Bl o od Pressure Remove the protective vinyl on the BPBIO750 and take it out of the box. Remove the packing material. Start Stop Protective vinyl Packing pads...
  • Page 6 BPBIO750 desk, align the desk fixing grooves • Do not install the equipment where the power cable is on the bottom of the BPBIO750 with the grooves on the difficult to disconnect. desk and secure them with the two fixing screws.

  • Page 7: Loading And Reloading Printer Paper

    BPBIO750 Installation D. Loading and Reloading When powered on, the BPBIO750 will automatically calibrate and display the following screen. Printer Paper Press the button shown below to open the cover while the BPBIO750 is turned off. Caution • Do not operate or touch the device while it is calibrating. It PUSH may cause errors to future tests.

  • Page 8: Replacing Cuff Cover

    Front ring Front cover Note • Two cuff covers are included with the BPBIO750. (One is already installed in the equipment.) Pull the cuff cover as shown below to remove it from the • You may purchase additional cuff covers separately.

  • Page 9: Setup

    BPBIO750 Installation F. Setup Setup consists of time settings, sound settings, Result Sheet printing, pressure unit setting, and communication settings. Configuring Setup When the ‘ ’ and ‘Print’ buttons are pressed and held simultaneously for 2 seconds while on the home screen, ‘...
  • Page 10 BPBIO750 Installation Press the button to enter the corresponding Detailed description of Setup item, and then use the UP / DOWN buttons to When configuring Setup, the following messages will be change the current setting value from ‘ ’ to displayed in the Systolic, Diastolic, and Pulse screen.
  • Page 11 BPBIO750 Installation Measurement Communication InBody mode setting The arithmetic mean of all three 3 consecutive measurements measurements The arithmetic mean of the second and the third measurements One-time measurement mode Result Sheet item Type of Result 3-line automatic output (vertical) * “QR Code”...

  • Page 12: Precautions For Maintenance

    • Make sure the power cord is not damaged. • Make sure the power cord is not a tripping hazard. The BPBIO750 calibrates automatically when it is turned on, If an error message appears during calibration, please contact product support.

  • Page 13: Blood Pressure Test

    (toward the front) of the * If examinee tests in an agitated state, the results may BPBIO750 - the cuff will quickly release. be inaccurate and read higher than normal. Insert the arm until the elbow is positioned in the elbow groove, as shown below.
  • Page 14 The cuff automatically releases once the test has Others completed. Wait for the cuff to fully loosen before The Start/Stop button on the rear of the BPBIO750 also pullingout your arm. allows you to initiate the test, which can be useful for the administrator to conduct the test from the back of the Check the results on the screen.

  • Page 15: Test Posture

    For the most accurate results, get into the proper posture Pulse rate per minute [bpm] for testing. Pulse pressure [mmHg] * The BPBIO750 allows examinees to measure with either arm. [SYS - DIA] Mean Arterial Pressure [mmHg] Blood Pressure Cuff...

  • Page 16: Transportation And Storage

    A. Cautions during B. Repacking Instructions Transportation Turn off the BPBIO750. To transport the BPBIO750 securely, two people should keep the equipment parallel to the ground. Remove all connected cables and put the packing material into the BPBIO750. Wrap package in protective vinyl and insert the packing pads into the box.

  • Page 17: Faq

    Voice guidance does notwork. • This may occur when the volume knob on the Potential Solution: rear of the BPBIO750 is turned off.Adjust the B. Regarding the Equipment volume knob to your desired level. If your technical issues cannot be resolved with the information below, please contact Product Support.

  • Page 18: Regarding The Test

    Can results vary depending on the testing Issue: environment and temperature? • The BPBIO750 can operate at 5 ~ 40ºC. Potential • Thick clothing or rolled up sleeves may produce Solution: However, if the examinee feels that the incorrect results.
  • Page 19 The blood pressure values are different when Issue: taken at home compared to the hospital. • Blood pressure can change depending on the Potential Solution: environment. Test in the same environment for consistent results. • Psychologically, people tend to feel more relaxed at home than the hospital.

  • Page 20: Others

    A. Exterior and Functions Below is a list of BPBIO750 components and its function.  A switch to turn the equipment on/off * Please check each component of the system for damage prior to installation.

  • Page 21: Product Classification

    Others D. Product Specifications Safety Symbols Danger: high voltage Test Oscillometric Instructions Warning / Caution Pressure: 0 to 300 mmHg Test range Pulse: 30 to 240 bpm Note Degree of Pressure: ± 2mmHg BF-type equipment precision Pulse: Within ± 1.5% Power on Systolic blood pressure, diastolic blood pressure, pulse rate, pulse pressure,...
  • Page 22 Others Rated voltage AC 100-120 / 200-240V, 50/60Hz, 48VA and Power consumption Dimensions Approx. 299 (W) × 547 (D) × 485 (H) mm Weight Approx. 7.1 kg Temperature 5 ~ 40ºC , Operating Humidity 15 ~ 90% RH, environment Atmospheric pressure 70 ~ 106 kPa Temperature -20 ~ 70ºC , Storage Humidity 10 ~ 95% RH,...

  • Page 23: Emc Information (Declaration)

    Others E. EMC Declaration Basic EMC Phenomenon Operating mode Port tested Test Voltage Test level/requirement standard or test method 100 V, 50 Hz CISPR 11:2015 100 V, 60 Hz Mains terminal +A1:2016+A2:2019 Continuous AC Mains 120 V, 60 Hz Group 1, Class B disturbance voltage EN 55011:2016 operation mode...
  • Page 24 The BPBIO750 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. Portable RF communications equipment should be used no closer than 30 cm (12 inches) to any part of the BPBIO750. Otherwise, degradation of the performance of this equipment could result.
  • Page 28 1639 ©2023 InBody Co., Ltd. All rights reserved. IM-H2-ENG-A-231227...
