Summary of Contents for inbody BPBIO 320S

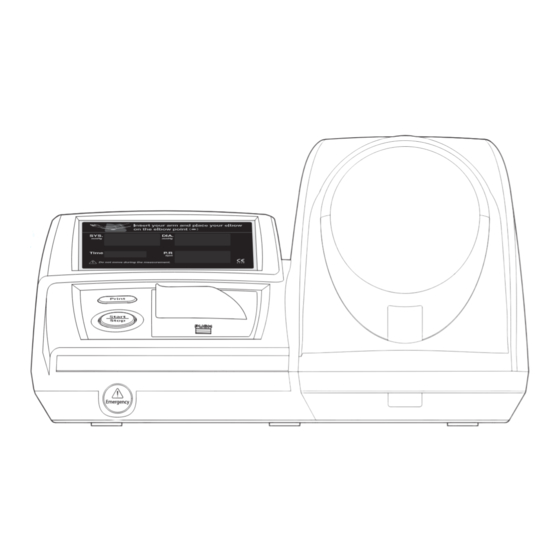

- Page 1 User’s Manual...
- Page 2 Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd. under the copyright laws. This manual may be printed incorrectly and subject to change without notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User᾽s Manual.
-
Page 3: Table Of Contents
User’s Manual Contents I. BPBIO 320S Installation A. Product Components B. Operating Environment C. Installation Instructions D. Loading and Reloading Printer Paper E. Replacing Cuff Cover F. Setup G. Connecting Multi-Display Device H. Connecting to InBody I. Precautions for Maintenance II. -
Page 4: Bpbio 320S Installation
Chair for BPBIO 320S B. Operating Environment Please make sure the environment is adequate for the BPBIO 320S installation. This equipment is designed for indoor use. If installing the equipment outdoors, the following requirements must be fulfilled: Temperature range 50 to 104ºF... -
Page 5: Installation Instructions
C. Installation Instructions 1. Open the BPBIO 320S box, and remove the air cushion (small size). Unfold the air cushion (large size) and take out the BPBIO 320S from the box, and then remove the protective box. Take off the protective vinyl out of the BPBIO 320S, and remove the packing material. - Page 6 2. Place the equipment on a solid table that can withstand the weight of the BPBIO 320S (approx. 20 lbs). If desk for the BPBIO 320S is available, align the grooves on the bottom of the BPBIO 320S with the grooves on the desk and secure them with two fixing screws.
- Page 7 Do not disassemble the equipment arbitrarily. This may cause electric shock, injury, product malfunction, and/ • or inaccurate results. Unauthorized disassembly will void the manufacturer’s warranty. Do not let the BPBIO 320S touch with other electronic devices when on. This may cause electric shock. • Avertissement N'installez pas l'équipement à...
- Page 8 6. Turn the BPBIO 320S on by pressing the power switch located on the back of the device. Power Switch 7. When the BPBIO 320S is turned on, the following screen is displayed and a calibration is automatically performed. Caution Do not operate or touch the device while it is calibrating.
-
Page 9: Loading And Reloading Printer Paper
Paper cut with scissors Ripped paper 2) Open the cover by pressing ‘PUSH’ while the BPBIO 320S is turned on. 3) If the device is being used for the first time, remove the protective paper located inside. * The protective paper (thermal printing paper) is in the printer groove. Pull upward to remove it. - Page 10 6) Remove the cut paper, and close the printer paper cover. 2. Reloading Printer Paper 1) Open the cover by pressing ‘PUSH’ mark on the bottom center of it while the BPBIO 320S is turned 2) Press button to remove the remaining paper.
-
Page 11: Replacing Cuff Cover
The cuff cover of the BPBIO 320S should be replaced periodically for sanitary purposes. Follow the guide below to replace the cuff cover. 1. Remove the front cover of the BPBIO 320S by pushing downward. Loosen the screw with a screwdriver. Screws Front Cover 2. - Page 12 5. Secure the new cuff cover onto the grooves on the front and rear of the BPBIO 320S. 6. Attach the previously removed front and rear rings on the BPBIO 320S and secure them with screws. Rear ring Front ring 7.
-
Page 13: Setup
F. Setup Setup consists of sound settings, motion sensor settings, elbow sensor settings, Result Sheet printing, time stamps and cautionary comments. 1. Settings 1) When button and button are pressed and held at the same time for 2 seconds while on the home screen, the first screen of the Setup, 'Sound Setting' is displayed. - Page 14 The following is an example showing how to change a ‘3-line manual output’ Result Sheet setting. While on the home screen, press and hold button and button at the same time for 2 seconds. Press button to move to screen. ▼...
- Page 15 2. Detailed description of Setup When in the Setup menu, the following information is displayed in the Systolic, Diastolic and Pulse sections of the screen. Display Function Description Systolic Diastolic Pulse Voice guide Sound Beep guide Disable speaker Motion sensor is operating with “ding-dong” sound Setting up the motion sensor...
- Page 16 3. Blood Pressure Evaluation 1) While on the home screen, press and hold button and UP (▲) button at the same time for more than 2 seconds. 2) When 111 is displayed in the systolic blood pressure column, diastolic blood pressure column, and pulse column as shown below, the blood pressure evaluation has been disabled.
- Page 17 4. Displaying test counts 1) While on the home screen, hold the DOWN (▼) button for more than 2 seconds. Test counts for the day will be displayed in the diastolic blood pressure column. Test counts for the day and total test counts are printed.
-
Page 18: Connecting Multi-Display Device
BPBIO 320S is turned off. Then connect the other end of the display device cable to connection terminal on the left of the display device. 3. Insert the connected multi-display device into the groove on the top of the BPBIO 320S. Then, insert the Information Panel into the groove on top of the display device. -
Page 19: Connecting To Inbody
1. Turn off the BPBIO 320S. 2. Connect the serial cable to the RS232C (9-pin serial) connection terminal located on the back of the BPBIO 320S. Connect the other end of the serial cable to the serial connection terminal on the InBody device. -
Page 20: Precautions For Maintenance
The BPBIO 320S calibrates automatically when it is turned on. But it may be necessary for a specialist to inspect the device once every two years to maintain its performance and safety. If an error message appears during the self- test, please contact product support at (323)932-6503 ×... -
Page 21: Blood Pressure Test
• Évitez de parler ou de bouger durant le test. • BPBIO 320S est un périphérique de test dédié au bras droit. Les résultats du test peuvent être inexacts si la • pression artérielle est examinée avec le bras gauche. - Page 22 • of the BPBIO 320S. The cuff will release quickly. If the air is not released after the button is pressed, turn off the BPBIO 320S. • Attention En cas d'urgence pendant le test, appuyez sur le bouton ou sur le bouton en bas à...
- Page 23 6. The cuff is automatically released after completing the test. Wait for the cuff to fully loosen and pull out your arm. 7. Check the results on the screen. * The voice guide will be heard and the Result Sheet will be printed depeneding on settings. * Do not pull the Result Sheet while it is printing.
- Page 24 * The user can check results by using 'Check Blood Pressure Result' at the bottom right of the Information Panel * Consult a physician for accurate diagnosis. Check Blood Pressure Result Note Rest for 5 minutes before testing again. • Blood pressure can vary.
-
Page 25: Test Posture
Sit as as close as possible to the BPBIO 320S * Be sure to place the elbow in the elbow groove before starting the test. * Remove thick clothes. Do not roll up sleeves. -
Page 26: Transportation And Storage
III. Transportation and Storage A. Cautions during Transportation To transport the BPBIO 320S safely, two people should keep the equipment parallel to the ground. Caution Keep the equipment horizontal while transporting. • Attention Lorsque vous transportez l'équipement seul de façon inévitable, soulevez-le en le maintenant horizontal comme suit. -
Page 27: Repacking Instructions
Protective box Package protective vinyl 3. Place the large air cushion on the bottom of the packing box and place the BPBIO 320S on it. Cover with the small air cushion and seal the box with tape. Air cushion (large size) -
Page 28: Faq
When using a power strip, make sure the switch is turned on. • This can occur when The device is not the power cable is Power strip turning on. not fully inserted into the power outlet. Make sure the power cable (AC 250V 10A) provided by • InBody is in use. - Page 29 • Be sure to turn off the power when replacing the fuse. • The correct rated fuse must be used. (250V, 2.5AL) Turn on the volume knob on the rear of the BPBIO 320S. The volume knob on the rear of the blood pressure monitor may be turned off.
- Page 30 Please record error messages that appear. It may be useful for Product Support. • Remarque Veuillez contacter le Centre de service à la clientèle 323-932-6503 × 2 de InBody Co., Ltd pour la réparation • et l'inspection. Puisque les messages d'erreur et les détails, tels que les fiches de résultats incorrects, peuvent être utilisés •...
-
Page 31: Regarding The Test
The user may have tested without sufficient rest. Take the test after resting at • least 5 minutes. Do not talk or move during the test. • * Blood pressure may vary throught the day. InBody recommends testing at different times of the day. - Page 32 Question Answer When should blood pressure Blood pressure may vary throughout the day, as shown below. • • be measured? Blood pressure classification of World Health Organization Number of Blood pressure patients values (people) Time zone in incidence of myocardial infarction N=703 Fluctuation of blood pressure during the day N=5 (Normal Blood Pressure)
-
Page 33: Others
Others * The BPBIO 320S was manufactured by the quality control procedures of InBody Co., Ltd. InBody Co., Ltd. complies with ISO9001 and ISO13485 which are international quality management systems. * This equipment complies with IEC60601-1, the international safety standard for electronic medical equipment. This equipment also complies with IEC60601-1-2, the international standard for electromagnetic compatibility. -
Page 34: Safety Information
B. Safety Information Warning If this equipment has been altered, it must be inspected to ensure that it can be used safely. • Results can only be interpreted by experienced healthcare professionals. It cannot be used for diagnosis, • medication, or other treatments performed at the consumer’s discretion without a doctor ̓ s prescription. Avertissement Si cet équipement a été... -
Page 35: Product Classification
Other Symbols Manufacturer Serial number Authorized representative in the Alternating current EUROPEAN COMMUNTY European conformity Operating instructions C. Product Classification Oscillometric multi-functional electronic blood pressure monitor Type of protection against electric shock: Class 1 device • Level of protection against electric shock: BF-type •... -
Page 36: Specifications
D. Specifications Test Instructions Oscillometric Test range Pressure: 0-300 mmHg Pulse: 30-240 bpm Degree of Precision Pressure: ±2 mmHg Pulse: ±1.5% Test result Systolic blood pressure, diastolic blood pressure, Average blood pressure, Pulse pressure, Heart rate, PRP (Pressure rate product) Test Time Approx. -
Page 37: Emc Information (Declaration)
E. EMC Information (Declaration) The BPBIO 320S is intended for use in the electromagnetic environment specified below. The customer or the user of the BPBIO 320S should assure that it is used in such an environment. Electromagnetic emissions Emissions test... - Page 38 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be completed. If the measured field strength in the location in which the BPBIO 320S is used exceeds the applicable RF compliance level, the BPBIO 320S should be monitored to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the BPBIO 320S.
