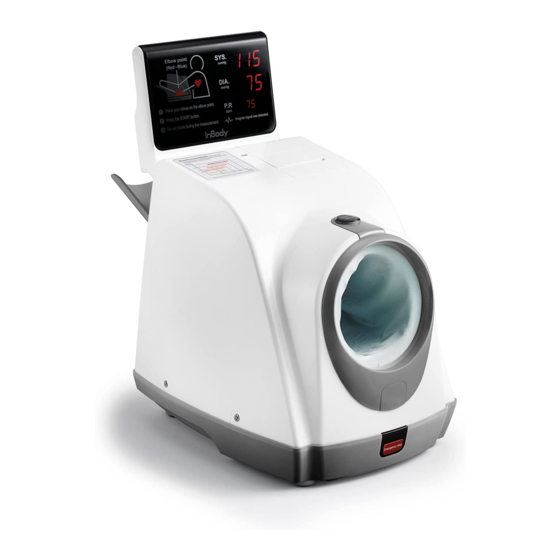

BPBIO750
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPBIO750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inbody BPBIO750

Summary of Contents for inbody BPBIO750

  • Page 1 BPBIO750 User’s Manual...
  • Page 2 Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd. under the copyright laws. This user manual may be printed incorrectly and subject to change without notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User’s Manual.

  • Page 3: Table Of Contents

    BPBIO750 User’s Manual Contents I. BPBIO750 Installation A. Product Components B. Operating Environment C. Installation Instructions D. Loading and Reloading Printer Paper E. Replacing Cuff Cover F. Setup G. Connecting to InBody H. Precautions for Maintenance II. Blood Pressure Test A. Precautionary Steps B.

  • Page 4: Bpbio750 Installation

    I. BPBIO750 Installation A. Product Components The BPBIO750 consists of the following components. Make sure all of the following components are present. * Please check each component of the system for damage prior to installation. Basic Components The BPBIO750 Power cable 110V or 220V (AC 250V 10A 1.8m (70.9 in.)) 1 EA Two rolls of printing paper User’s Manual...

  • Page 5: Operating Environment

    Caution Do not carry the equipment by holding the cuff. • Keep packing material to repack the BPBIO750 at a later time. Dispose of trash according to local laws and • regulations. Refer to the figure below when transporting the BPBIO750.
  • Page 6 2. Place the equipment on a solid table that can withstand the weight of the BPBIO750 (approx. 7.1kg (15.65lb)). If desk for the BPBIO750 is available, align the desk-fixing grooves on the bottom of the BPBIO750 with the grooves on the desk and secure them with two fixing screws. desk for the BPBIO750 is sold separately. SYS. DIA. Desk fixing grooves Desk grooves Place your elbow on the elbow point.
  • Page 7 Do not disassemble the equipment arbitrary. This may cause electric shock or injury, product malfunction, and/or • inaccurate results. Unauthorized disassembly will void the manufacturer’s warranty. Do not let the BPBIO750 touch with other electronic devices when on. This may cause in electric shock. • Caution Plugging the device into an ungrounded outlet may cause malfunction or electric shock and/or inaccurate •...
  • Page 8 Use the anti-theft cable which is used for laptop etc. Theft protection cable is sold separately. 5. Turn the BPBIO750 on by pressing the power switch located on the back of the device. Power switch 6. When the BPBIO750 is turned on, the following screen is displayed and a calibration is automatically performed.

  • Page 9: Loading And Reloading Printer Paper

    D. Loading and Reloading Printer Paper 1. Press the button below to open the cover while the BPBIO750 is turned on. PUSH 2. Insert the printer paper in the direction as shown below. After inserting the printer paper, let a certain amount of paper come out of the cover, and close the cover to complete the installation.

  • Page 10: Replacing Cuff Cover

    E. Replacing Cuff Cover The cuff cover of the BPBIO750 should be replaced periodically for sanitary purposes. Follow the guide below to replace the cuff cover. Print 1. Remove the front cover of the BPBIO750 by pushing downward, and loosen the screw with a screwdriver. Remove the ring on the front of the BPBIO750 by pulling it forward. SYS. DIA. SYS. DIA. Screw...
  • Page 11 Les résultats de la pression artérielle pourraient être faussés si la ligne de couture n’est pas placée vers le • bas. 5. Attach the previously removed front and rear rings on the BPBIO750 and secure them with screws. Close Print the front cover of the BPBIO750.

  • Page 12: Setup

    F. Setup Setup consists of time settings, sound settings, results sheet printing, pressure unit setting and communication settings. 1. Setting Setup 1)When ' ' button and 'Print' button are pressed and held at the same time for 2 seconds while on the home screen, ' '(Time setting), which is the first screen of the Setup, will blink. The current setting status will be shown in the Diastolic ( ) column and Pulse (Hour value) column.
  • Page 13 SYS. DIA. 2. Setup Example Place your elbow on the elbow point. Press the START button. The following is an example showing how to change the automatic result sheet printing option to manual Do not move during the measurement. printing option. SYS.
  • Page 14 YY / MM / DD Date output format MM / DD / YY DD / MM / YY mmHg Pressure unit InBody Communication 3-line automatic output (vertical) * F13-F18 function not available Type of Results sheet 3-line automatic output (horizontal)
  • Page 15 Output of blood pressure common sense on Blood pressure the Results sheet knowledge Not used Results Output of pulse graph on the results sheet sheet item Pulse graph Not used Output of customized logo on the result sheets Logo Not used Elbow sensor is operating Setting up the Elbow Sensor Elbow sensor is disable...

  • Page 16: Connecting To Inbody

    * Serial cable is sold separately. 1. Turn off the BPBIO750. 2. Connect the serial cable to the RS232C (9-pin serial) connection terminal located on the back of the BPBIO750. Connect the other end of the serial cable to the serial connection terminal on the InBody device.

  • Page 17: Precautions For Maintenance

    Make sure the power cord is not a tripping hazard. • The BPBIO750 calibrates automatically when it is turned on. But it may be necessary for a specialist to inspect the device once every two years to maintain its performance and safety. If an error message appears during the calibration, please contact product support.

  • Page 18: Blood Pressure Test

    Blood Pressure Test A. Precautionary Steps Caution User should rest at least 5 to 10 minutes before the test. • Do not roll up the user’s sleeve, but take off thick clothes. • User should sit up straight in the chair. •...
  • Page 19 BPBIO750. The cuff will release quickly. Attention Si une urgence survient pendant le test, appuyez sur le bouton Arrêt/Marche ou Arrêt d’urgence, en bas sur • le devant du BPBIO750. la pression du brassard se relâchera automatiquement. Emergency stop button...
  • Page 20 * Please consult with your physician for accurate diagnosis. 8. Others The Start/Stop button on the rear of the BPBIO750 also allows you to proceed the test, which can be useful for the administrator to conduct the test from the back of the device.

  • Page 21: Test Posture

    C. Test Posture For a correct test result, sit with proper posture while taking the test. * The BPBIO750 allows users to measure with either arm. Blood Pressure Cuff Adjust the height of the chair so the upper part of the right arm and the heart are horizontal with each other.

  • Page 22: Transportation And Storage

    III. Transportation and Storage A. Cautions during Transportation To transport the BPBIO750 safely, two people should keep the equipment parallel to the ground. Caution When transporting the equipment alone, keep the equipment horizontal while transporting. • Attention Lorsque vous transportez l'équipement seul de façon inévitable, soulevez-le en le maintenant horizontal •...

  • Page 23: Repacking Instructions

    B. Repacking Instructions 1. Turn off the BPBIO750. 2. Remove all connected cables and put the packing material into the BPBIO750. Wrap package in protective vinyl and insert the packing pads into tho box. Package Protective Vinyl Packing material Packing pads Caution When repacking the equipment, protective packing materials provided by InBody must be used.

  • Page 24: Faq

    3-prong outlet · When using a -power strip, Power switch of Make sure the switch is turned on. power strip · Make sure the power cable (AC 250V 10A) provided by InBody is in use. <110V> <220V> · It may happend when the fuse is blown. Replace the fuse following to the instructions below. The fuse socket is located on the back of the device beneath the power plug.
  • Page 25 Since error messages and things of detail such as incorrect result sheets can be used as a basis for A/S, please record or keep all of them. • Attention InBody Co, Ltd se décharge de toute responsabilité en cas de problème si la maintenance et l’inspection de votre appareil ne sont pas • effectuées par un technicien accrédité ou un employé de la société.

  • Page 26: Regarding The Test

    Blood pressure value will be measured higher. · Inserting the arm too far or not far enough may produce incorrect results. Place elbow in elbow groove for accurate results. · Thick clothes or rolled up sleeves may produce incorrect results. * The blood pressure value will be measured higher. Remove thick clothes. Do not roll up sleeves. · The user may have tested without sufficient rest. Take the test after resting at least 5 minutes. * The first reading may be high even after taking a sufficient rest. · Do not talk or move during the test. * Blood pressure may vary throught the day. InBody recommends testing at different times of the day.
  • Page 27 If you had blood drawn or had an injection given in the either arm, it is recommended to wait at least 1 hour before testing, or measure with another arm. · Can results vary depending · The BPBIO750 can operate at 10-40ºC(50-104ºF). However, if the user feels on the testing environment that the temperature is low or high, this feeling makes the blood vessels and temperature? expand or contract, so it will ultimately affect the blood pressure results. It is...

  • Page 28: Others

    Others * The BPBIO750 was manufactured by the quality control procedure of InBody Co., Ltd. InBody Co., Ltd. complies with ISO9001 and ISO13485 which are international quality management systems. * This equipment satisfies the common standard for electrical and mechanical safety of medical devices and the common standard for the safety of medical devices. A. Exterior and Functions The names and functions of each part of the BPBIO750 are as followings.

  • Page 29: Safety Information

    B. Safety Information Warning If this equipment has been altered, it must be inspected to ensure that it can be used safely. • Results can only be interpreted by experienced healthcare professionals. It cannot be used for diagnosis, • medication, or other treatments performed at the consumer’s discretion without a doctor̓ s prescription. Caution Excessively high or low temperatures, humidity and pressure may affect the operation of the equipment •...

  • Page 30: Specifications

    D. Product Specifications Test Instructions Oscillometric Test range Pressure: 0 to 300 mmHg Pulse: 30 to 240 bpm Degree of precision Pressure: ± 2mmHg Pulse: Within ± 1.5% Test result Systolic blood pressure, diastolic blood pressure, pulse rate, pulse pressure, mean arterial pressure, rate pressure product Test Time Approx.
  • Page 32 1639 ©2020 InBody Co., Ltd. All rights reserved. BM-USA-H2-B-201228...
