User's Manual
270_manual_ENG_B_150608.indd 2
2015. 6. 8. 18:45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 270 and is the answer not in the manual?

Questions and answers

Summary of Contents for inbody 270

  • Page 1 User’s Manual 270_manual_ENG_B_150608.indd 2 2015. 6. 8. 18:45...
  • Page 2 This manual might have typographical errors, and its content can be changed without a prior notice. InBody Co., Ltd shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User’s Manual.
  • Page 3: Table Of Contents

    III. Transportation and Storage A. Cautions during Transportation B. Repacking Instructions C. Transportation and Storage Environment IV. Frequently Asked Questions (FAQ) A. Regarding the InBody B. Regarding the InBody Test V. Others A. Exterior and Functions B. Safety Information C. Classification D. Specifications E.
  • Page 4: Inbody270 Installation

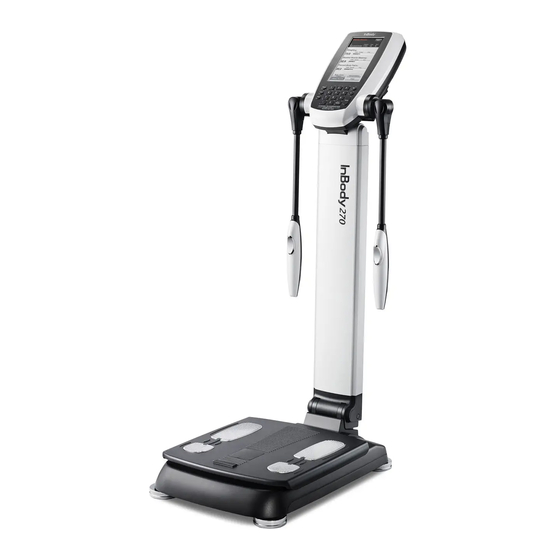

    I. InBody270 Installation A. Product Components The InBody270 consists of the following components. Please make sure all of the following components are present. * Please inspect each component of the InBody270 for defects prior to installation. InBody270 ❶ Adapter (DC 12V, 3.4A) 1 EA ❷...
  • Page 5: Operating Environment

    Never clean the hand and foot electrodes with liquid spray or detergent directly. The equipment may corrode • and/or malfunction if the liquid or detergent leaks inside. Use the InBody Tissue when cleaning the InBody270. 270_manual_ENG_B_150608.indd 5 2015. 6. 8. 18:45...
  • Page 6 Lookin’Body, or a barcode reader. For more information, please refer to 'I. InBody270 Installation E.Connecting Printer, Thermal Printer, Stadiometer, Blood Pressure Monitor, Barcode Reader and SD400' in User's Manual. ❶ Power input port Rear panel InBody Grounded outlet ❷ ❸ 3-socket outlet...
  • Page 7 InBody270 first. This is necessary to minimize electrical surges on the InBody270. Always use the specified adapter provided by InBody as it is a part of the InBody270. Using other adapters • may result in malfunction of the InBody270.
  • Page 8: Initial Setup

    D. Initial Setup 1. The InBody270 automatically starts booting when it is turned on. While booting, it performs a self weight calibration. * While booting (about 5 minutes), make sure there is nothing on top of the footplate. Please do not stand on the footplate, or place objects on the footplate.
  • Page 9 08. Data Backup/Restoration/Combine : Back up InBody Test results to a USB Thumb Drive, or restore test results using a backup file on a USB Thumb Drive, or add test results using a backup file on a USB Thumb Drive to the InBody.
  • Page 10 : Select whether to have weight automatically weighed or manually entered before testing. 19. Adjust Weight : Adjust measured weight by a fixed value on the InBody. (Example: Workout clothes at the gym are approximately 0.2kg; most examinees are assumed to be wearing workout clothes, so the examiner may adjust the set value to -0.2kg.)
  • Page 11 2) Troubleshooting: See additional information on how to use the InBody. Refer to troubleshooting checklist when there are problems that occur during the InBody use/test. 01. Customer Service Information : See the customer service contact information saved under the Setup of the Administrator Menu ‘24.
  • Page 12: Connecting Printer, Thermal Printer, Stadiometer

    1) First turn off the InBody270 and then the printer. * You may experience connection issues in connecting the printer to the InBody270 if the InBody is turned on. 2) Plug the USB cable provided with the printer into the USB HOST port on the rear panel of the InBody270 and plug the other end of the USB cable into the printer.
  • Page 13 1) First turn off the InBody270 and then the blood pressure monitor. * You may experience connection issues in connecting the blood pressure monitor to the InBody270 if the InBody is turned on. 2) Plug the serial cable provided with the blood pressure monitor to the 9-pin serial port on the rear panel of the InBody270.
  • Page 14 1) First turn off the InBody270. * You may experience connection issues in connecting the barcode reader to the InBody270 if the InBody is turned on. 2) Plug the USB cable of the barcode reader into the USB HOST port on the rear panel of the InBody270.
  • Page 15: Maintenance

    F. Maintenance CAUTION NOTE DANGER Caution 참 조 주 의 참 고 주 의 Do not bend the handles of the hand electrodes or rotate them in the reverse direction beyond its limitation. • Do not extend the handles of the hand electrodes beyond its limitation. •...
  • Page 16: Inbody Test

    Children and people with limited mobility should be supervised or assisted when attempting to test on the InBody. • After an individual with any kind of contagious disease or infection tests on the InBody, use an InBody Tissue • to clean the equipment.
  • Page 17: Test Instructions

    * The screens vary according to the Settings of the Administrator Menu ‘02. Self Mode/Professional Mode’. Professional Mode: An examiner is present and guiding the examinee through the InBody Test. Self Mode: The examinee takes the InBody Test following the instructions that are displayed on screen. 2. Weight measurement begins.
  • Page 18 4. Maintain proper posture to take the test. Refer to ‘C. Test Posture’ for the proper posture. 5. The InBody Test begins. Professional Mode Self Mode 6. When the test is completed, the results will be shown on screen. Professional Mode Self Mode 270_manual_ENG_B_150608.indd 18...
  • Page 19: Test Posture

    C. Test Posture The examinee must maintain proper posture to have accurate test results. * The test will proceed when there is good electrical contact. Your arms must not touch the sides of your body. Keep your arms straight. The thighs should not touch. Hold the hand electrode so that the 4 fingers wrap the surface of the bottom hand electrode,...
  • Page 20: Transportation And Storage

    3. While holding the upper part lock button, fold down lower the upper part. Polyethylene foam cover Lock button 4. Put the InBody into the packing box. Place the packing pad over the equipment and tape up the packing box. Packing pads Polyethylene foam cover CAUTION...
  • Page 21: Frequently Asked Questions (Faq)

    Insert the power cord completely into the adapter. The problem may occur if you are using the power adapter that is not provide • by InBody. Always connect a power adapter (DC 12V, 3.4 A) provided by InBody. Power adapter Power cord 270_manual_ENG_B_150608.indd 21...
  • Page 22 If you cannot enter the Administrator Menu due to touchscreen problems, • please restart the InBody. The InBody stores the last touchscreen alignment and will automatically recall the previous touchscreen settings. The InBody can also recognize if its touchscreen alignment is off screen and will automatically take the user to the calibration screen after restarting.
  • Page 23: Regarding The Inbody Test

    • harmful to the body? that is not harmful to the body. The safety of the InBody has been tested and proven. The InBody products have been approved for medical use by the CE and all over the world. Many medical institutions around the world are actively using the InBody.
  • Page 24: Others

    V. Others * The InBody270 is manufactured according to the quality management procedure of InBody. InBody complies with the ISO9001 and ISO13485 which are international quality management systems. * This equipment satisfies the IEC60601-1 (EN60601-1), an international safety standard for electronic medical equipment. This equipment also satisfies the IEC60601-1-2 (EN60601-1-2), an international standard for electromagnetic conformity.
  • Page 25 2. Footplate Front sole electrode: The examinee makes contact with this electrode by stepping with the front part of their foot. ❶ Rear sole electrode: The examinee makes contact with this electrode by stepping with the heel of their foot. ❷...
  • Page 26 * ❷, ❸ ❹ Only compatible with a InBody Stadiometer, Blood Pressure Monitor, and SD400. * LAN port (10T Base): Used for connecting the InBody270 to Lookin’Body installed on a computer. ❸ * The InBody270 can be connected to Lookin’Body installed on a computer using one of the ports...
  • Page 27: Safety Information

    B. Safety Information Indicators 9-pin serial port (Female, RS-232C) LAN port (10T Base) USB port Safety Symbols Dangerous High Voltage Warning, Caution BF Type Equipment Adapter Power On Power Off Etc. Symbols European Conformity Serial number 0120 0120 0120 Manufacturer Direct current Authorized representative in the 0120...
  • Page 28 Follow instructions for use Suivez les instructions d’utilisation WARNING Electric shock hazard – do not dismantle. Dismantling will void the warranty. AVERTISSEMENT Risque de choc électrique - ne pas démonter. Le démontage annulera la garantie. DANGER Do not use this equipment with electrical medical device such as a pacemaker. Ne pas utiliser cet équipement avec des appareils médicaux électriques comme un stimulateur cardiaque.
  • Page 29: Classification

    Results Interpretation QR Code Impedance (Each segment and each frequency) Outputs Results and Interpretations (InBody Result Sheet for Body Composition Analysis (Total Body Water, Protein, Minerals, Body Fat Mass, Weight) • Muscle-Fat Analysis (Weight, Skeletal Muscle Mass, Body Fat Mass) Children) •...
  • Page 30 Provides audible indication for test in progress, test complete, and successfully saved settings changes. Database Test results can be saved if the member ID is utilized. The InBody can save up to 100,000 results. Test Mode Self Mode, Professional Mode...
  • Page 31: Emc Declaration

    E. EMC declaration The InBody270 is intended for use in the electromagnetic environment specified below. The customer or the user of the InBody270 should assure that it is used in such an environment. Electromagnetic emissions Emissions test Compliance Electromagnetic environment The InBody270 uses RF energy only for its internal function.
  • Page 32 Power frequency Power frequency magnetic fields should be at (50/60 Hz) 3 A/m 3 A/m levels characteristic of a typical location in a magnetic field typical commercial or hospital environment. IEC 61000-4-8 NOTE UT is the a.c. mains voltage prior to application of the test level. IEC 60601 Immunity test Compliance level...
  • Page 33 270_manual_ENG_B_150608.indd 33 2015. 6. 8. 18:45...
  • Page 34 270_manual_ENG_B_150608.indd 34 2015. 6. 8. 18:45...
  • Page 35 270_manual_ENG_B_150608.indd 35 2015. 6. 8. 18:45...
  • Page 36 ⓒ2015 InBody Co., Ltd. All rights reserved. BM-ENG-F9-B-150608 270_manual_ENG_B_150608.indd 1 2015. 6. 8. 18:45...
