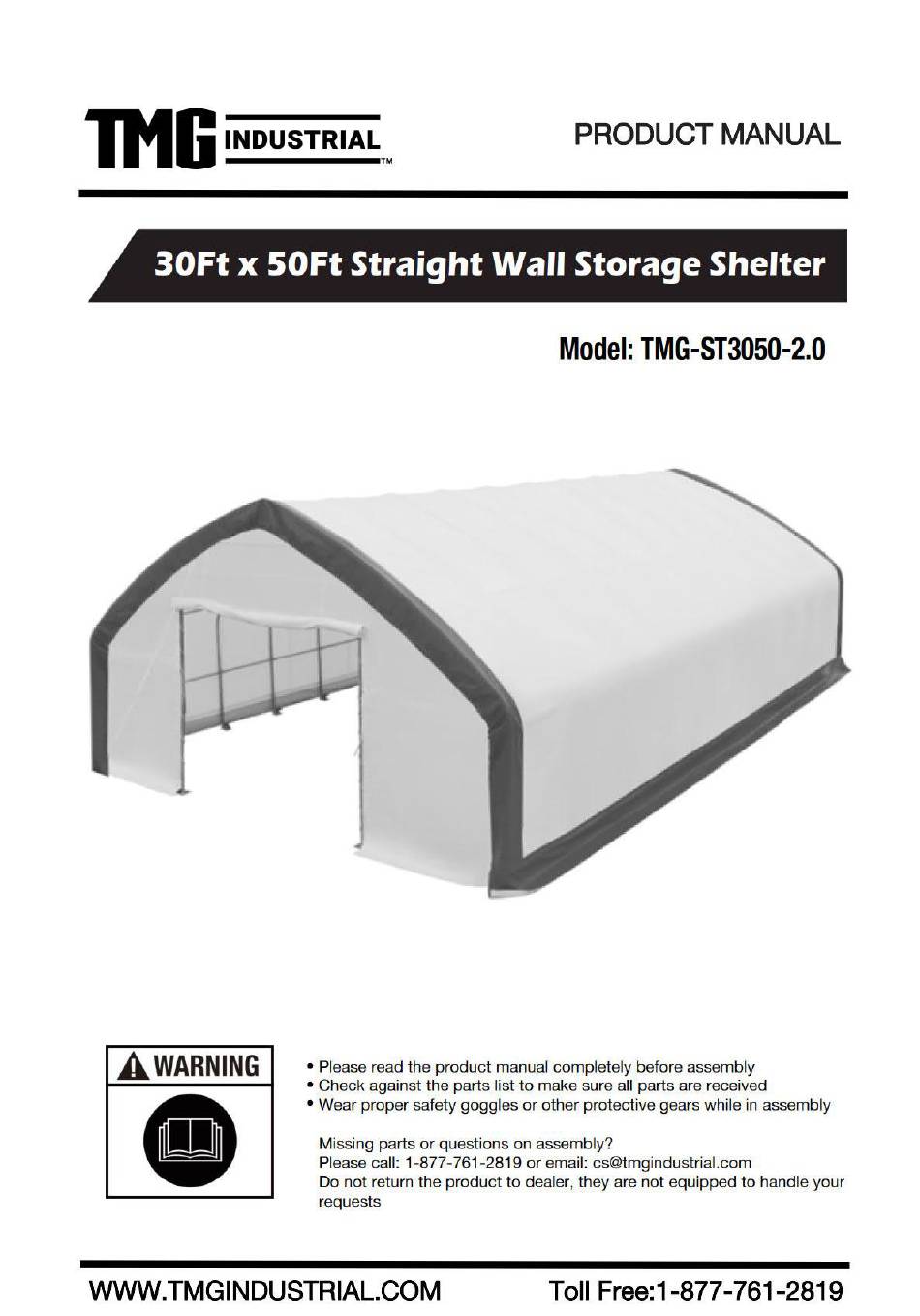

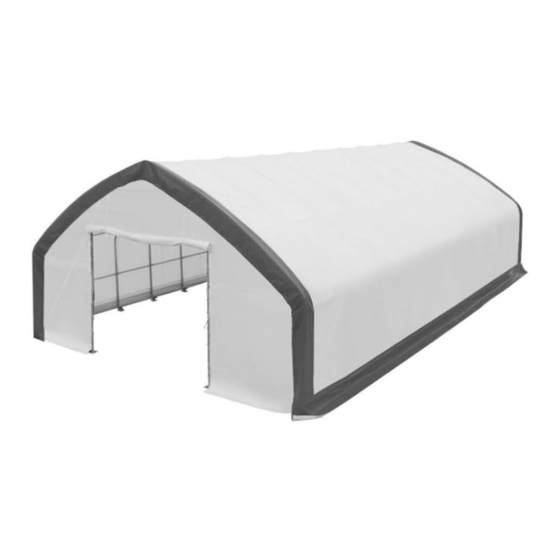

- Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
-
Page 2: Main Specifications
Main Specifications : - Assembly size : W9.14 x L15 x H4.8 (m) / 30 x 50 x 16 (ft) - Shoulder height : 2 m / 6.6 ft - Front and back roll up door : 4 x 3.89 (m) / 13.1 x 12.7 (ft) Prior to assembly Please read the instructions carefully before installation. - Page 3 TMG-ST3050-2.0 Part List Parts Graphical Description Length code φ58xL1712mm Peak arch tube Upper rafter tube φ58xL2870mm (middle truss) Upper rafter tube φ58xL2870mm (front and rear truss) Shoulder tube φ58xL1757mm (middle truss) Shoulder tube φ58xL1757mm (front and rear truss) φ58xL1465mm Sidewall tube Roof purlin φ42xL1440mm...
- Page 4 Middle truss baseplate W200xL200mm Ratchet Door frame lower tube φ58xL1970mm (front and rear truss) Door frame upper tube φ58xL1982mm (front and rear truss)) Door frame horizontal φ42xL2507mm tube (front and rear truss) φ42xL2810mm Ceiling cross bar Two wheel rope pulley W35xL130mm (pre-installed on 2A) One wheel rope pulley...
- Page 5 Half round head bolt M8x60mm Half round head bolt M8x70mm M8x70mm Hex bolt M10x30mm Hex bolt M10x50mm φ8x15m Nylon rope φ32mm Water plug Top cover Front and rear cover panel φ8x180m Braided rope Tie down straps (for #7A and front and W38xL800mm rear arches) Scratch resistant tape...
- Page 6 Mark the ground in the final building location with a line showing the positions of base plates, front, and rear doors. All lines should be drawn from center to center of all baseplate tubes. Diagonal line X must be equal to Y. ...
- Page 7 Step 2 : Assemble all trusses The building includes 11 trusses : (1) front truss, (1) rear truss, and (9) middle trusses. The front and the rear truss are to install with the fabric panel (#23). Parts used to install the front and rear truss in this step (refer to picture 2): (1x2) Peak arch tube (#1) (2x2) Upper rafter tube (#2A) (2x2) Shoulder tube (#3A)
- Page 8 Parts used to install (9) middle trusses in this step (refer to picture 3). (1x9) Peak arch tube (#1) (2x9) Upper rafter tube (#2) (2x9) Shoulder tube (#3) (2x9) Sidewall tube (#4) (1x9) Ceiling cross bar (#11) (2x9) Hex bolt (#19) (12x9) Half round head bolt (#18) Picture 3 W W W .
- Page 9 Lay down all (11) trusses on the ground as figure 4 when the assembly is all completed and before moving to next step, and then scratch resistant tape (#26) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
- Page 10 Step 3 : Put up the front (1 ) truss Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to make sure it is safe, and have enough manpower.
- Page 11 Step 4 : Put up the rest trusses Refer to Step 3 to put up the rest trusses, connect all 9 roof purlins (#5) with bolt (#17) and secure all bolts firmly on each span before going to next truss (picture 6).
- Page 12 Picture 6-2 W W W . T M G I N D U S T R I A L . C O M P 1 1 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 13 Step 5 : Install the diagonal bracing bars (#13) Connect diagonal bracing bar (#13) on the first and last span between the shoulder tube and sidewall tube (#3A and #4) with tube clamp (#13A), use bolt (#19A) (picture 7). ...
- Page 14 Step 6 : Install the remaining parts on the front and rear truss (picture 8) Parts used in this step : (2x2) Door frame upper tube (#9) (2x2) Door frame lower tube (#8) (2x2) Door frame horizontal tube (#10) (2x2) Bottom tension bar (#12) (8x2) Half round head bolt (#18) (4x2) Hex bolt (#19)
- Page 15 Step 7 : Install front and rear cover panel The door cover must be zipped. Use rope (#24) to lift up the front and rear cover (#23) from the center grommet and tie it firm to the truss tube and spread toward both sides through each grommet along the tube.
- Page 16 Picture 10 Step 8 : Install the top cover (#22) Do not install the cover during windy weather ! Unpack the top cover and place it along one of the long sides of the structure. Use 3 to 5 braided rope (#24) to pull the top cover (#22) the top of the structure, 2 or 3 people standing inside on ladders to push upwards will help to move the cover smooth without any damage (picture 11).
- Page 17 Step 9 : Stretch and tighten top cover The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed. ...
- Page 18 Step 10 : Tension the cover on the structure from both sides (picture 13) Insert tension tubes (#14) slowly into the bottom groove pocket on both long sides. Add the water plug (#21) on the first tension tube to avoid tearing the fabric and add one to the end of last tube as well.
- Page 19 Step 11 : Install ratchet straps (Picture 14) Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the groove pocket where it aligns with ratchet (#7A), and use tie down straps (#25) to pull tension tube (#14) toward the ratchet and tie it firmly there.
- Page 20 After the Installation Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.
