PR ODUC T USE

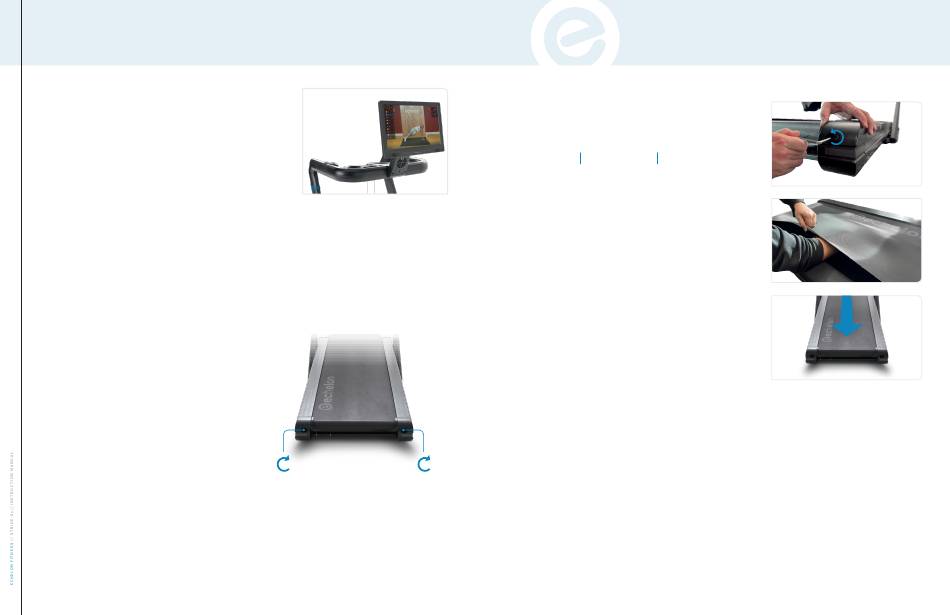

TABLET ROTATION & TILT
1. Rotating
a. Hold both sides of the tablet.
b. Gently rotate the tablet either left or right 180°.
2. Tiliting
a. Hold both sides of the tablet.
b. Gently tilt forward or back towards the console to adjust for
different user heights. The maximum tilt angle is around 30°.
BELT ADJUSTMENT
1. Swerving Right
a. Remove the safety key and turn the power OFF.
b. Turn the right adjusting bolt 1/4 clockwise. Re-insert the
safety key and turn the power ON.
c. Run the treadmill (3–4 mph/6–8 kph) and observe.
d. Repeat above steps a–c until belt is centered.
2. Swerving Left
a. Remove the safety key and turn the power OFF.
b. Turn the left adjusting bolt 1/4 clockwise. Re-insert the safety
key and turn the power ON.
c. Run the treadmill (3–4 mph/6–8 kph) and observe.
d. Repeat above steps a–c until belt is centered.
3. Tightening Belt
a. Remove the safety key and turn the power OFF.
b. Turn the left/right adjusting bolts 1/4 turn clockwise. Re-insert
the safety key and turn the power ON.
c. Run the treadmill (3–4 mph/6–8 kph) and stand on the belt to
confirm the tightness.
d. Repeat above steps a–c until the belt is moderately tight.
14
ECHELON FITNE S S | S TRIDE- 8 S
Left Adjusting Bolt Right Adjusting Bolt
BELT LUBRICATION
The Echelon Stride-8s requires lubrication as a part of routine
maintenance according to the recommended schedule below.
Light Usage Medium Usage Heavy Usage
Once Every 60 Once Every 45 Once Every 30
Days Days Days
• Keeping the deck lubricated at the recommended intervals
above ensures the longest life possible for your treadmill.
• Failure to lubricate the deck at regular intervals may void
the warranty.
• It is recommended every other month to reach between the
belt and deck to verify there is lubrication present every
other month.
1. Power off the treadmill and unplug the power cord.
2. Using Allen Wrench (B), loosen rear adjusting bolts with 5–10
counter-clockwise turns.
3. Lift the running belt and apply silicone oil in a zigzag pattern
across the entire running deck surface. Use 1/2 bottle of
silicone oil. DO NOT apply the silicone oil on top of the
running belt.
4. Lay the running belt flat and tighten the rear adjusting bolts
clockwise the same number of times loosened from step 2.
5. After the lubricant is applied, plug in the power cord, insert
the safety key, and turn power the treadmill on.
6. Stay off the treadmill and press START. Allow the belt to run
at 3 MPH for 3 minutes to spread the silicone oil.
7. Walk on the treadmill at a comfortable speed for an
additional 3 minutes to sufficiently spread the silicone oil and
check the running belt for proper tightness and alignment.
8. Once the belt is centered and properly tightened, stop
the belt. Wipe away any excess silicone oil with a damp
microfiber cloth.
