TR E A DMILL A S SEMBLY

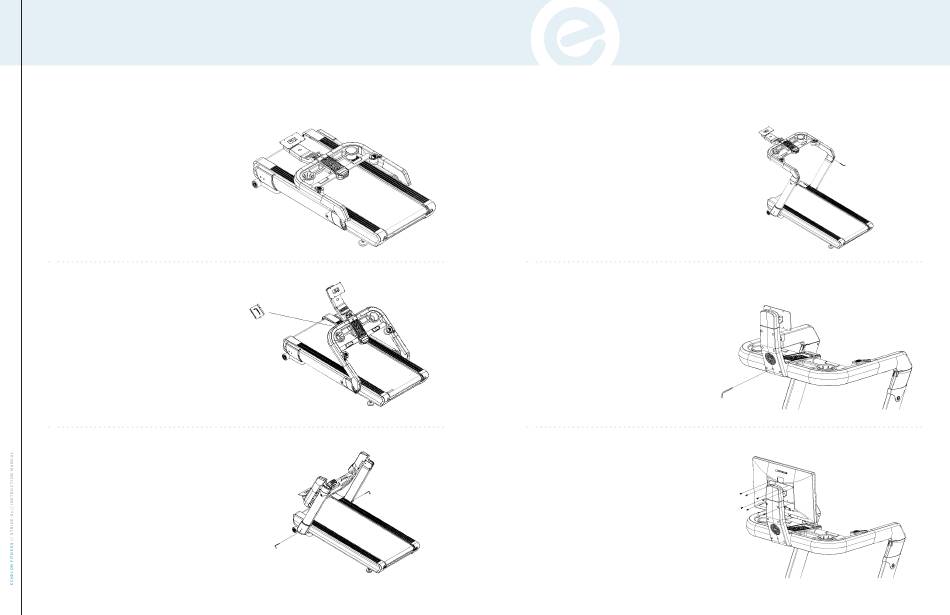

TREADMILL ASSEMBLY
1
STEP
Assembly should take place on a soft
surface, such as a carpet or rug, or
with the cardboard box opened to
protect the floor.
Remove equipment and screen from box.
Place it flat on the floor.
2
STEP
Lift up the console frame. Under the "Wireless Charging" pad,
remove from the box in the "Tool Holder Tray" and locate the
L-Shape Wrench.
3
STEP
Note: These next two steps
will require two people.
Unfold and lift the console support uprights into position.
Attach both sides to the base by tightening the screws
inside the lower upright with the L-Shape Wrench.
10
ECHELON FITNE S S | S TRIDE- 8 S
4
STEP
Unfold the console frame into place by attaching the frame
to the secured uprights with screws inside the upper upright
with the L-Shape Wrench.
5
STEP
Unfold the console neck into place by attaching the neck
with the frame and tightening the screws inside the neck
with the L-Shape Wrench. After setup, return the tool back
to the "Tool Holder Tray" and cover it for safe keeping.
6
STEP
Remove the screen from the packaging and remove both back plastic
covers on the tablet by first removing the bottom cover on the tablet,
then removing the top cover to expose the mounting holes. Remove
the (8) screws from the back of the screen with a Philips Head
Screwdriver. Attach the screen to the mount plate on the console neck
by tightening the previously removed (8) screws. Insert the power
cable and the 9 pin cable to the DC IN and UART ports. Make sure to
tighten the screws on the RS232/UART port evenly to ensure this
plug does not fall out. This will conclude physical setup!
INS TRUC TION M A NUA L
11
