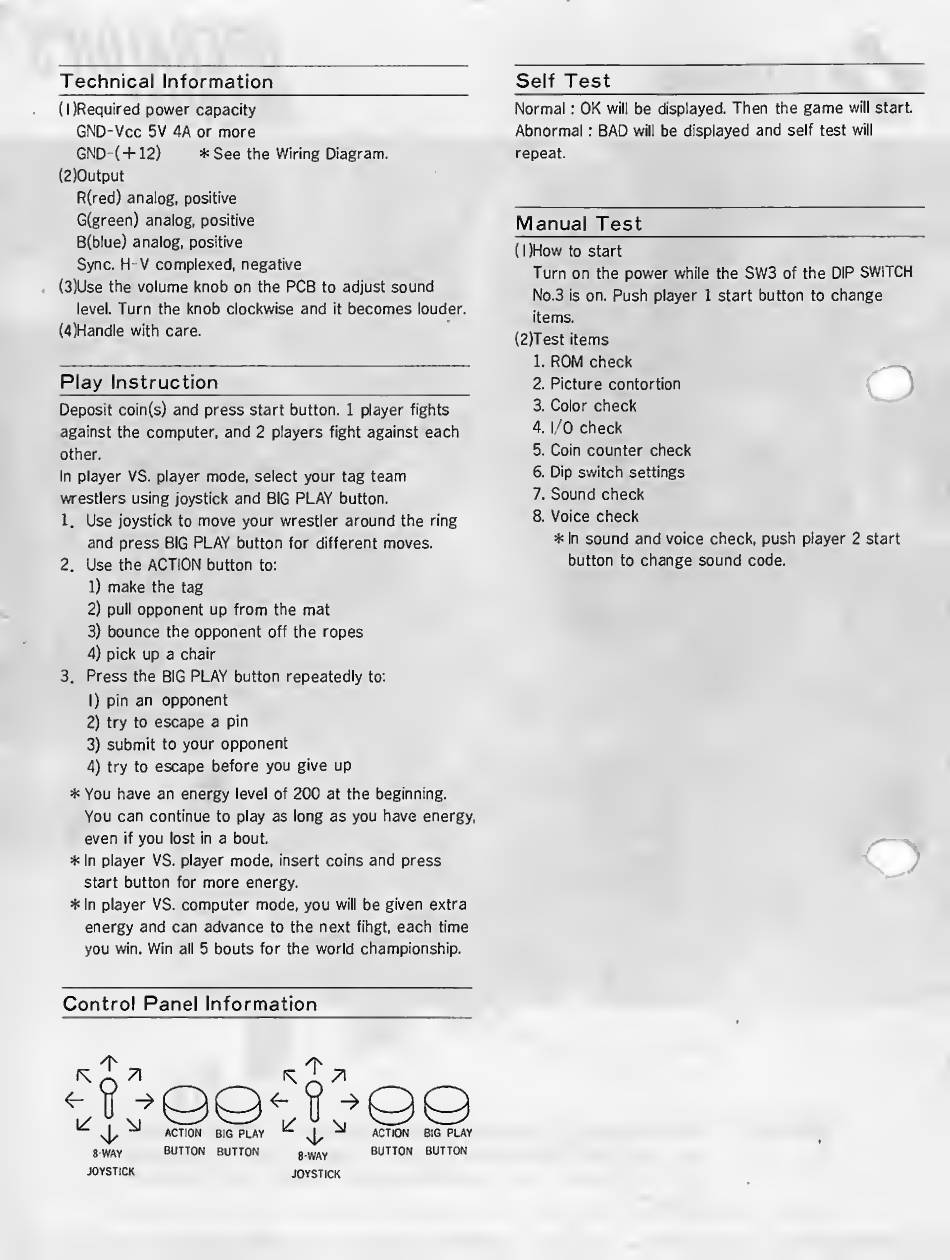

Konami THE MAIN EVENT Operator's Manual page 2

Technical Information
(1)
Required power
capacity
GND-Vcc
5V 4A
or
more
GND
(
+
12)
*
See the Wiring Diagram.
(2)
Output
R(red) analog, positive
G(green) analog,
positive
B(blue) analog,
positive
Sync.
H
V
complexed, negative
{3)Use the
volume knob on
the
PCB
to adjust
sound
level.
Turn
the
knob
clockwise
and
it
becomes
louder.
(4)Handle with care.
Play
Instruction
Deposit
coin(s)
and
press
start button.
1
player
tights
against the computer,
and 2
players fight
against
each
other.
In
player VS. player
mode,
select
your tag
team
wrestlers using
joystick
and
BIG
PLAY
button.
1.
Use
joystick to
move
your
wrestler
around
the
ring
and
press BIG
PLAY
button
for different
moves.
2.
Use
the
ACTION
button
to:
1)
make
the tag
2)
pull
opponent up from
the
mat
3)
bounce
the
opponent
off the
ropes
4)
pick up a chair
3.
Press
the BIG
PLAY
button repeatedly
to:
1)
pin
an opponent
2) try to
escape
a
pin
3)
submit
to
your
opponent
4) try to
escape
before you
give
up
* You have an energy
level of
200
at
the beginning.
You can continue
to play as long
as you have
energy,
even
if
you
lost
in
a bout.
*
In
player VS. player
mode,
insert coins
and press
start
button
for
more
energy.
*
In
player VS.
computer mode,
you
will
be given extra
energy and can advance
to
the next
fihgt,
each
time
you
win.
Win
all
5
bouts for the
world championship.
Self
Test
Normal
:
OK
will
be
displayed.
Then
the
game
will
start.
Abnormal
:
BAD
will
be displayed
and
self
test
will
repeat.
Manual Test
(
I
)How
to start
Turn on
the
power
while the
SW3
of
the DIP
SWITCH
No.3
is
on.
Push
player
1
start button
to
change
items.
(2)Test items
1.
ROM
check
2.
Picture contortion
3.
Color
check
4.
I/O
check
5.
Coin counter check
6.
Dip switch settings
7.
Sound check
8.
Voice check
*
In
sound and voice check, push
player
2
start
button
to
change sound
code.
Control Panel Information
\|/
ACTION
BIG
PLAY
^
^
8-WAY
BUTTON
BUTTON
8
.
WAY
JOYSTICK
0 0
ACTION BIG PLAY
BUTTON BUTTON
JOYSTICK
