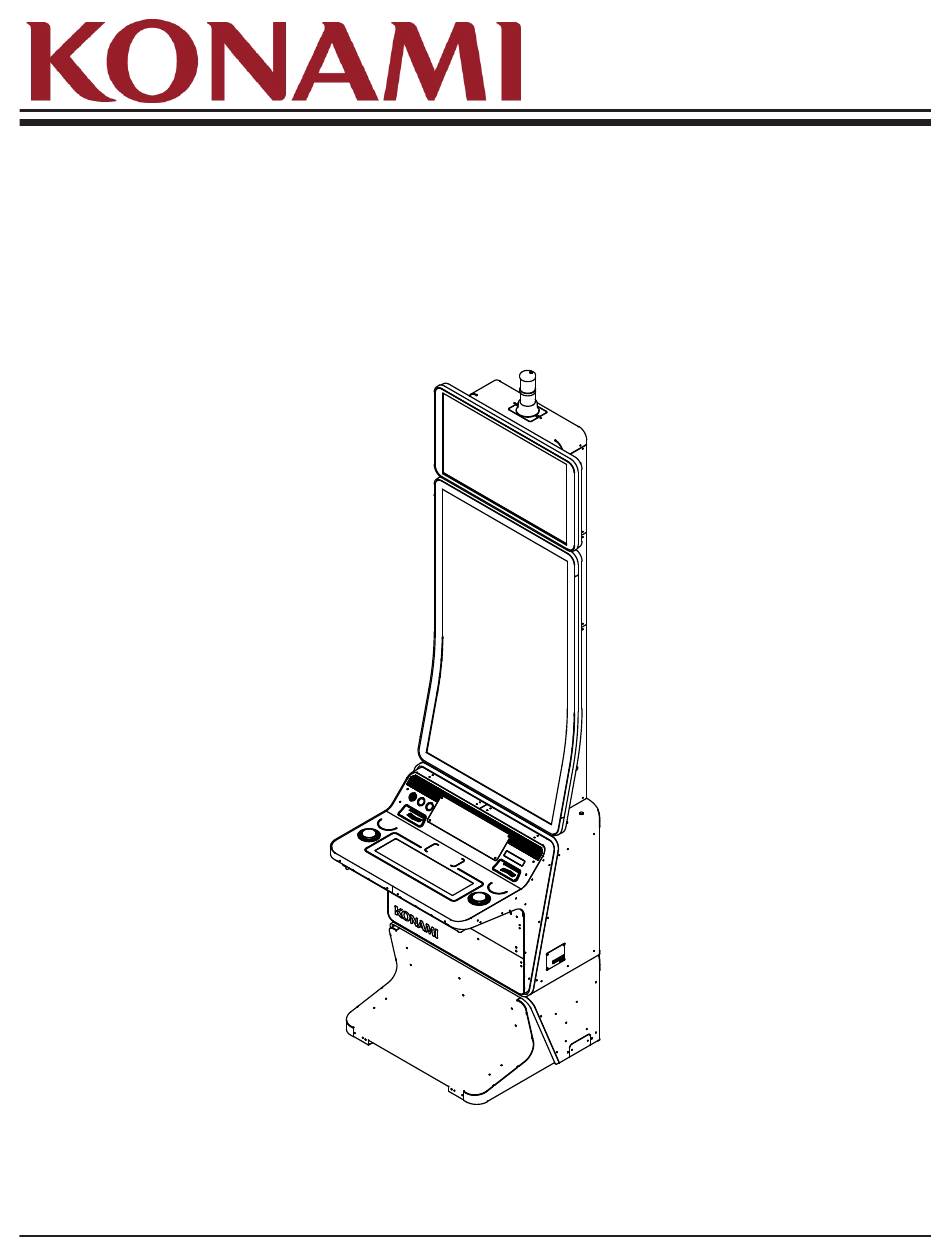

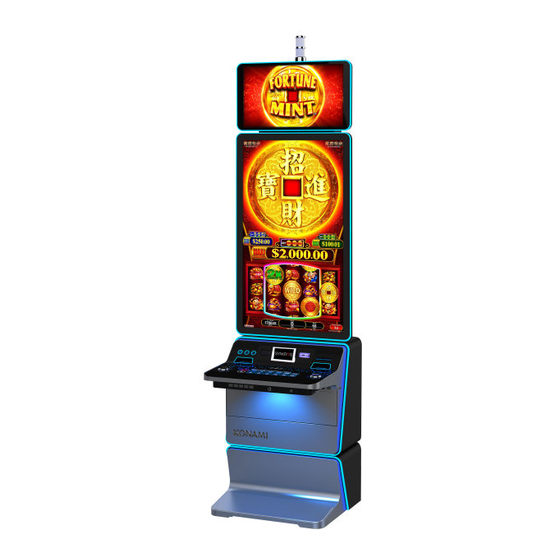

KGP-1
Operators Manual
Konami Gaming, Inc.
585 Konami Circle
Las Vegas, NV 89119-3720
Phone: (866) KGI-SLOT
P/N 810498 Rev C
Fax:
(702) 361-9020
Date of Publication: 1/21/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KGP-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Konami KGP-1

  • Page 1 KGP-1 Operators Manual Konami Gaming, Inc. 585 Konami Circle Las Vegas, NV 89119-3720 Phone: (866) KGI-SLOT P/N 810498 Rev C Fax: (702) 361-9020 Date of Publication: 1/21/2021...
  • Page 2 (Original Instructions) DOCUMENT REVISION HISTORY REVISION DESCRIPTION OF CHANGE DATE APPROVED 8278 RELEASE TO PRODUCTION 5-1-2020 8480 ADDED DIMENSION 49 FLAT INFORMATION 9-15-2020 8577 ADD DUAL LATCH TO DIMENSION MANUALS 1-20-2021 P/N 810498 Rev C History-1 © 2021 Konami Gaming Inc.
  • Page 3: Table Of Contents

    SET-UP SERVICE Button ����������������������������������������������� 2-19 OVERVIEW �������������������������������������������������������������������� 2-1 CASHOUT Button ��������������������������������������������� 2-19 KGP-1 MODELS ������������������������������������������������������������ 2-2 SELECT NUMBER OF LINES Buttons ������������ 2-19 Dimension 49J ������������������������������������������������������ 2-2 SELECT BET X PER LINE Buttons ������������������ 2-19 Dimension 49J With Topper ������������������������������� 2-3 BET MAX Button �����������������������������������������������...
  • Page 4 ELECTRICAL COMPONENTS ������������������������������������� 6-4 P/N 331620, ASSY, MAIN MACHINE, DUAL 27 ��������� 3-18 Fuses �������������������������������������������������������������������� 6-4 P/N 331601 ASSY, CABINET, MAIN, SECTION A VIEW PCBs ��������������������������������������������������������������������� 6-4 ��������������������������������������������������������������������������������������� 3-19 Board Components �������������������������������������������� 6-4 P/N 810498 Rev C toc-ii © 2021 Konami Gaming Inc�...
  • Page 5 KGP-1 TABLE OF CONTENTS (Original Instructions) KXP BACKPLANE - TOP VIEW ������������������������������������ 6-5 KXP BACKPLANE - BOTTOM VIEW ��������������������������� 6-6 P/N 810498 Rev C toc-iii © 2021 Konami Gaming Inc�...
  • Page 6: Customer Support

    RMA number� This manual may not be transmitted or copied for public or private use without the express consent of Konami Gaming, Inc� • Once a replacement part is issued, the Operator has 30 days to return the old part without being charged�...
  • Page 7: Radio Interference

    OVERVIEW This manual provides information required for technicians and Konami Gaming service personnel to properly set up, operate, and maintain the Konami Gaming, Inc� KGP-1 machine� This manual contains the following sections: Section 1 - Introduction Section 1 contains general machine information, contact information, a description of manual content, and a general list of features�...
  • Page 8: Section 4 - Troubleshooting

    The term “machine” is used throughout this manual and is defined as a physical piece of electromechanical equipment designed and manufactured by Konami Gaming, Inc� This machine is for sale and use only as an amusement apparatus in jurisdictions permitting such machines�...
  • Page 9: Set-Up

    • Candle (Signal Tower) Installation • Drop Box Door Switch Connection • Player Tracking Panel • Cabinet Installation • Opening and Closing Doors • Changing Locks • Startup • Player/Operator Interface P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 10: Kgp-1 Models

    SECTION 2 - SET UP KGP-1 (Original Instructions) KGP-1 MODELS Here are the current cabinet models for KGP-1: Dimension 49J (net weight: 370 lb / 168 kg�) 28.00 [71.12 cm] 6.62 [16.81 cm] 82.10 [208.5 cm] 31.82 [80.82 cm] 13.00 [33.02 cm]...
  • Page 11: Dimension 49J With Topper

    (net weight: 410 lb� / 186 kg�) 28.00 [71.12 cm] 6.62 [16.81 cm] 97.22 [246.94 cm] 31.82 [80.82 cm] 13.00 [33.02 cm] 27.00 68.58 cm 15.88 [40.33 cm] 24.95 [63.37 cm] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 12: Dimension 49J With Topper (No Stand)

    Dimension 49J With Topper (No Stand) (peso neto: 372 lb / 168 kg�) 28.00 [71.12 cm] 6.62 [16.8 cm] 84.22 [213.9 cm] 18.82 [47.8 cm] 15.88 27.00 [40.3 cm] [68.6 cm] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 13: Dimension 49

    (Original Instructions) Dimension 49 (net weight: 392 lb / 178 kg�) 28.00 [71.1 cm] 82.10 [208.5 cm] 31.82 [80.82 cm] 13.00 [33 cm] 27.00 15.88 [68.6 cm] [40.3 cm] 24.95 [63.37 cm] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 14: Dimension 49 With Topper

    Dimension 49 With Topper (net weight: 432 lb / 196 kg�) 28.00 [71.1 cm] 97.22 [246.9 cm] 31.82 [80.82 cm] 13.00 [33 cm] 15.88 27.00 [40.3 cm] [68.6 cm] 24.95 [63.37 cm] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 15: Dimension 49 With Topper (No Stand)

    SECTION 2 - SET UP KGP-1 (Original Instructions) Dimension 49 With Topper (No Stand) (net weight: 372 lb / 168 kg�) 28.00 [71.1] 84.22 [213.9] 18.82 [47.8] 15.88 27.00 [40.3] [68.6] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 16: Dimension 27

    (net weight: 356 lb / 161 kg�) 28.00 [71.12 cm] 6.62 [16.81 cm] 66.82 [169.72 cm] 31.82 [80.82 cm] 13.00 [33.02 cm] 15.88 [40.34 cm] 27.00 [68.58 cm] 24.95 [63.37 cm] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 17: Dimension 27 With Small Topper

    (net weight: 386 lb / 175 kg�) 28.00 [71.12 cm] 6.62 [16.81 cm] 79.38 [201.63 cm] 31.82 [80.82 cm] 13.00 [33.02 cm] 15.88 27.00 [40.34 cm] [68.58 cm] 24.95 [63.37 cm] P/N 810498 Rev C © 2021 Konami Gaming Inc.
  • Page 18: Dimension 27 With Large Topper

    (net weight: 396 lb / 180 kg�) 28.00 [71.12 cm] 6.62 [16.81 cm] 82.02 [208.3 cm] 31.82 [80.8cm] 13.00 [33.02 cm] 27.00 15.88 [40.33 cm] [68.6 cm] 24.95 [63.37 cm] P/N 810498 Rev C 2-10 © 2021 Konami Gaming Inc.
  • Page 19: Dimension 27 With Topper (No Stand)

    SECTION 2 - SET UP KGP-1 (Original Instructions) Dimension 27 With Topper (No Stand) (net weight: 336 lb / 152�4 kg�) 28.00 [71.1] 6.62 [16.8] 69.02 [175.3] 18.82 [47.8] 15.88 27.00 [40.3] [68.6] P/N 810498 Rev C 2-11 © 2021 Konami Gaming Inc.
  • Page 20: Environmental Specifications

    UNPACKING AND INSPECTING Unpack and inspect the machine before you turn on the power� If the machine has been damaged during shipping, contact your Konami Distributor, or Konami Customer Service Representative, depending on warranty and sales contract terms� Mounted candle For Return Merchandise Authorization (RMA) information, see Section 1 of this manual�...
  • Page 21: Candle Pin Assignment

    YELLOW +24 V located on the Backplane Board in the Logic Unit Box and through settings in the Konami Maintenance System (KMS)� Connections DROP BOX SWITCH CONNECTION Under typical conditions, CNB35/COM 1 on the backplane...
  • Page 22: Player Tracking Panel

    Unit is equipped with two input and two output fiber optic 1� To open, insert the key into the Key Cylinder and turn receptacles. The SAS unit is also equipped with a serial input/ 90 degrees clockwise� P/N 810498 Rev C 2-14 © 2021 Konami Gaming Inc.
  • Page 23: Logic Unit Door

    1� To open, insert the key into the Key Cylinder and turn it 1.28 90 degrees clockwise� ALL DIMENSIONS ARE IN INCHES Lock Hardware The following shows the standard lock hardware� Unlocking the Logic Unit Door P/N 810498 Rev C 2-15 © 2021 Konami Gaming Inc.
  • Page 24: Lock Cams

    2� Remove 3/4-28 UNF nut from lock� 3� Remove Key Cylinder� 4� Install new Key Cylinder� 5� Secure with 3/4-28 UNF nut� 6� Install cam and 9/32-28 UNF nut on shaft� Belly Door Lock Replacement P/N 810498 Rev C 2-16 © 2021 Konami Gaming Inc.
