Summary of Contents for Konami SOUND VOLTEX BOOTH

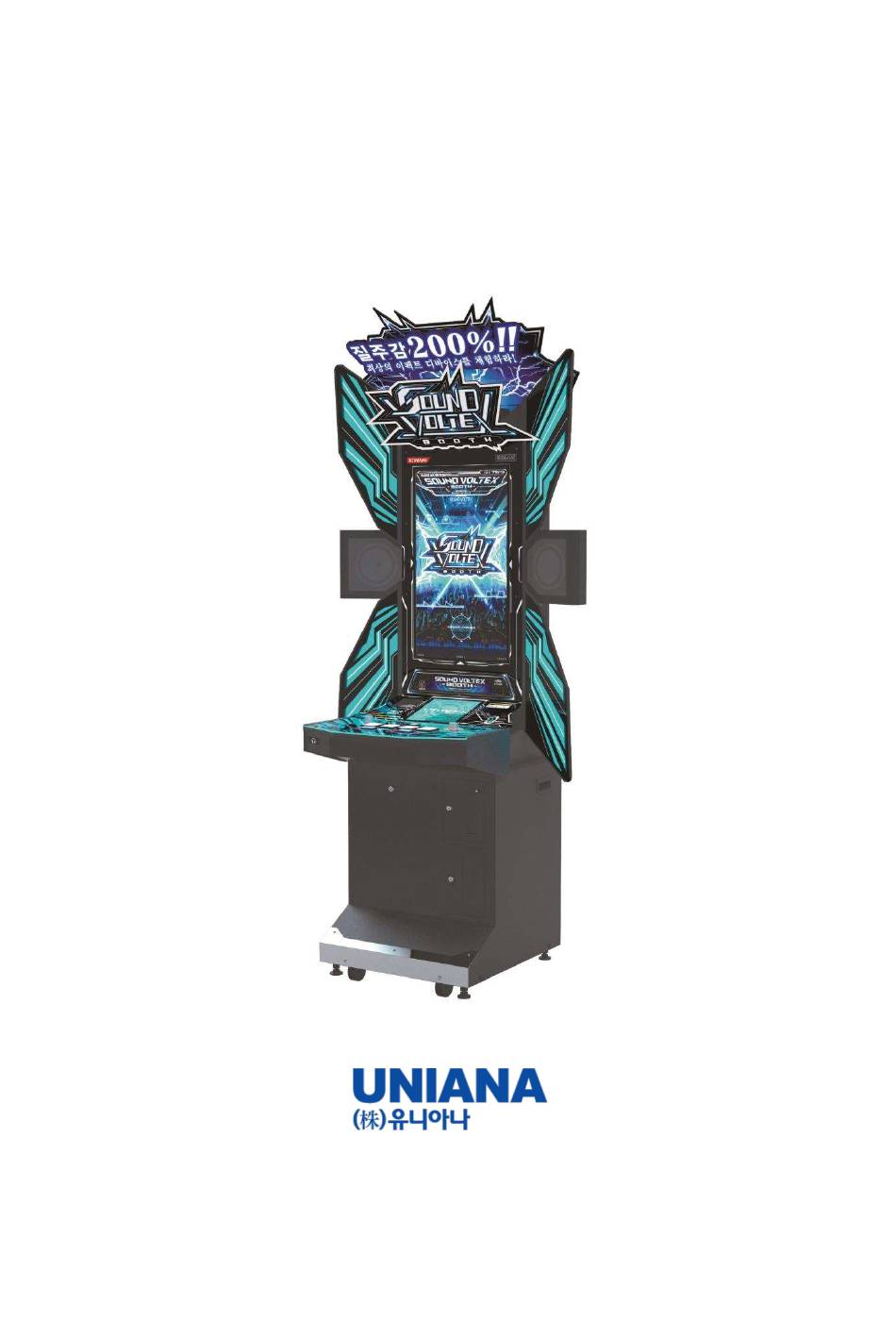

- Page 1 SOUND VOLTEX BOOTH User Guide...
- Page 2 ■ Enjoy a 200% sense of speed with the best device! SOUND VOLTEX BOOTH!! - Genre: Music Simulation Game - Type: Video Game - Number of Plkaters: 1 Player - Target Age: All users - e-AMUSEMENT ：대응 - e-AMUSEMENT PASS ： Supported ・...
- Page 3 ■ Names of Parts Back Door (Top) Power Outlet Back Door (Bottom) Power Cord Air Vents LAN Network Cable Air Vent LAN Connector...
- Page 4 Illuminated Wing Top (L) Speaker (L) Monitor Panel Illuminated Lower Wing (L) Title Panel 10 KEY Keypad IC PASS Card Reader Woofer Speaker Panel Coin Slot Front Door (PC Access) Wheel Height Adjustment Leveler Coin Box Coin Outlet Service Door Coin Eject Button Control Panel Illuminated Lower Wing (R)
- Page 5 ■ How to Play...
- Page 6 1. Connect e-AMUSEMENT PASS. Touch the e-AMUSEMENT PASS to the control panel reader. When you insert a coin, the game starts automatically. If you are not using an e-AMUSEMENT PASS, skip to step 3. Connected! 2. Enter your password. Touch the screen to enter your password. ※...
- Page 7 In Store - Play together in store. (Local Battle) This is a mode where 2 game cabinets (up to 4) can be linked to Konami’s e-AMUSEMENT system within the game center This is a mode where you compete in-game. If you select a local battle, the entry screen for the game room will appear.
- Page 8 5. Select the song you wish to play. On the “MUSIC SELECT” screen, select the song you wish to play and the difficulty level. ※ If there are less than 4 opponents through the in-game Friend Play, you can play online. Another user will be your opponent.
- Page 9 6. Start the game. Operate the controls in time with the music. The evaluation (rating) changes depending on timing, the Effective Rate gauge increases or decreases depending on accuracy.
- Page 10 ■ Regarding the score If you accurately hit the buttons with timing of the flying device, your score is increased. The Effective Rate (gauge) increases or decreased based on accuracy with the judgment line at the bottom. If the Effective Rate is over 70% you can proceed to the next song. 7.
- Page 11 ■ e-AMUSEMENT PASS: How to play games using NT PASS. This amusement machine can only be played when connected to the e-AMUSEMENT network. You can check your collect gameplay data by using your [e-AMUSEMENT PASS]. (This is a function exclusive to the e-AMUSEMENT system.) *You can play even if you do not have an e-AMUSEMENT PASS but you cannot save gameplay data.
- Page 12 ■ Main Menu Screen How to Operate I/O CHECK Checking input/output devices SCREEN CHECK Check screen size, etc. COLOR CHECK Checking the color display on the screen. ROM CHECK Checking data contents on the SSD IC CARD CHECK Check operation of IC PASS reader. Check status of e-AMUSEMENT PASS SOUND OPTIONS Settings related to sound.
- Page 13 ■ I/O Check INPUT CHECK Check control inputs. LAMP CHECK Check the lamp lighting MECHANISM CHECK Verify coin mech functions. ■ I/O Check → INPUT Check ON / OFF Displays ON/OFF in response to input from control system. · ON ----- Entered ·...
- Page 14 ■ I/O Check → LAMP Check When selected, ON is displayed and all lamps turn on simultaneously When selected, it is displayed as ON and the LED lights power on starting with RED. AUTO · If the light turns on, all lamps turn on. Afterwards, automatic lighting repeats again.
- Page 15 ■ I/O check → MECHANISM check COIN BLOCKER Press the test button to see if it changes to CLOSE / OPEN. (If it is impossible to set to CLOSE / OPEN) · CLOSE : Coin blocker is working. ( Coins are rejected ) ·...
- Page 16 ■ COLOR Check Adjust Screen Brightness BRIGHTNESS · Brighten the screen: Press the “D” button. · Darken the screen: Press the “C” button. Adjust the screen saturation CONTRAST · Increase the saturation: Press the “D” button. · Decrease the saturation: Press the “C” button. At the same time, adjust COLORLESS so the range becomes black.
- Page 17 ■ IC CARD check e-AMUSEMENT PASS When reached it is displayed OK[1] ----- e-AMUSEMENT PASS has been recognized as OK[*] e-AMUSEMENT PASS e-AMUSEMENT PASS was not recognized. Marked as BAD. e-AMUSEMENT PASS e-AMUSEMENT PASS not in reach. Check network connection. Displayed As --- ■...
-
Page 18: Sound Volume
SOUND VOLUME IN Set sound during game demo mode to [ON / OFF] ATTRACT MODE · 100% : always ON · 0% : always OFF SOUND SCALE Check to see if the “Do, Re, Mi, Do” sounds alternate between the left and CHECK right speakers. -
Page 19: Factory Settings
■ GAME OPTIONS SHOP CLOSE SETTING Choose whether to set a closing time. · OFF ----- Do NOT set a closing time. · ON ----- Set a closing time. SHOP CLOSE TIME Set the store’s closing time (In 5 minute increments) ·... - Page 20 FREE PLAY Set up free play · ON: Play for free · OFF: Pay to play COIN SLOT Set the number of credits for your coins by referring to the table below. 1 COIN 1CREDIT~10 COINS 1CREDIT START Set the number of credits required to start the game. 1 CREDIT TO START~10 CREDIT TO START FACTORY Return the settings for this cabinet to the factory settings.
-
Page 21: Domain Name
· Return to factory settings. Press the START or SERVICE button. ■ NETWORK OPTIONS → NETWORK CHECK Displays the communication status from the game to the e-AMUSEMENT server. GAME → ·GAME : Main Cabinet (Main Body) ROUTER → ·ROUTER : In store VPN Router. CENTER →... -
Page 22: Clear All Data
■ NETWORK OPTIONS → SHOP NAME 1. Input, operation menu Selects the item of the character you are entering. 2. Text input Select the character, press the START button to decide ■ BOOKKEEPING BOOKKEEPING Set coin counting ON/OFF ·ON ---- Coin counting. ·OFF -- Do not count coins. - Page 23 Or press the SERVICE button.
- Page 24 ■ CLOCK SET TIME Set the current time (Hour, Minute, Second) settings. · Select hours, minutes, seconds: Press C/D button or Test button. · When proceeding: Press the A button or the service button. · When turning: Press the B button. ※...
- Page 25 ■ SYSTEM INFORMATION SOFT ID CODE Display game software version. BOOTSTRAP Displays version of the startup software. AVS2 Displays version of the system library. SYSTEM ID Display system ID HARDWARE ID Display hardware ID ACCOUNT KEY Display account key. LICENSE KEY Show license key.
