5.1.10 - HDMI CEC Header
If it was selected and configured in the build, the chip will be populated. CEC functionality
will work with an HDMI adapter. Please see series pages for additional information.

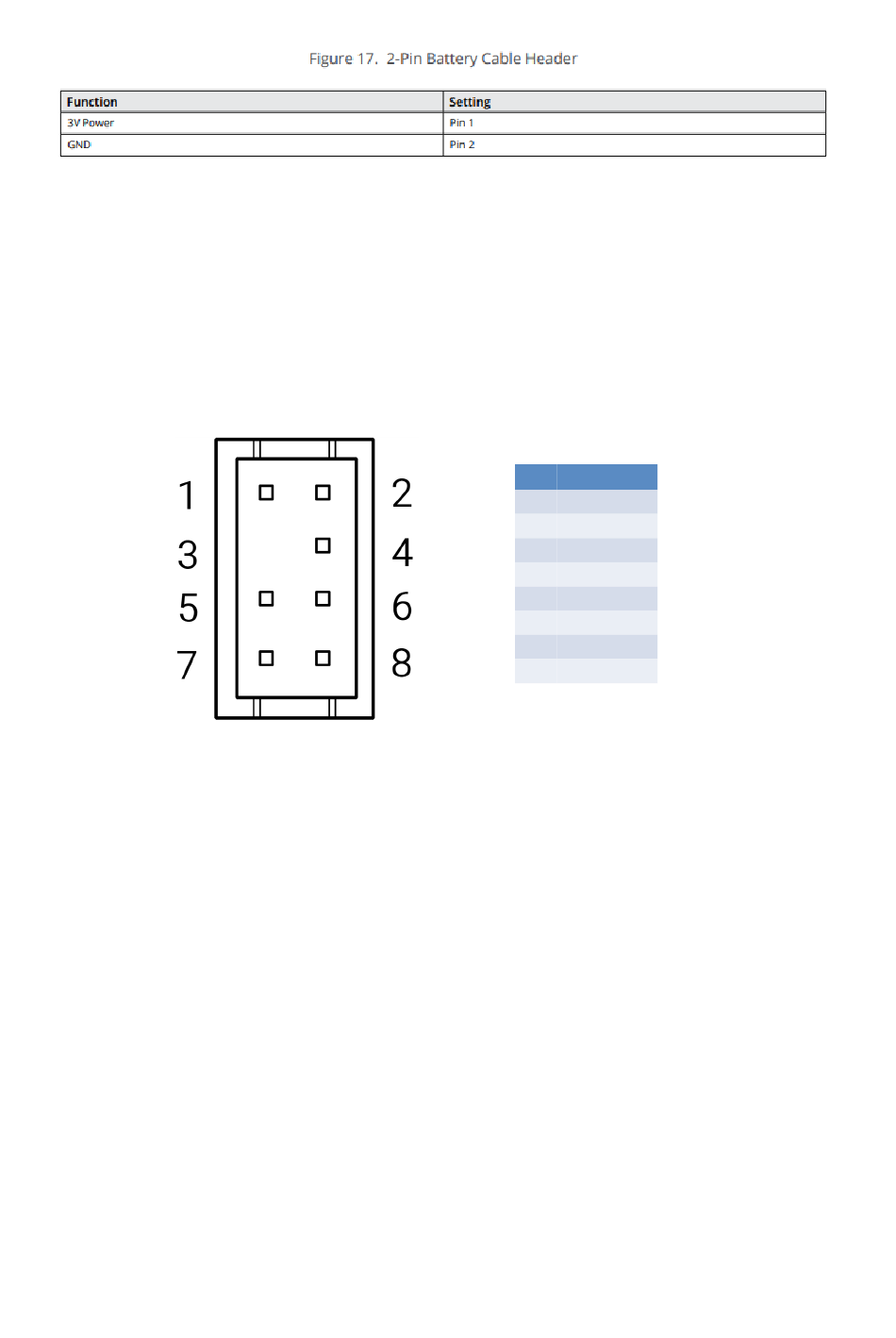

Figure 18. HDMI CEC Header
Function
Pin
DP2_CEC
1
DP1_CEC
2
3
Key
4
5MBus DATA
3.3V
5
6
5MBus Clock
Power BTN
7
GND
8
18
