5.1.7 - Mini-PCI Express Expansion Slots

Standard pin-out supports half-height PCIe/USB and full-height PCIe/USB/mSATA signal.

5.1.8 - Jumpers and Headers

5.1.8.1 - Jumper Set Up

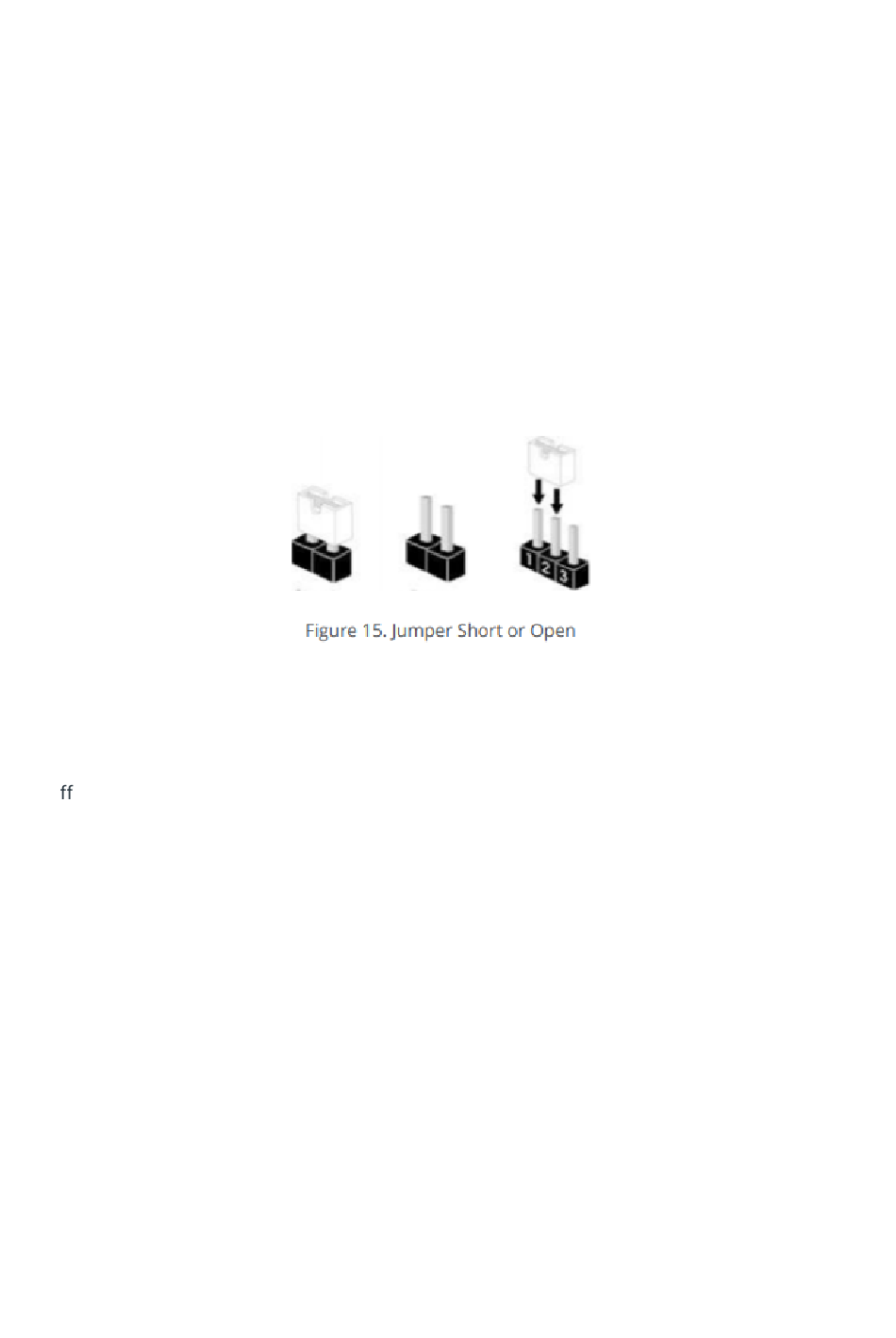

The following illustration shows how to use jumpers.
"Short" pins together by placing the jumper shunt on pins. Pins not capped with jumpers are
"open". With the illustrated 3-pin jumper, the shunt shorts pins 1 and 2. Check the
corresponding header pin attributes to see what functionality is supported by shorting
di erent pin pairs.
