5.1.2 - Memory & Storage
System
CL200G-10
CL210G-10
System
CL200G-10
CL210G-10
Memory and storage are soldered on the motherboard for the CL200 Series computers.
Memory for both systems are LPDDR4 dual channel RAM. Both systems use industrial-grade
eMMC onboard storage. Manufacturers and part numbers are subject to change, so please
check the system pages for updates. Additional storage is available using the uSD card
Revision 3.01 (SDXC) supporting up to 2TB.

5.1.3 - Processor Graphics

Onboard Intel HD Graphics 500 processing circuitry is integrated into the processor.
● Single Display supports maximum resolution up to 3840x2160 (4K) @ 60 Hz.
● Dual independent displays achieved through the optional second Mini- Display Port.
● Up to three mirrored displays is achieved via Display Port v1.2 daisy chaining.

5.1.4 - Combo Audio Jack

The audio jack is implemented using the Realtek ALC233-VB2 and supports Nokia and Apple
headset connectors.
Pin
1
2
3
4
Storage Manufacturer
eMMC San Disk
eMMC Samsung
Memory Manufacturer
LPDDR4 Samsung
LPDDR4 Samsung

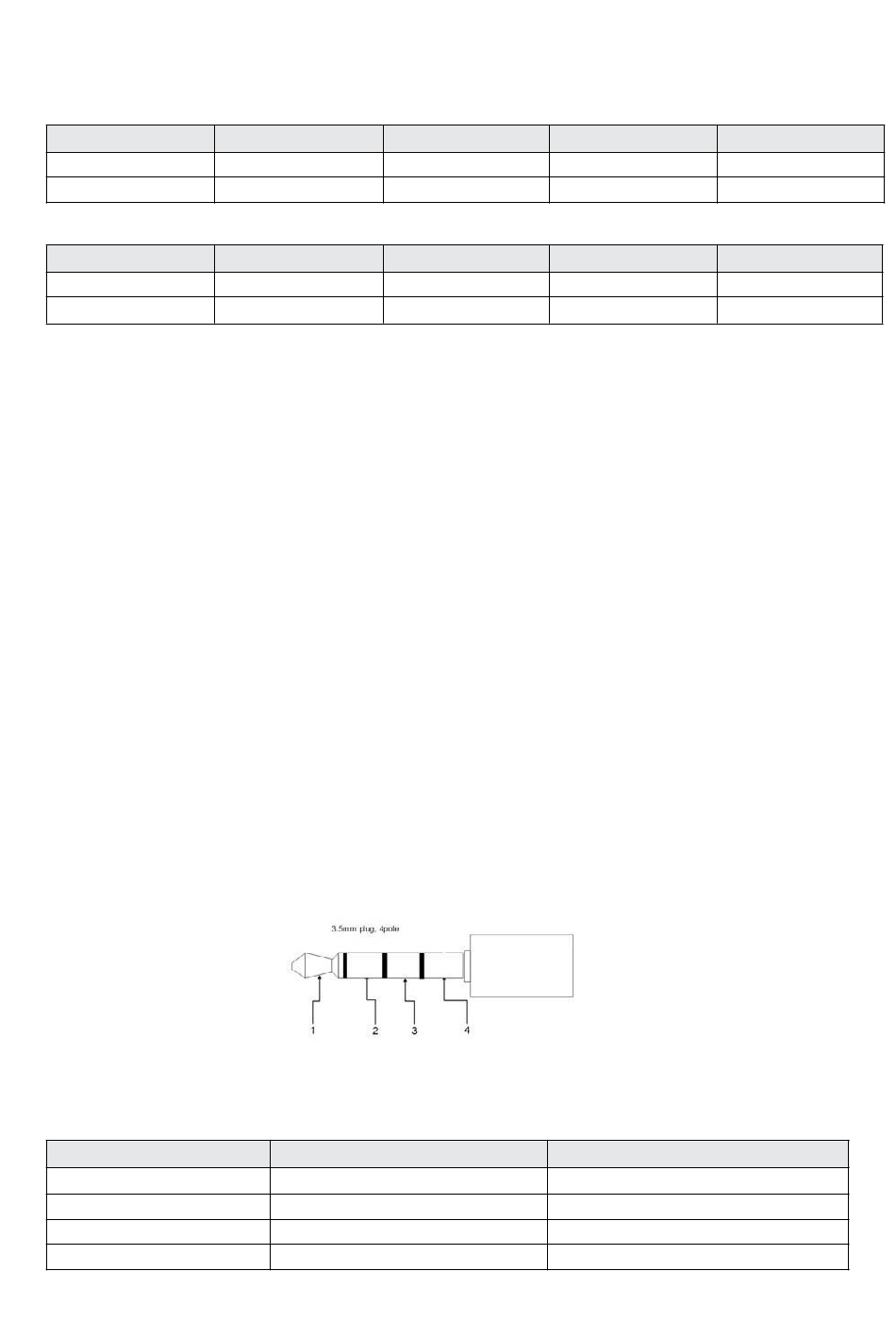

Figure 12. CL200 Series Combo Audio Jack
Nokia Headset Connector
Left
Right
Mic
Ground
Part Number
SD1NBDG4-8G
KLMG2JETD-B041
Part Number
K4F8E304HB-MGCH
K4F6E304HB-MGCJ
Standard Connector
Left
Right
Ground
Mic
Size
8 GB
32 GB
Size
1 GB x 2
2 GB x 2
