5 - Motherboard Overview

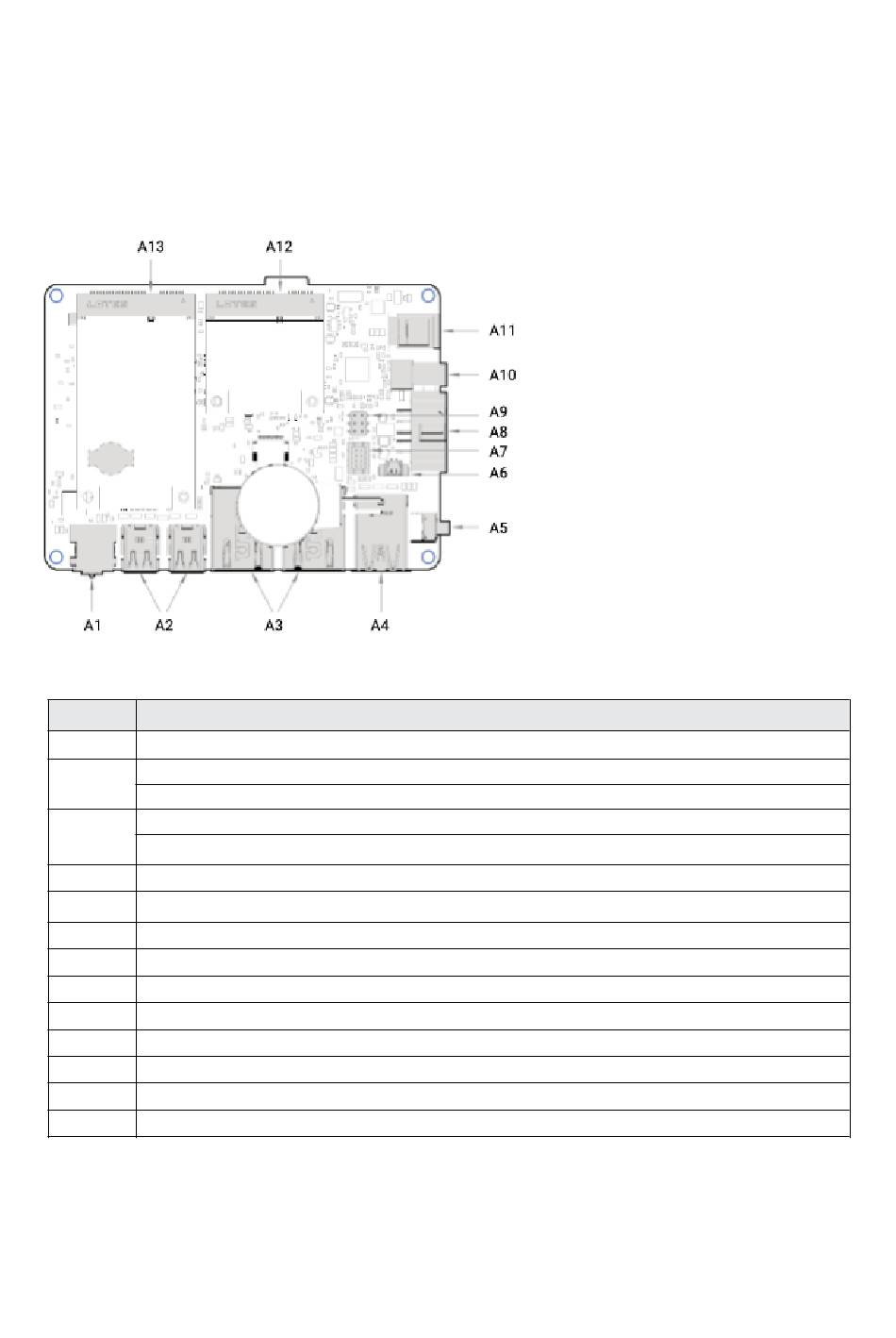

5.1 - Core Design - Motherboard

Item Function description
A1
Combo Audio JACK connector (optional)
A2
miniDisplay Port connector - J54-DDI0 1st display
miniDisplay Port connector - J55-DDI1 2nd display (optional)
A3
RJ45 LAN connector - J_Lan_1
RJ45 LAN connector - J_Lan_2 (optional)
A4
Dual USB3.0 connector
A5
Power button
A6
Battery header
A7
HDMI CEC header (optional)
A8
RS 232 COM Box header
A9
Clear CMOS + AT/ATX mode header
A10
USB2.0 vertical type connector
A11
DC-IN PWR jack
A12
Half-height mPCIE slot
A13
mPCIE slot/mSATA slot
