MANUFACTURERS OF QUALITY AGRICULTURAL EQUIPMENT SINCE 1936
OPERATOR'S MANUAL
AND
PARTS LISTING
FOR THE

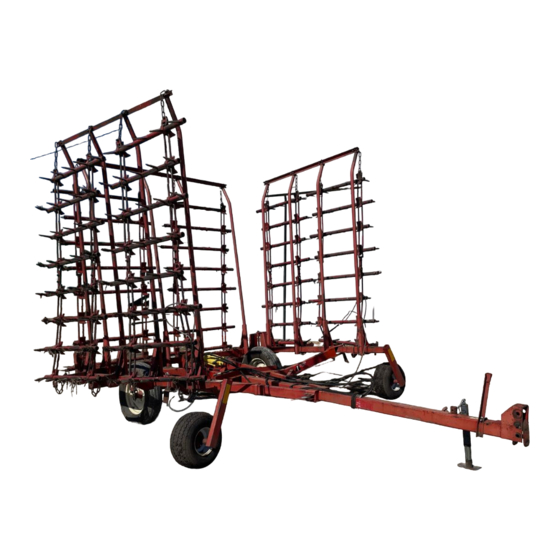

HDL Series
16 through 24 Models
VERSION: 4-99TSK
TO THE OWNER AND OPERATORS
Before assembling or operating this unit, READ THIS MANUAL THOROUGHLY. To obtain
the best performance of the unit, familiarize yourself with each component and adjustment.
Store this manual where it can be readily available for future reference. In the event that the
harrow or any part of the unit should be sold, be sure that the new owner receives a copy of
this manual for their reference.
1330 DALLAS STREET, P.O. BOX 100
SAUK CITY, WISCONSIN 53583
PHONE: (608) 643-3321
TOLL FREE: (800) 627-8569 FAX: (608) 643-3976
