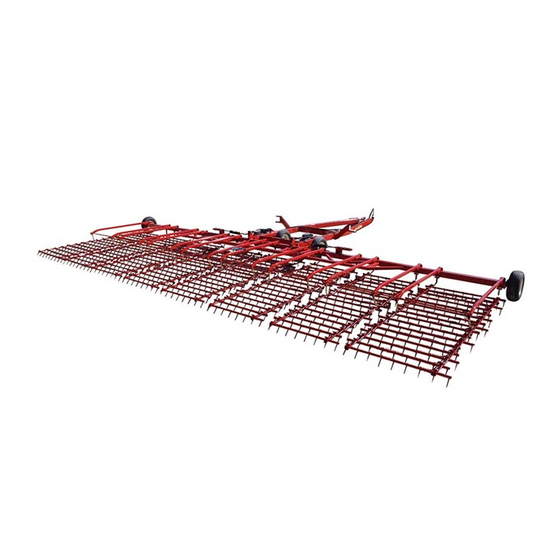

McFarlane HDL-100-8 Series Operator's Manual And Set-Up Instructions

Hide thumbs

Table Of Contents

Quick Links

Download this manual

MANUFACTURERS OF QUALITY AGRICULTURAL EQUIPMENT SINCE 1936

OPERATOR'S MANUAL

AND

SET-UP INSTRUCTIONS

FOR THE

HDL-100-8 Series

HDL-100-44 Series

All Models

Version: 12595 (02-17)

Serial Number 20648 - higher

TO THE OWNER AND OPERATORS

Before assembling or operating this unit, READ THIS MANUAL THOROUGHLY. To

obtain the best performance of the unit, familiarize yourself with each component and

adjustment. Store this manual where it can be readily available for future reference. In

the event that the harrow or any part of the unit should be sold, be sure that the new

owner receives a copy of his manual for their reference.

1330 DALLAS STREET, P.O. BOX 100

SAUK CITY, WISCONSIN 53583

PHONE: (608) 643-3322

TOLL FREE: (888) 627-8569 FAX: (608) 643-3976

Table of Contents

Need help?

Do you have a question about the HDL-100-8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for McFarlane HDL-100-8 Series

Page 1 MANUFACTURERS OF QUALITY AGRICULTURAL EQUIPMENT SINCE 1936 OPERATOR’S MANUAL SET-UP INSTRUCTIONS FOR THE HDL-100-8 Series HDL-100-44 Series All Models Version: 12595 (02-17) Serial Number 20648 - higher TO THE OWNER AND OPERATORS Before assembling or operating this unit, READ THIS MANUAL THOROUGHLY. To obtain the best performance of the unit, familiarize yourself with each component and adjustment.
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................... 3 LIMITED WARRANTY ......................... 3 SAFETY ............................4 CONTACT INFORMATION ......................5 LIGHTING AND MARKING ......................6 SAFETY SIGN CARE ....................... 6 - 7 TIRE SAFETY ..........................7 BEFORE OPERATION ......................7 - 8 DURING OPERATION ......................8 - 9 FOLLOWING OPERATION ......................
Page 3: Introduction
HDL-100 Series If within one year from the date of purchase, this transport cart and/or its accompanying harrow sections fail due to defect in material or workmanship, McFarlane Mfg. Co., Inc. will repair it, free of charge. Warranty service is available by simply contacting the nearest McFarlane dealership throughout the United States or Canada.
Page 4: Safety
SAFETY TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH. THIS SYMBOL MEANS ...
Page 5: Contact Information
CONTACT INFORMATION If you have questions not answered in this manual, require additional copies, or the manual is damaged, please contact your local dealer or: McFarlane Mfg. Co., Inc. 1330 Dallas Street P.O. Box 100 Sauk City, WI 53583 PHONE:...
Page 6: Lighting And Marking
SAFETY FIRST! Equipment Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
Page 7: Tire Safety
 Be sure that the installation area is clean and dry.  Decide on the exact position before you remove the backing paper. Tire Safety  Failure to follow proper procedures when mounting a tire on a wheel or rim can produce an explosion which may result in serious injury or death.
Page 8: During Operation
 Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a mechanical retainer and attach safety chain.  Do not allow anyone to stand between the tongue or hitch and the towing vehicle when backing up to the equipment. During Operation: ...
Page 9: Following Operation
Following Operation:  When disconnecting, stop the tractor or towing vehicle, set the brakes, secure the wings in the wing rests, relieve hydraulic fluid pressure, shut off the engine and remove the ignition keys. Make sure all jack and support stands are in place before removing hitch pins. ...
Page 10: Performing Maintenance
 Be observant of bridge loading ratings. Do not cross bridges rated lower than the gross weight at which you are operating.  Watch for obstructions overhead and to the side while transporting.  Always operate equipment in a position to provide maximum visibility at all times. Make allowances for increased length and weight of the equipment when making turns, stopping, etc.
Page 11: Maintenance And Service Schedule
OPERATING SUGGESTIONS There are some important points to remember in order to obtain the best possible results from your McFarlane harrow.  To maximize the harrow’s performance, it should be towed at speeds ranging from six to nine (6 - 9) mph. This keeps the field debris moving through the harrow sections and avoids clogging.
Page 12: Assembly Suggestions
ASSEMBLY SUGGESTIONS  You will find the machine is easier to assemble if the set-up instructions are followed in the order given in the manual.  Before beginning, sort the various bolt bags, hardware bags and hydraulic bags according to what part of the unit that is being setup.
Page 13: Assembly Instructions
STEP - BY - STEP ASSEMBLY INSTRUCTIONS Main Frame Assembly 1. Bolt the Hitch Tube to the Main Frame using 1 x 8 bolts and lock nuts. Note that there are different positions for the Hitch Tube. 2. Insert the Hub and Spindle into the Main Frame and secure using 1/2 x 3 1/2 bolts and lock nuts.
Page 14 CLEVIS HITCH PINTLE HITCH TOP PLATE BASE HITCH CUSHION V-PLATE CLEVIS 3/4" x 5" BOLT 3/4" x 2 1/2" BOLT AND LOCK NUT BASE HITCH Figure 2 Figure 3 Attach the Center Bar 1. Attach the Center Bar to the Main Frame using 1 1/4 x 5 1/2 bolts and nylon jam nuts. Install the 4 x 8 cylinders as shown.
Page 15 Attach and Assemble the Wing Frame 1. Attach the Wing Frame to the Center Bar using the 1 1/4 Hinge Pins and 1/2 x 3 bolts and lock nuts. 2. Insert a Hub and Spindle into the tube on the end of the Wing and secure using a 1/2 x 3 1/2 bolt and lock nut.
Page 16 6. Attach two 69” (116 through 130 models) or 90” (132 through 140 models) hoses from the rod end of the 4 x 8 cylinders to the rod end of the 14” wing fold cylinders. 7. Attach the 265” (116 through 122 models), 312” (124 through 130 models) or 360” (132 through 140 models) to the rod end of the 4 x 8 cylinder on the right hand side of the unit.
Page 17 Attach the Lift Arms (4+4 model only) 1. Refer to the appropriate layout diagram in appendix C. Note the dimensions for the lift arm locations. Place a mark on the center bar and wings at the locations for each of the lift arms.
Page 18 Angle of Attack McFarlane flexible harrow sections have a built-in system which allows the harrow owner a choice between a steep or shallow angle of attack. To change the angle of attack, simply reverse the harrow section and pull it from the other end. Each angle has its advantages and disadvantages.
Page 19 Figure 9 Connect 4+4 Sections 1. Bolt the front pull chains to the front tabs on the front harrow sections. Use 1/2 x 1 1/2 bolts, flat washers and lock nuts. The chains should be bolted to the bottom of the pull tabs. 2.
Page 20 Figure 10 For the next steps you will need enough room to lower both wings completely. Be sure the unit is attached to a tractor of adequate size before actuating the hydraulics! Attach the Wing Cables 1. Attach one end of the Wing Cable to the 5/8 x 8 eye-bolt with a shackle. Secure the eye-bolt to the bracket on the Main Frame with lock nuts.
Page 21 Figure 11 Attach the Wing Cable Lift Assembly 1. Bolt the Cable Lift Bracket to the Main Frame approximately 24” from the front of the frame side tube. Use two 1/2 x 3 x 7 U-bolts and lock nuts. Do not tighten yet. 2.
Page 22 Figure 12 Attach the Wing Rests Place the Wing Rests approximately 18” ahead of the cylinder post on the Main Frame. Bolt firmly in place using the 5/8 x 6 x 4 U-bolts and lock nuts. Do not tighten yet. Refer to Final Adjustments step 2 regarding Stroke Control Collar and Wing Rest location adjustments.
Page 23 Figure 13 Install the Lighting Package 1. With the unit in field position, lay out the wire harness wishbone. The wishbone has a four pin plug in the middle of it and is split with three pin plugs on each end. The three pin plug connects to the lights.
Page 24 5. Now that the lights have been mounted and the wires run, attach wire harnesses to the frame and hydraulic hoses with zip ties. Be sure to leave slack at the hinge points to prevent the wire harness from becoming entangled. Also, securely attach the wire harness to the lift arm and next to the light assembly.
Page 25 Figure 15 Attach the Hitch Storage Bracket 1. Attach the Hitch Storage Bracket (4) to the front of the Hitch Pole using the 1/2 x 6 U-bolt (1), lock washers (2) and nuts (3). Attach the Light Plug Storage receptacle (8) using ¼ x 1 bolts (5), lock washers (6) and nuts (7).
Page 26 Attach the Slow Moving Vehicle sign 1. Attach the SMV sign Mounting Bracket (1) to the first lift arm left of center as shown in Figure 16, using 3/8 X 2 X 3 3/4 U-bolts (2) and locking nuts (3). Attach the SMV sign (4) to the Mounting Bracket (1) using 1/4 x 1 bolts (5), and locking nuts (6).
Page 27 Using the HDL-116 Transport/Parking Locks 1. Fold the unit into transport position. 2. Attach the short lock brackets to the main lift cylinder pins and secure using lynch pins. Figure 18 3. Attach the long lock brackets to the wing fold cylinder pins and secure using lynch pins. Figure 19 4.
Page 28: Final Adjustments
Figure 20 Final Adjustments Refer to Operating Instructions on Page 11 regarding lowering the section into field position. 1. Unfold the unit into the field position and fully extend all cylinders. 2. Slowly fold the unit into the transport position. Be sure the Wing Frames engage the ramp on the Wing Rest and fully sit on it.
Page 29: Troubleshooting
This completes the assembly of your harrow and transport cart. Before using the unit, double check that all components have been assembled properly. If there are any questions regarding any of the assembly steps, contact your local dealer for an explanation. Do not operate this or any equipment unless you are sure that all components operate as they were designed to operate.
Page 30: Bolt Torque Specifications
BOLT TORQUE SPECIFICTIONS Coarse Thread Series Fine Thread Series Nut Size Nut Size Tightening Tightening Threads per Torque Threads per Torque Inch (lb.ft.) Inch (lb.ft.) Grade C Nuts Grade C Nuts Max. Min. Max. Min. 1/4 – 20 14.7 1/4 – 28 14.7 5/16 –...
Page 31 HDL-116 through HDL-140 HARROW CART PARTS DIAGRAM McFarlane Manufacturing reserves the right to change specifications of design at any time without obligation to modify previous products. APPENDIX B...
Page 32 HDL-116 through HDL-140 HARROW CART PARTS LIST Always order by Part Number – Not by Key Number PART # DESCRIPTION QTY. PPI-208 CLEVIS PPI-300 BASE HITCH HDL-201 HITCH POLE – 12’ (116 – 122 models) HDL-278 HITCH POLE – 16’ (124 – 140 models) 12503 SAFETY CHAIN RT-2021...
Page 33 Quantity depends on harrow sections used. Unnumbered items are not pictured. Please specify model number when ordering these parts. McFarlane Manufacturing reserves the right to change specifications of design at any time without obligation to modify previous products. APPENDIX B...
Page 34 Quantity depends on harrow sections used. Unnumbered items are not pictured. Please specify model number when ordering these parts. McFarlane Manufacturing reserves the right to change specifications of design at any time without obligation to modify previous products. APPENDIX B...
Page 35 FH-8-BAR HARROW SECTIONS PARTS DIAGRAM & LISTING INCLUDES FH-500-8, FH-600-8, FH-700-8, FH-800-8, AND FH-900-8 16 BAR 4+4 SECTION SECTION ONLY ONLY FH-700-8 SHOWN ITEM # PART # DESCRIPTION FH-801 #1 HARROW BAR (FH-500-8) FH-805 #1 HARROW BAR (FH-600-8) FH-809 #1 HARROW BAR (FH-700-8) FH-813 #1 HARROW BAR (FH-800-8) FH-817...
Page 36 FH-820 #4 HARROW BAR (FH-900-8) FH-803 #5 HARROW BAR (FH-500-8) FH-807 #5 HARROW BAR (FH-600-8) FH-811 #5 HARROW BAR (FH-700-8) FH-815 #5 HARROW BAR (FH-800-8) FH-819 #5 HARROW BAR (FH-900-8) FH-803 #6 HARROW BAR (FH-500-8) FH-807 #6 HARROW BAR (FH-600-8) FH-811 #6 HARROW BAR (FH-700-8) FH-815...
Page 37 HDL-116 through 140 HARROW CART HYDRAULICS DIAGRAM & LISTING PART # DESCRIPTION QTY. HYH-9265 3/8” X 265” HYD HOSE with one 1/2” end (116 – 122) HYH-9312 3/8” X 312” HYD HOSE with one 1/2” end (124 – 130) HYH-9360 3/8”...
Page 38 HYF-2821 ELBOW (3/8”m – 1/2” O-ring) with restrictor HYO-2103 1” x 3 1/2” CLEVIS PIN (118-140) 10454 1” x 6” OFFSET CYLINDER LOCK PIN 10452 CYLINDER LOCK, 4x8 10453 CYLINDER LOCK, 2x14 HITCH STORAGE BRACKET KEY PART # DESCRIPTION NOTES BU-1265 U-BOLT, 1/2”...
Page 39 LIGHTING AND SMV COMPONENTS KEY PART # DESCRIPTION QTY. LB-1330 30’ LIGHT HARNESS, STRAIGHT LB-1420 20’ WIRE HARNESS WISHBONE (10’ EACH DIRECTION) LB-1101 LIGHT – LEFT HAND LB-1101 LIGHT – RIGHT HAND LB-1200 LIGHT BRACKET MOUNT BH-2510 1/4 X 1 HEX BOLT NLT-2520 1/4-20 TOP LOCK HEX NUT MM-1300...
Page 40 HDL-116 LAYOUT DIAGRAM APPENDIX C...
Page 41 HDL-118 LAYOUT DIAGRAM APPENDIX C...
Page 42 HDL-120 LAYOUT DIAGRAM APPENDIX C...
Page 43 HDL-122 LAYOUT DIAGRAM APPENDIX C...
Page 44 HDL-124 LAYOUT DIAGRAM APPENDIX C...
Page 45 HDL-126 LAYOUT DIAGRAM APPENDIX C...
Page 46 HDL-128 LAYOUT DIAGRAM APPENDIX C...
Page 47 HDL-130 LAYOUT DIAGRAM APPENDIX C...
Page 48 HDL-132 LAYOUT DIAGRAM APPENDIX C...
Page 49 HDL-134 LAYOUT DIAGRAM APPENDIX C...
Page 50 HDL-136 LAYOUT DIAGRAM APPENDIX C...
Page 51 HDL-138 LAYOUT DIAGRAM APPENDIX C...
Page 52 HDL-140 LAYOUT DIAGRAM APPENDIX C...
Page 53: Warranty Registration Form
WARRANTY REGISTRATION FORM This form must be filled out by the dealer and owner and sent to: McFarlane Mfg. Co., Inc., 1330 Dallas Street, P.O. Box 100, Sauk City, WI 53583. WARRANTY REGISTRATION FORM & INSPECTION REPORT WARRANTY REGISTRATION This form must be filled out by the dealer and signed by both the dealer and customer at the time of delivery.
Page 55: Dealer Contact Information
Dealer Contact Information McFARLANE MANUFACTURING CO. INC. 1330 DALLAS STREET, P.O. BOX 100 SAUK CITY, WISCONSIN 53583 PHONE: (608) 643-3322 TOLL FREE: (888) 627-8569 FAX: (608) 643-3976 WEB: www.flexharrow.com...
