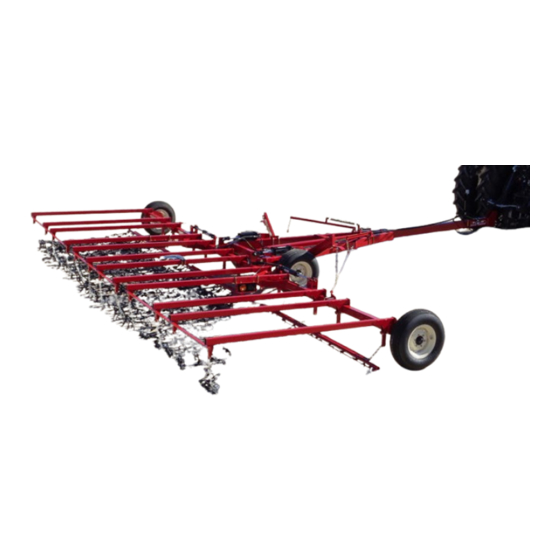

Chain harrow
Hide thumbs Also See for HD-100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
MANUFACTURERS OF QUALITY AGRICULTURAL EQUIPMENT SINCE 1936
OPERATOR'S MANUAL
AND
SET-UP INSTRUCTIONS
FOR THE
HD-100 Series
Chain Harrow
All Models
version: MM-0201(10-16)
Starting at Serial Number 17876
TO THE OWNER AND OPERATORS
Before assembling or operating this unit, READ THIS MANUAL THOROUGHLY. To obtain
the best performance of the unit, familiarize yourself with each component and adjustment.
Store this manual where it can be readily available for future reference. In the event that the
harrow or any part of the unit should be sold, be sure that the new owner receives a copy of
this manual for their reference.
1330 DALLAS STREET, P.O. BOX 100
SAUK CITY, WISCONSIN 53583
PHONE: (608) 643-3322
TOLL FREE: (888) 627-8569 FAX: (608) 643-3976

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for McFarlane HD-100 Series

Summary of Contents for McFarlane HD-100 Series

  • Page 1 MANUFACTURERS OF QUALITY AGRICULTURAL EQUIPMENT SINCE 1936 OPERATOR’S MANUAL SET-UP INSTRUCTIONS FOR THE HD-100 Series Chain Harrow All Models version: MM-0201(10-16) Starting at Serial Number 17876 TO THE OWNER AND OPERATORS Before assembling or operating this unit, READ THIS MANUAL THOROUGHLY. To obtain the best performance of the unit, familiarize yourself with each component and adjustment.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION .......................3 LIMITED WARRANTY .....................3 SAFETY ..........................4 CONTACT INFORMATION ....................5 LIGHTING AND MARKING .....................6 SAFETY SIGN CARE ......................7 TIRE SAFETY ........................7 BEFORE OPERATION ....................7 - 8 DURING OPERATION ....................8 - 9 FOLLOWING OPERATION ....................9 HIGHWAY AND TRANSPORT OPERATIONS ............9 - 10 PERFORMING MAINTENANCE ...................10 MAINTENANCE AND SERVICE SCHEDULE .............11 OPERATING SUGGESTIONS ..................11...

  • Page 3: Introduction

    HD-100 Series If within one year from the date of purchase, this transport cart and/or its accompanying harrow sections fail due to defect in material or workmanship, McFarlane Mfg. Co., Inc. will repair it, free of charge. Warranty service is available by simply contacting the nearest McFarlane dealership throughout the United States or Canada.

  • Page 4: Safety

    SAFETY TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH. THIS SYMBOL MEANS ...

  • Page 5: Contact Information

    CONTACT INFORMATION If you have questions not answered in this manual, require additional copies, or the manual is damaged, please contact your local dealer or: McFarlane Mfg. Co., Inc. 1330 Dallas Street P.O. Box 100 Sauk City, WI 53583 PHONE:...

  • Page 6: Lighting And Marking

    SAFETY FIRST! Equipment Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 7: Tire Safety

    How to Install Safety Signs:  Be sure that the installation area is clean and dry.  Decide on the exact position before you remove the backing paper. Tire Safety  Failure to follow proper procedures when mounting a tire on a wheel or rim can produce an explosion which may result in serious injury or death.

  • Page 8: During Operation

     Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a mechanical retainer and attach safety chain.  Do not allow anyone to stand between the tongue or hitch and the towing vehicle when backing up to the equipment. During Operation: ...

  • Page 9: Following Operation

    Following Operation:  When disconnecting, stop the tractor or towing vehicle, set the brakes, secure the wings in the wing rests, relieve hydraulic fluid pressure, shut off the engine and remove the ignition keys. Make sure all jack and support stands are in place before removing hitch pins. ...

  • Page 10: Performing Maintenance

     Be observant of bridge loading ratings. Do not cross bridges rated lower than the gross weight at which you are operating.  Watch for obstructions overhead and to the side while transporting.  Always operate equipment in a position to provide maximum visibility at all times. Make allowances for increased length and weight of the equipment when making turns, stopping, etc.

  • Page 11: Maintenance And Service Schedule

    OPERATING SUGGESTIONS There are some important points to remember in order to obtain the best possible results from your McFarlane harrow.  To maximize the harrow’s performance, it should be towed at speeds ranging from six to nine (6 - 9) mph. This keeps the field debris moving through the harrow sections and avoids clogging.

  • Page 12: Assembly Suggestions

    ASSEMBLY SUGGESTIONS  You will find the machine is easier to assemble if the set-up instructions are followed in the order given in the manual.  Before beginning, sort the various bolt bags, hardware bags and hydraulic bags according to what part of the unit that is being setup.

  • Page 13: Assembly Instructions

    STEP - BY - STEP ASSEMBLY INSTRUCTIONS Main Frame Assembly 1. Bolt the Hitch Tube to the Main Frame using 1 x 8 bolts and lock nuts. Note that there are different positions for the Hitch Tube. 2. Insert the Hub and Spindle into the Main Frame and secure using ½ x 3 ½ bolts and lock nuts. Install the 11L tires.
  • Page 14 CLEVIS HITCH PINTLE HITCH TOP PLATE BASE HITCH CUSHION V-PLATE CLEVIS 3/4" x 5" BOLT 3/4" x 2 1/2" BOLT AND LOCK NUT BASE HITCH Figure 2 Figure 3 Attach the Center Bar 1. Attach the Center Bar to the Main Frame using 1 ¼ x 5 ½ bolts and nylon jam nuts. Install the 4 x 8 cylinders as shown.
  • Page 15 Attach and Assemble the Wing Frame 1. Attach the Wing Frame to the Center Bar using the 1 ¼ Hinge Pins and ½ x 3 bolts and lock nuts. 2. Insert a Hub and Spindle into the tube on the end of the Wing and secure using a ½ x 3 ½ bolt and lock nut.
  • Page 16 7. Attach the 265” (116 through 122 models), 312” (124 through 130 models) or 360” (132 through 140 models) to the rod end of the 4 x 8 cylinder on the right hand side of the unit. Attach the 276” (116 through 122 models), 324” (124 through 130 models) or 372” (132 through 140 models) hose to the base end.
  • Page 17 Attach the Pull Tubes 1. Refer to the layout diagram in appendix C and place the pull tubes behind the pull points. Bolt them to the pull chains using a 1/2” x 1 1/2” bolt, lock washer and hex nut for each pull chain. 1/2"...
  • Page 18 Attach the Lift Chains 1. Refer to figure 18 below. Wrap the 16-link lift chains around the second to last cross piece below and in front of the end of the lift tube and feed the chain back through the large 1/2”...
  • Page 19 Figure 11 Attach the Wing Cable Lift Assembly 1. Bolt the Cable Lift Bracket to the Main Frame approximately 24” from the front of the frame side tube. Use two ½ x 3 x 7 U-bolts and lock nuts. Do not tighten yet. 2.
  • Page 20 Figure 12...
  • Page 21 Attach the Wing Rests Place the Wing Rests approximately 18” ahead of the cylinder post on the Main Frame. Bolt firmly in place using the 5/8 x 6 x 4 U-bolts and lock nuts. Do not tighten yet. Refer to Final Adjustments step 2 regarding Stroke Control Collar and Wing Rest location adjustments.
  • Page 22 4. Attach the light assemblies to the first lift arm on the wings using the 3/8 x 2 – 3 ¾ U-Bolts, lock washers and hex nuts. Do not tighten yet. You may have to adjust the location later. The lights must be attached so that the red and yellow lens will be facing towards the center of the unit with the yellow light towards the rear of the unit.
  • Page 23 Figure 15 Attach the Hitch Storage Bracket 1. Attach the Hitch Storage Bracket (4) to the front of the Hitch Pole using the 1/2 x 6 U-bolt (1), lock washers (2) and nuts (3). Attach the Light Plug Storage receptacle (8) using ¼ x 1 bolts (5), lock washers (6) and nuts (7).
  • Page 24 Attach the Slow Moving Vehicle sign 1. Attach the SMV sign Mounting Bracket (1) to the first lift arm left of center as shown in Figure 16, using 3/8 X 2 X 3 3/4 U-bolts (2) and locking nuts (3). Attach the SMV sign (4) to the Mounting Bracket (1) using 1/4 x 1 bolts (5), and locking nuts (6).

  • Page 25: Final Adjustments

    Final Adjustments 1. Unfold the unit into the field position and fully extend all cylinders. 2. Slowly fold the unit into the transport position. Be sure the Wing Frames engage the ramp on the Wing Rest and fully sit on it. It may be necessary to adjust the Wing Rest back/forward. It may also be necessary to adjust the stroke control collar on the 4x8 main lift cylinders.

  • Page 26: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Hydraulics actuate too rapidly Hydraulic restrictors not Install hydraulic restrictors installed Wings will not slide into wing Wing rests improperly Reposition wing rests rests positioned Excessive clogging during Angle of attack too steep Pull harrow sections from the operations other end Ground speed too low...

  • Page 27: Bolt Torque Specifications

    BOLT TORQUE SPECIFICTIONS Coarse Thread Series Fine Thread Series Nut Size Nut Size Tightening Tightening Threads Torque Threads Torque per Inch (lb.ft.) per Inch (lb.ft.) Grade C Nuts Grade C Nuts Max. Min. Max. Min. 1/4 - 20 14.7 1/4 - 28 14.7 5/16 - 18 22.3 15.2...
  • Page 28 HD-116 through HD-140 HARROW CART PARTS DIAGRAM APPENDIX B...
  • Page 29 HDL-236 WING CABLE PULL BRACKET, RIGHT Unnumbered items are not pictured. Please specify model number when ordering these parts. McFarlane Manufacturing reserves the right to change specifications of design at any time without obligation to modify previous products. APPENDIX B...
  • Page 30 Quantity depends on harrow sections used. Unnumbered items are not pictured. Please specify model number when ordering these parts. McFarlane Manufacturing reserves the right to change specifications of design at any time without obligation to modify previous products. APPENDIX B...
  • Page 31 HD-116 through 140 HARROW CART HYDRAULICS DIAGRAM & LISTING PART # DESCRIPTION QTY. HYH-9265 3/8” X 265” HYD HOSE with one ½” end (116 – 122) HYH-9312 3/8” X 312” HYD HOSE with one ½” end (124 – 130) HYH-9360 3/8”...
  • Page 32 HITCH STORAGE BRACKET KEY PART # DESCRIPTION NOTES BU-1265 U-BOLT, 1/2” X 6 X 5 LW-0050 1/2” LOCK WASHERS NH-5013 1/2” HEX NUT LB-1105 HITCH STORAGE BRACKET BH-2510 1/4” – 20 X 1 GRADE 5 HEX BOLT LW-0025 1/4” LOCK WAHSERS NH-2520 1/4”...
  • Page 33 LIGHTING AND SMV COMPONENTS KEY PART # DESCRIPTION QTY. LB-1325 25’ WIRE HARNESS EXTENSION LB-1420 20’ WIRE HARNESS WISHBONE (10’ EACH DIRECTION) LB-1101 LIGHT – LEFT HAND LB-1101 LIGHT – RIGHT HAND LB-1200 LIGHT BRACKET MOUNT BH-2510 1/4 X 1 HEX BOLT NLT-2520 1/4-20 TOP LOCK HEX NUT MM-1300...
  • Page 34 HD-120-U LAYOUT DIAGRAM APPENDIX C...
  • Page 35 HD-124-U LAYOUT DIAGRAM APPENDIX C...
  • Page 36 HD-130-U LAYOUT DIAGRAM APPENDIX C...
  • Page 37 HD-132-T LAYOUT DIAGRAM APPENDIX C...
  • Page 38 HD-132-U LAYOUT DIAGRAM APPENDIX C...
  • Page 39 HD-136-U LAYOUT DIAGRAM APPENDIX C...
  • Page 40 HD-140-U LAYOUT DIAGRAM APPENDIX C...
  • Page 41 HD-140-T LAYOUT DIAGRAM APPENDIX C...

  • Page 43: Warranty Registration Form

    WARRANTY REGISTRATION FORM This form must be filled out by the dealer and owner and sent to: McFarlane Mfg. Co., Inc., 1330 Dallas Street, P.O. Box 100, Sauk City, WI 53583. WARRANTY REGISTRATION FORM & INSPECTION REPORT WARRANTY REGISTRATION This form must be filled out by the dealer and signed by both the dealer and customer at the time of delivery.
  • Page 45 Dealer Contact Information McFARLANE MANUFACTURING CO. INC. 1330 DALLAS STREET, P.O. BOX 100 SAUK CITY, WISCONSIN 53583 PHONE: (608) 643-3322 TOLL FREE: (888) 627-8569 FAX: (608) 643-3976 WEB: www.flexharrow.com...
