SPX OTC 7248 Parts List & Operating Instructions

SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7290
Fax: (507) 455-7063
Brake Anchor Pin Pusher / U-joint Press
Ball Joint Removal and Installation Set
1

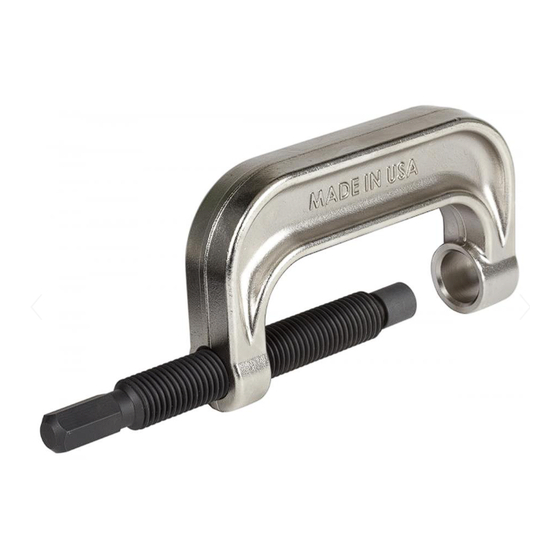

C-frame #7248
(does not include Items 6-10)
Item Part No.
No. No. Req'd
1 37703 1
2 14472 1
3 10273 1
4 29501 1
5 41925 1
Caution: To help prevent personal injury:
•
Wear protective eyewear that meets the requirements of ANSI Z87.1 and OSHA.
•
Before performing any repairs on a vehicle, block all wheels to prevent movement.
•
Check the final alignment of tooling and components before using the C-frame press to exert
pressure.
Litho in USA
and
2 3 4
5
Description
Forcing Screw
Steel Ball (5/8" dia.)
"O" Ring
(13/16 x 5/8 x 3/32, -114)
Plug
C-frame
Safety Precautions
Parts List &
Operating Instructions
for:
10
6
Tool Sets #7249
(includes Tool #7248)
Item Part No.
No. No. Req'd
6 29503 1
7 29504 1
8 29505 1
9 305228 1
10 305227 1
Sheet No.
Issue Date:
Form No. 104950
7248
7249
9
8
7
Description
Receiving Tube
(3" OD x 2-3/4" ID)
Receiving Tube
(2-1/2" OD x 2-1/4" ID)
Receiving Tube
(2" OD x 1-3/4" ID)
Removing Adapter
Installing Adapter
1 of 2
Rev. 5-15-95
