SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
Definition: A hydraulic punch tool is a tool powered by a hydraulic pump to punch profile holes in metal or
similar materials.
Read and carefully follow these instructions before installation and use of this tool. Many problems with new
equipment are caused by improper operation and installation.
NOTE: Inspect the tool upon arrival. The carrier, not the manufacturer, is responsible for any damage
resulting from shipment.
Safety symbols are used to identify any action or lack of action that can cause personal injury. Your reading
and understanding of these safety symbols is very important.
DANGER - Danger is used only when your action or lack of action will cause serious human injury or
death.
WARNING - Warning is used to describe any action or lack of action where a serious injury can occur.
IMPORTANT - Important is used when action or lack of action can cause equipment failure, either
immediate or over a long period of time.
© SPX Corporation
®
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031

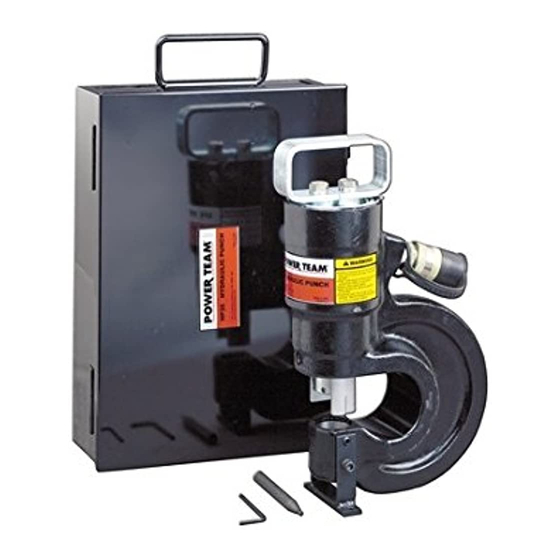

HYDRAULIC PUNCH TOOL
Max. Capacity: 20 Tons (HP20)
SAFETY DEFINITIONS
Operating Instructions for:
35 Tons (HP35)
Sheet No.
Rev. 2
Form No. 102885
HP20
HP35
1 of 5
Date: 13 Dec. 1999
Advertisement
Table of Contents
Related Manuals for SPX Power Team HP20
Summary of Contents for SPX Power Team HP20
- Page 1 WARNING - Warning is used to describe any action or lack of action where a serious injury can occur. IMPORTANT - Important is used when action or lack of action can cause equipment failure, either immediate or over a long period of time. Sheet No. 1 of 5 Rev. 2 Date: 13 Dec. 1999 © SPX Corporation...
-
Page 2: Safety Precautions
Operating Instructions, Form No. 102885, Back sheet 1 of 5 SAFETY PRECAUTIONS These instructions are intended for end-user application needs. If parts are ever needed for product repair, a detailed parts list or information on Power Team Authorized Hydraulic Service Center locations can be obtained by contacting your nearest Power Team facility. -
Page 3: Hydraulic Hose
Operating Instructions Form No. 102885 SAFETY PRECAUTIONS CONTINUED - GENERAL (CONTINUED) • Avoid exposing hydraulic equipment (especially hoses) to extreme high or low temperatures. Damage to equipment or failure may result and cause loss of control or personal injury. • Do not drop any hydraulic system components. Damage to the equipment and/or injury may result. •... -
Page 4: Hydraulic Fluids
Operating Instructions, Form No. 102885, Back sheet 2 of 5 SAFETY PRECAUTIONS CONTINUED - HYDRAULIC HOSE (CONTINUED) • Do not use the hose to move attached equipment. Stress may damage the hose and cause personal injury. • Hose material and coupler seals must be compatible with the hydraulic fluid used. Hoses also must not come in contact with corrosive materials such as creosote-impregnated objects and some paints. - Page 5 Operating Instructions Form No. 102885 SET UP Carefully plan your hydraulic system by selecting components that meet pressure range, load capacity, and set-up requirements. Any Power Team 10,000 PSI hydraulic pump may be used to power this punch, however, a low flow pump will provide the best and safest overall punch operation.
-
Page 6: Operation
Operating Instructions, Form No. 102885, Back sheet 3 of 5 PUNCH AND DIE INSTALLATION AND REMOVAL CONTINUED - #252001 or #252002 HP20 Coupling Nut Note: These have left-hand threads! Coupling Nut Installation of Punches and Dies: Wrench NOTE: The punch and die must be a correctly matched set. (optional) a. -
Page 7: Preventive Maintenance
Operating Instructions Form No. 102885 OPERATION CONTINUED - • When used as a portable punch, lift using the handles provided. Securely hold the unit before and after punching. Avoid being pinched or caught in the tool. • A center punch indentation or mark can be used to help locate the punch on the material to be punched. - Page 8 Operating Instructions, Form No. 102885, Back sheet 4 of 5 SELECTING A PUNCH The following information, is provided as a convenient general reference guide for metal punching operations. Hole Size vs. Material Thickness Punching holes in metal is the fast, economical way to get precise hole size, smoothness and minimum burr. Compressive strength of the punch steel determines that the thickness of the metal being punched must not exceed the diameter of the punch.
- Page 9 Operating Instructions Form No. 102885 CHART #1 Tons of Pressure Required to Punch Mild Steel Round Hole Dia. 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 11/16" 3/4" 13/16" Gauge Inches .036 .048 .062 .075 .105 .120 .135 3/16" .188 –...
-
Page 10: Power Team Facilities
POWER TEAM FACILITIES ® UNITED STATES CHINA EUROPE C E R T I F I E D SPX Corporation-Fluid Power 212 Jiang Ning Road Albert Thijsstraat 12 CATIC Tower 23C 6471 WX Eygelshoven 5885 11th Street Shanghai 200041, China Netherlands...
