Detail 2
Note position
4
of locking jaw.
Detail 1
2
1
Detail 3
Note position of
locking jaw.
Detail 1
18
© SPX Corporation
Sheet No.
1 of 2
Issue Date: 6-15-04, Rev. F
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063
26
U.S. Patent 6,129,339
5
6
13
17
Detail 2
19
20
25
21
22

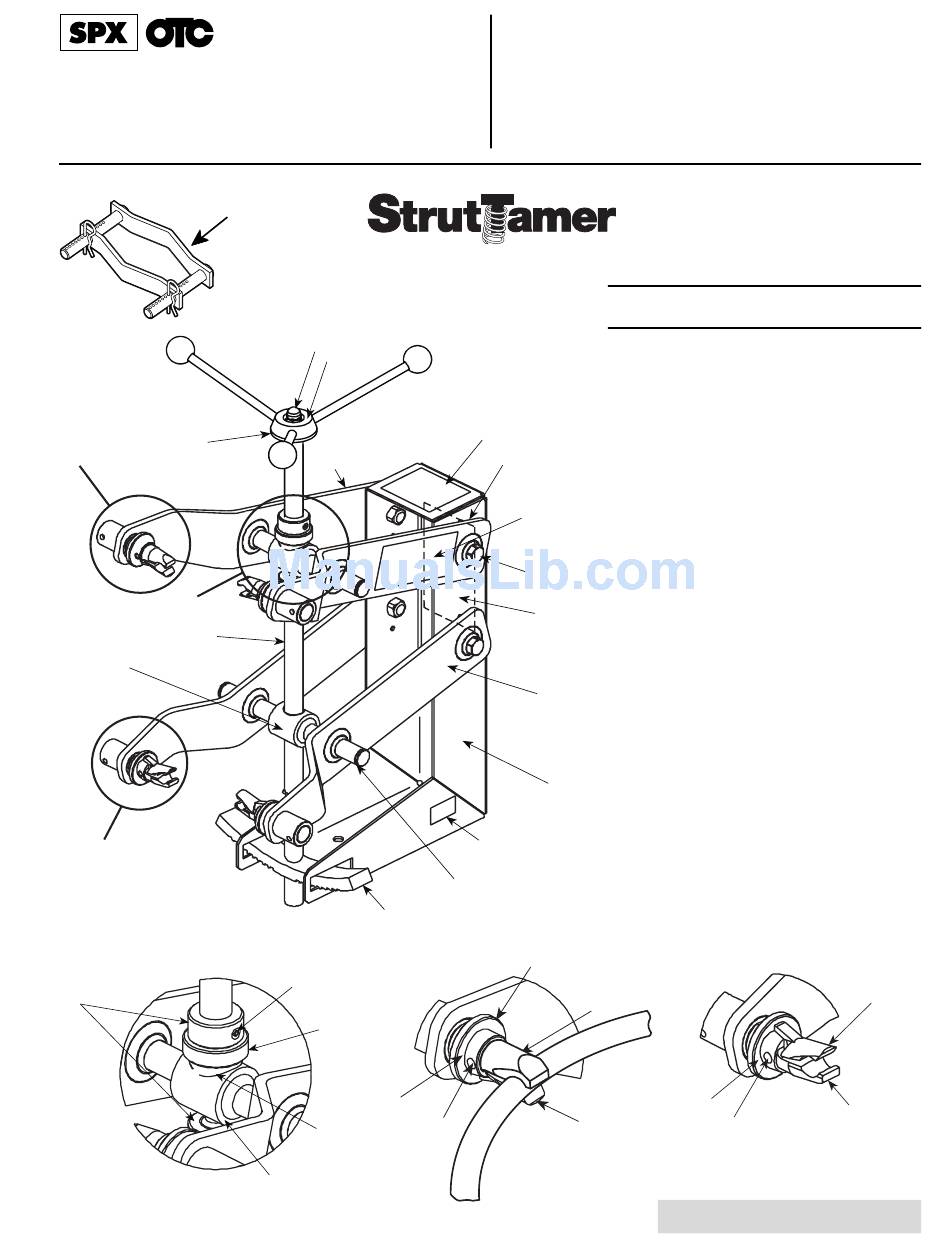

Parts List &
Operating Instructions for:
TM
7
8
9
10, 11
12
13
14
16
15
Locking Ring
23
24
3
Note
position
of locking jaw.
Form No. 106261
Parts List
Item
Part
No.
No.
Qty.
1
314647
1
Middle Trunnion
2
440649
1
Forcing Screw
3
10585
8
Roll Pin (1")
4
223271
1
Lockwasher
(internal, 1/2" tooth)
5
10110
1
Nut Cap
6
518450
1
Handle
7
223277
1
Caution Decal
8
223268
8
Rubber Bumper
9
223279
2
Decal
10
10101
4
Hex Hd. Cap Screw
11
15316
4
Hex Locknut
12
223278
1
Instruction Decal
13
223264
4
Arm
14
223266
1
Body
15
11998
4
Retaining Ring
16
46963
1
Decal
17
314648
1
Bottom Trunnion/cradle
18
314669
2
Retaining Nut
19
12298
3
Roll Pin
20
218428
1
Thrust Bearing
21
314649
1
Spherical Seat
22
314646
1
Top Trunnion
23
440644
4
Support Foot
24
440645
4
Locking Foot
25
314644
4
Locking Nut
26
6270
1
Accessory Bridge
(see instruction
sheet no. 107134)
Detail 3
25
3
Added translations
6070A
6072A
Description
24
Note
position of
locking jaw.
23
