SPX J58T Parts List And Operators Manual

SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
Read and carefully follow the warnings and operating instructions before using this jack. Most problems with new
equipment are caused by improper operation or setup.
NOTE: Inspect the jack upon arrival. The carrier, not the manufacturer, is responsible for any damage
resulting from shipment.
W W A A R R N N I I N N G G : :
● ●
Do not exceed the maximum load capacity of the jack.
● ●
Do not add additional load to a lifted load.
● ●
Do not use in unstable or hazardous positions.
● ●
Unit must be used on flat surfaces able to carry the load.
● ●
Keep clear of lifted loads.
● ●
The load must be stable during lifing. An unstable load may cause the jack or load to slip.
● ●
Do not use the jack(s) if damaged, altered, or in poor condition.
● ●
Do not lift people or loads with people on them.
● ●
This hydraulic jack is for professional use only and should be used only by persons trained in its use.
● ●
Do not lift at the end of the toe. Fully engage the load with the toe.
● ●
Use only Power Team hydraulic fluid in this unit.
● ●
Do NOT, under any circumstances, tamper with the adjustment of the jack's internal relief valve screw. To
do so may cause the jack to fail.
● ●
When lifting by the toe, wedge the head of the jack
on the load to avoid bending the column.
Refer to illustration at right.
● ●
Read operating instructions and A.N.S.I. B30.1
safety code for jacks.
● ●
The owner of the jack must ensure that all safety-
related decals are maintained and replaced as they
become hard to read.
● ●
This guide cannot cover every situation,
so always do the job with safety first.
© 2005 SPX Corporation
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031

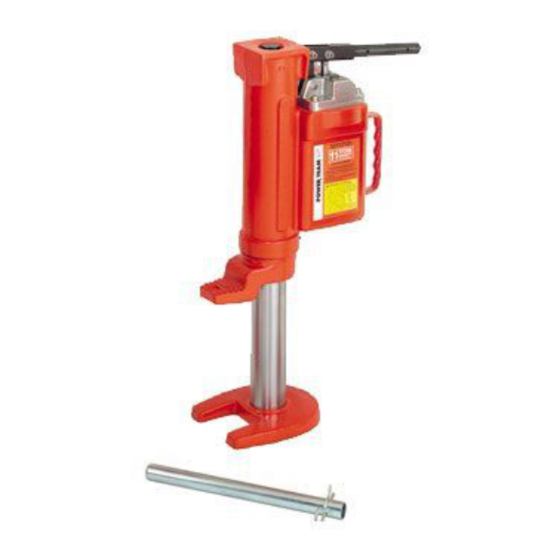

HYDRAULIC TOE JACK
Model J58T Maximum Capacity: 5 Ton
Model J109T Maximum Capacity: 10 Ton

SAFETY PRECAUTIONS

To help prevent personal injury or damage to equipment,
®
Parts List and
Operating Instructions
for:
MODEL B
Form No. 102663
Sheet No. 1 of 4
Rev 5 Date: 20 May 2003
J58T
J109T
