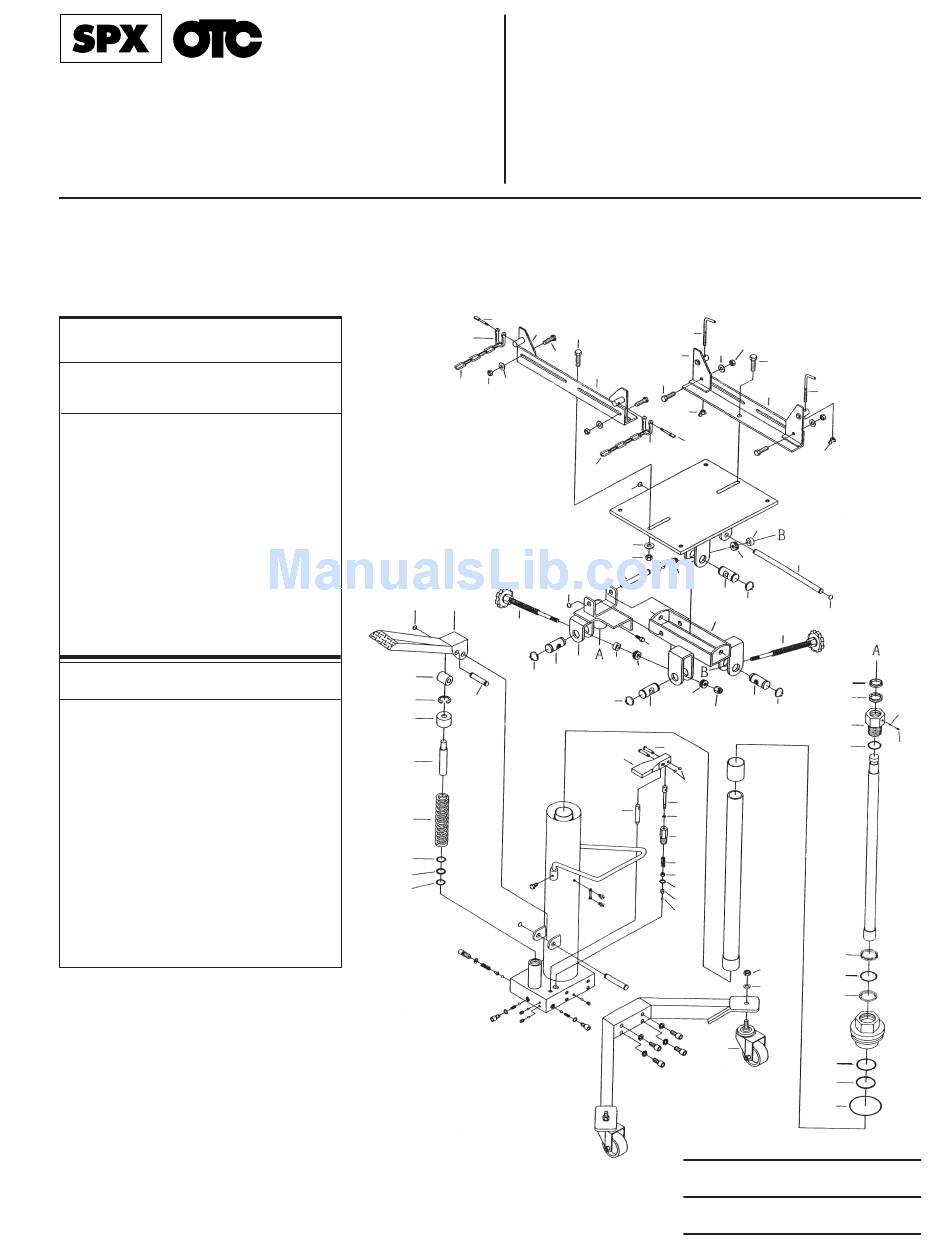

SPX 1793 Operating Instructions

Application: Installation and removal of automobile transmissions
Replacement Items
Item Part Description
No. No.
1 504897 Foot pump
assembly
2 504898 Foot release
assembly
3 504899 Saddle bases
4 504900 Tilt screws
5 504906 Caster
6 504901 Saddle angles
7 504778 Seal kit
Specifications
Capacity 1/2 Ton
Lift Range
Low Height 34"
High Height 70-1/2"
Base Size 33-1/2" x 25"
Saddle Tilt Adjustment
Forward Tilt 24°
Backward Tilt 19°
Left Tilt 20°
Right Tilt 10°
© SPX Corporation
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (507) 455-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063
High Lift Transmission Jack
Max. Capacity: 1,000 lbs.
1
1
1
1
1
1
1
1
1
Parts List &
Operating Instructions
for:
6
6
6
6
6
6
6
6
6
6
4
6
6
4
4
1
4
3 4
4
4
4
1
2
2
Form No. 106463
6
6
6
6
6
6
6 6
6
6
6
6
4
4
4
4
4
4
4
3
4
4
4
4
4
4
4
4
2
2
2
2
2
2
2
2
2
2
5
5
5
Sheet No. 1 of 3
Issue Date: 2-14-02
1793
4
7
7
7
7
7
7
7
7
7
7
7
7
Rev. B
